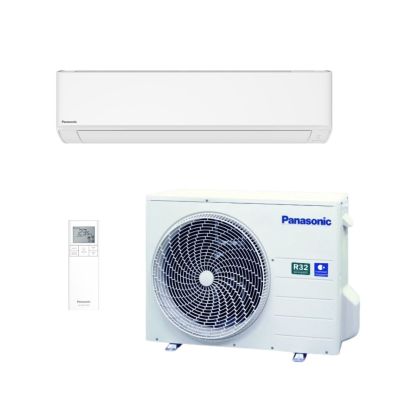

5.0/6.0kW Aero Unit Set
Product code:
5.0/6.0kW Aero Unit Set
Manufacturer code
| Product Group : | Panasonic Highwall Sets |
|---|
General
| Product Group : | Panasonic Highwall Sets |
|---|
Additional Info
| Family : | Aero |
|---|
Capacity
| Nominal Cooling Capacity : | 5.0 kW |
|---|---|
| Nominal Heating Capacity : | 6.0 kW |
Cooling Capacity
| Cooling Capacity (Min/Max) : | 1.15/6.10 kW |
|---|
Electrical
| Power Supply : | 220-240/1/50 V/Ph/Hz |
|---|
Energy Efficiency/Performance
| SCOP : | 3.49 |
|---|---|
| SEER : | 3.31 |
Heating Capacity
| Heating Capacity Min/Max : | 0.98/7.70 kW |
|---|

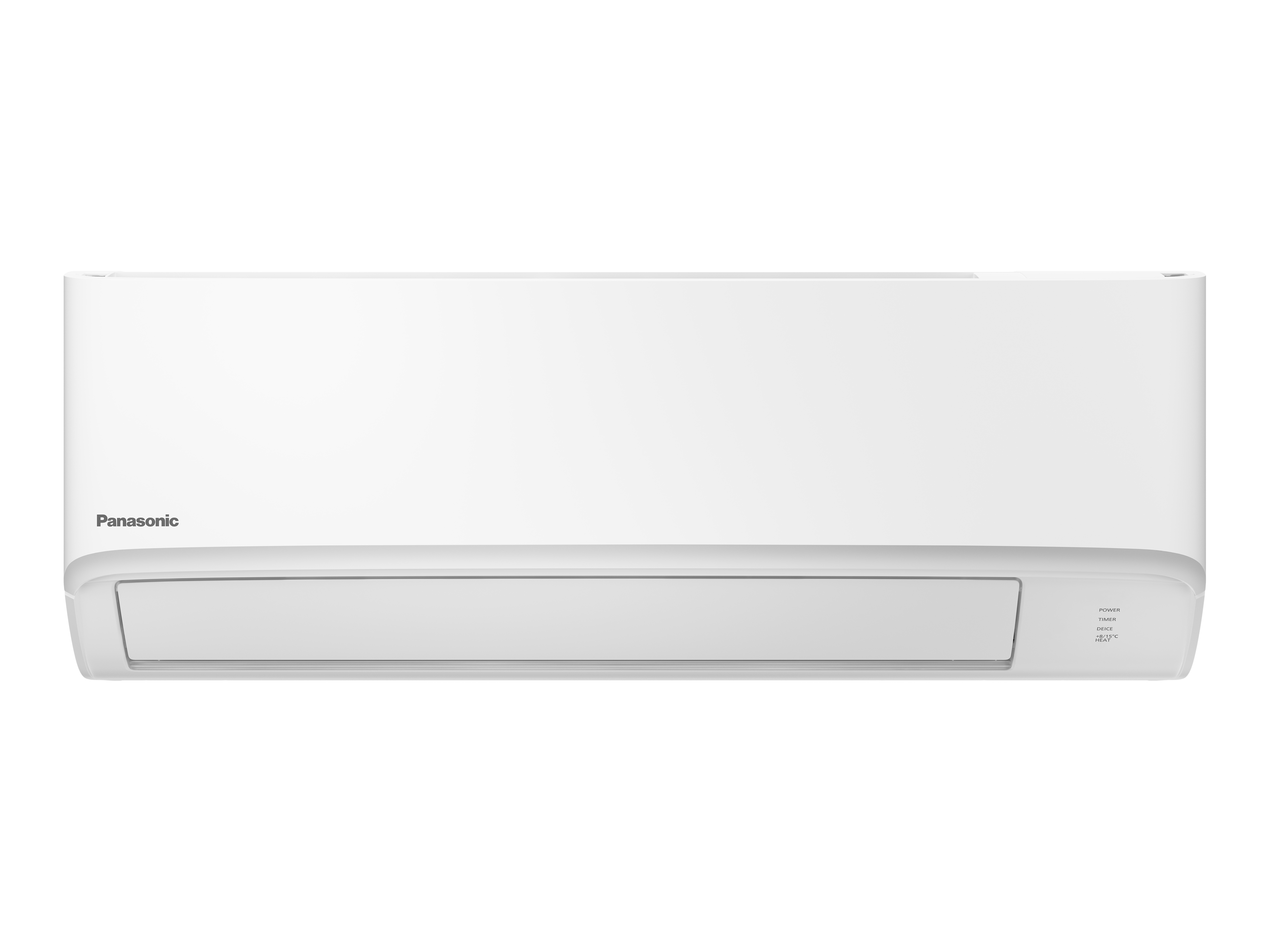

Indoor Unit Attributes
| Depth (IU) : | 209 mm |
|---|---|
| Height (IU) : | 290 mm |
| Weight (IU) : | 8 kg |
| Width (IU) : | 779 mm |

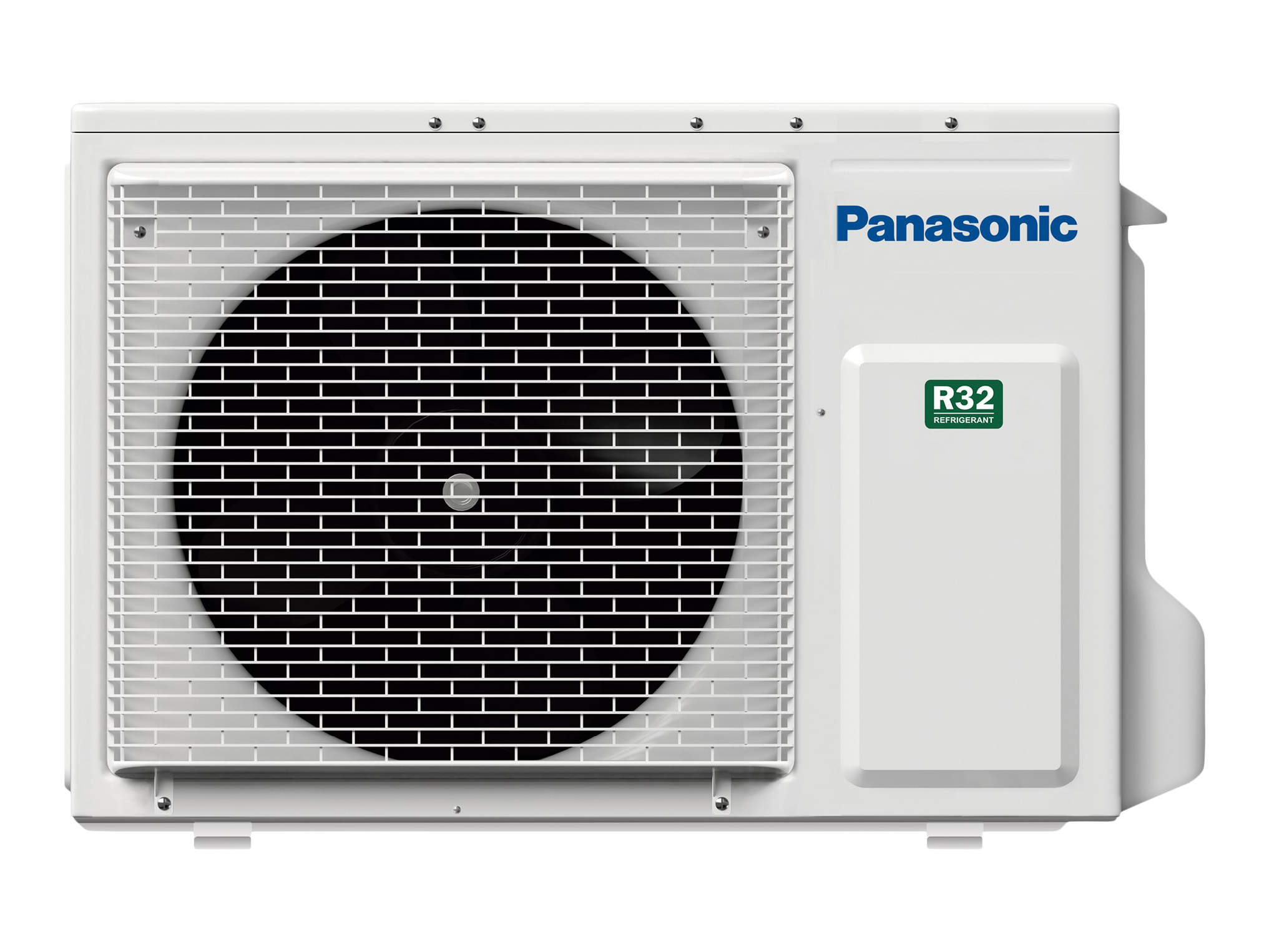

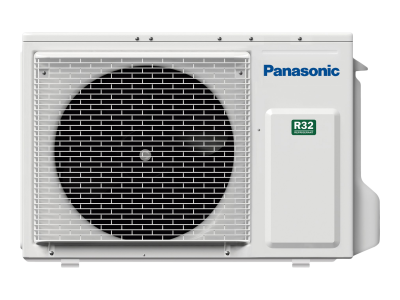

Outdoor Unit Attributes
| Depth (OU) : | 299 mm |
|---|---|
| Height (OU) : | 619 mm |
| Weight (OU) : | 35 kg |
| Width (OU) : | 824 mm |
Pipes
| Max Height Difference : | 15 m |
|---|---|
| Max Pipe Length Without Additional Refrigerant : | 10 m |
| Max Piping Length : | 30 m |
| Pipe Dimension : | 6.35 12.7 mm |
Refrigerant
| Refrigerant : | R32 |
|---|
Product information
Our Aero Series heat pumps use our exclusive nanoe™X technology that actively fights pollutants in the air and on surfaces to effectively inhibit bacteria, viruses and other pollutants such as mould, allergens and strong odours.In addition, Aero Series heat pumps feature built-in Wi-Fi, voice control and app connectivity.Heat, Cool and Purify Your Air
| File name | Extension | Size |
|---|---|---|
| Brochures | 2.52 MB |
SKU Bundle - Component Part
Product number: AC9015/I
Manufacturer number: CS-Z50AKRW
Product number: AC9015/LO
Manufacturer number: CU-Z50AKR-1
