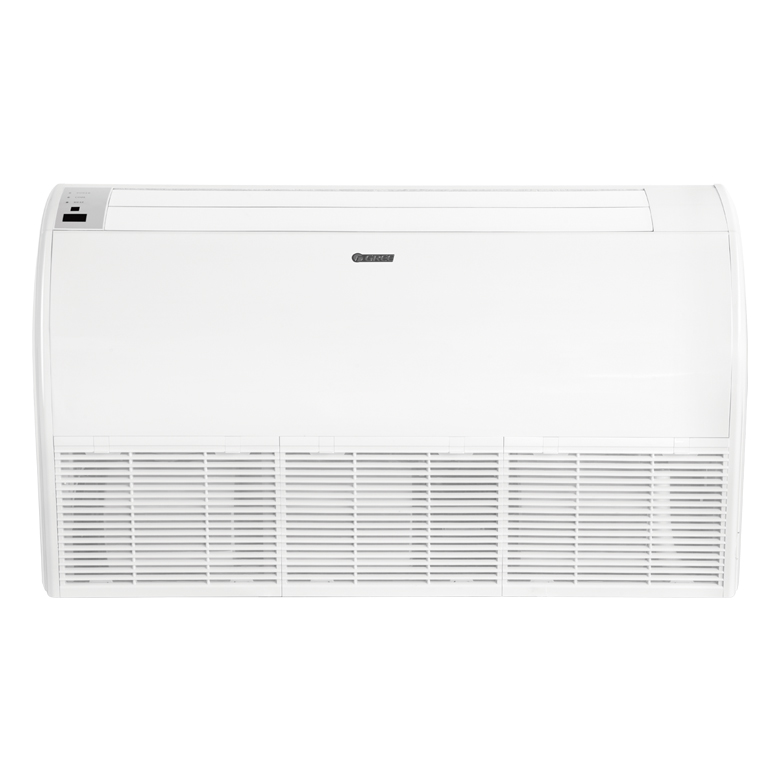

Gree Ceiling 14kW Ind R32
Product code:
AC5854/I
Manufacturer code
GUD140ZDBS
General Information
| Product Group : | Under Ceiling |
|---|---|
| Pre-Equipped Wifi : | Yes |
| Pre Equiped Wifi : | Yes |
| Remote Control : | Yes |
| Remote Control Provided : | Yes |
Additional Info
| Family : | Gree U Match |
|---|---|
| Indoor/ Outdoor/ Other : | Indoor |
| Single Split / Multi Split : | Single Split |
Air Volume/Air Flow
| Air Flow : | 2297 m³/h |
|---|
Cable
| Communication Cable : | 2 x 0.75 |
|---|
Capacity
| Cooling Capacity : | 13.2 kW |
|---|---|
| Cooling Capacity (Min/Max) : | 6.35/16.0 kW |
| Cooling Capacity (Min/Rated/Max) : | 6.35/13.2/16.0 kW |
| Heating Capacity : | 16.0 kW |
| Heating Capacity (Min/Rated/Max) : | 4.5/16.0/17.0 kW |
| Heating Capacity Min/Max : | 4.5/17.0 kW |
Connections
| Drain Connection Size : | 17 mm |
|---|---|
| Pipe Diameter Gas Side : | 15.88 mm |
| Pipe Diameter Liquid Side : | 9.52 mm |
Cooling Capacity R32
| R32 Cooling Capacity Max : | 16.0 kW |
|---|---|
| R32 Cooling Capacity Min : | 6.35 kW |
| R32 Cooling Capacity Rated : | 13.2 kW |
Description
| Short Description : | Gree U Match 14Kw Floor Ceiling Indoor R32 |
|---|
Electrical
| Input (Cooling) : | 4.12 kW |
|---|---|
| Input (Heating) : | 4.3 kW |
| Power Input (Heating/Cooling) : | 4.3/4.12 kW |
| Power Supply : | 230/1/50 V/Ph/Hz |
| Recommended Fuse : | 40 |
Energy Efficiency/Performance
| R32 SCOP : | 3.2 |
|---|---|
| R32 SEER : | 3.72 |
Heating Capacity R32
| R32 Heating Capacity Max : | 17.0 kW |
|---|---|
| R32 Heating Capacity Min : | 4.5 kW |
| R32 Heating Capacity Rated : | 16.0 kW |
Indoor Unit Attributes
| Depth (IU) : | 235 mm |
|---|---|
| Height (IU) : | 665 mm |
| Net Weight (IU) : | 42 kg |
| Weight (IU) : | 42 kg |
| Width (IU) : | 1570 mm |
Measurements
| Depth : | 235 mm |
|---|---|
| Height : | 665 mm |
| Weight : | 42 kg |
| Width : | 1570 mm |
Pipes
| Max Height Difference : | 30 m |
|---|---|
| Max Pipe Length Without Additional Refrigerant : | 20 m |
| Max Pipe Run : | 75 m |
| Pipe Dimension : | 9.52 x 15.88 mm |
Power Input R32
| R32 Power Input Rated Cooling : | 4.12 kW |
|---|---|
| R32 Power Input Rated Heating : | 4.3 kW |
Refrigerant
| Additional Charge : | 35 g/m |
|---|---|
| Refrigerant : | R32 |
| Refrigerant Charge : | 4.1 kg |
| Refrigerant Pipe Size : | 9.52x15.88 mm |
Sound Power/Pressure
| Sound Pressure Level Cooling (High/Medium/Low/Quiet) : | 46/49/51/52 dB(A) |
|---|
Temperature
| Temperature Range Cooling : | -15~52 °C |
|---|---|
| Temperature Range Heating : | -15~24 °C |
Product information
Gree U Match 14Kw Floor Ceiling Indoor R32
