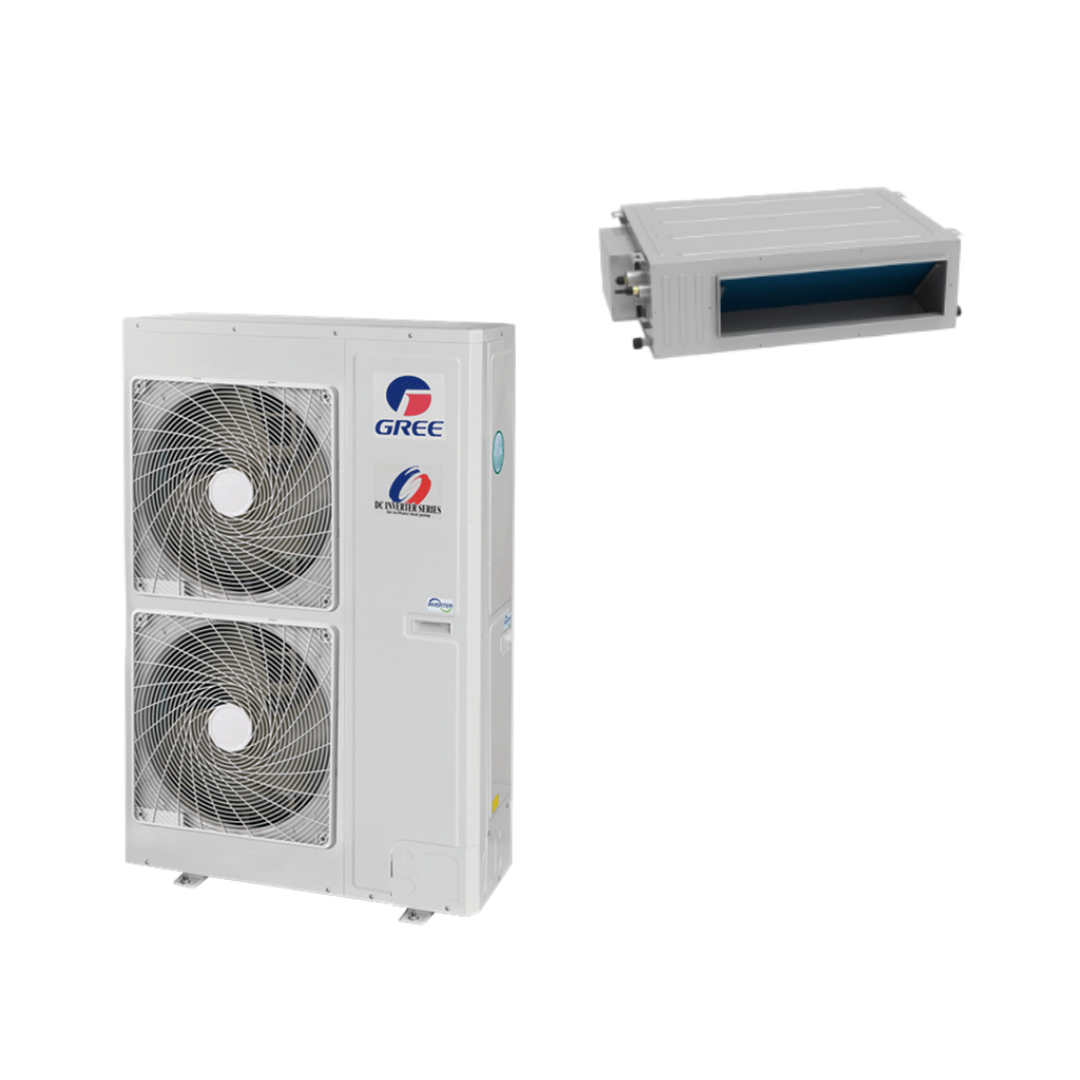

Gree Ducted 14.0kW New Set
Product code:
Gree Ducted 14.0kW New Set
Manufacturer code
| Product Group : | Ducted Sets |
|---|
General
| Product Group : | Ducted Sets |
|---|
Additional Info
| Indoor Units Connectable (Quantity) : | 1 |
|---|---|
| Single Split / Multi Split : | Single |
Air Volume/Air Flow
| Air Flow Cooling (IU) : | 3200 m³/h |
|---|
Capacity
| Nominal Cooling Capacity : | 14.0 kW |
|---|---|
| Nominal Heating Capacity : | 16.0 kW |
Cooling Capacity
| Cooling Capacity (Min/Rated/Max) : | 4.2/14.0/16.0 kW |
|---|
Electrical
| Power Supply : | 220-240/1/50 V/Ph/Hz |
|---|---|
| Recommended Fuse : | 40 A |
Energy Efficiency/Performance
| COP : | 3.83 |
|---|---|
| EER : | 3.49 |
Heating Capacity
| Heating Capacity (Min/Rated/Max) : | 4.8/16.0/17.0 kW |
|---|
Measurements
| Height : | 360 mm |
|---|---|
| Length : | 720 mm |
| Weight : | 60 kg |
| Width : | 1350 mm |
Outdoor Unit Attributes
| Depth (OU) : | 340 mm |
|---|---|
| Height (OU) : | 1260 mm |
| Net Weight (OU) : | 90 kg |
| Width (OU) : | 900 mm |
Pipes
| Max Height Difference : | 30 m |
|---|---|
| Max Piping Length : | 75 m |
| Refrigerant Pipe Size Gas : | 5/8 in |
| Refrigerant Pipe Size Liquid : | 3/8 in |
Refrigerant
| Additional Charge : | 25 g/m |
|---|---|
| Refrigerant : | R32 |
| Refrigerant Charge : | 2.8 kg |
| Refrigerant precharged up to : | 15 m |
Product information
SKU Bundle - Component Part
Product number: AC5754
Manufacturer number: GUD140PHS1/C-S
Product number: AC5744
Manufacturer number: GUD140W1/NhC-S
