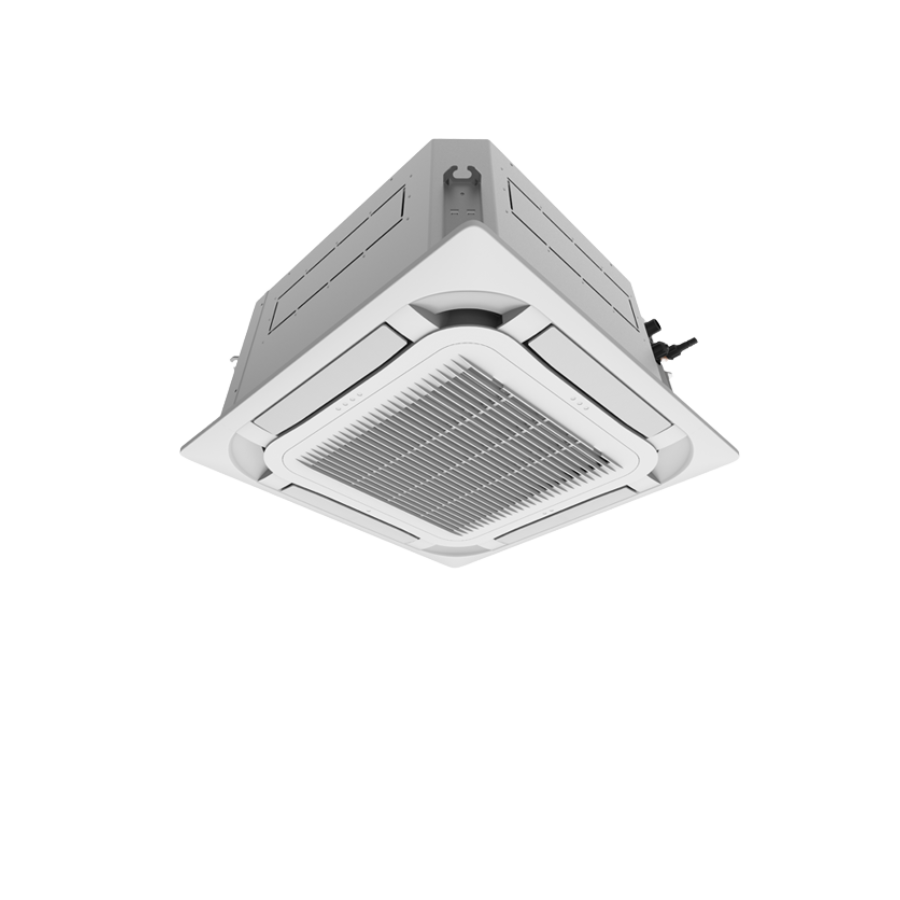

Gree U-Match Cassette VI - 12.5kW - 1Ph - 3/8-5/8
Product code:
AC5763
Manufacturer code
GUD125T1/C-S
| Product Group : | Ceiling cassettes |
|---|
General
| Product Group : | Ceiling cassettes |
|---|
Additional Info
| Indoor/ Outdoor/ Other : | Indoor |
|---|
Air Volume/Air Flow
| Air Flow : | 638 L/s |
|---|
Cable
| Communication Cable : | 3 Core + Earth |
|---|
Capacity
| Nominal Cooling Capacity : | 12.5 kW |
|---|---|
| Nominal Heating Capacity : | 14.0 kW |
Connections
| Pipe Diameter Gas Side : | 15.88 mm |
|---|---|
| Pipe Diameter Liquid Side : | 9.52 mm |
Cooling Capacity
| Cooling Capacity : | 12.5 kW |
|---|---|
| Cooling Capacity (Min/Max) : | 3.6/14.0 kW |
Electrical
| Max Current : | 32 A |
|---|---|
| Power Consumption Cooling : | 3.85 kW |
| Power Consumption Heating : | 4.20 kW |
| Power Supply : | 220-+240/1/50 V/Ph/Hz |
Energy Efficiency/Performance
| COP : | 3.3 |
|---|---|
| EER : | 3.18 |
General Information
| Moisture Removal Volume : | 3.5 L/h |
|---|
Heating Capacity
| Heating Capacity : | 14.0 kW |
|---|---|
| Heating Capacity Min/Max : | 4.2/15.0 kW |
Indoor Unit Attributes
| Depth (IU) : | 840 mm |
|---|---|
| Height (IU) : | 290 mm |
| Net Weight (IU) : | 25 kg |
| Width (IU) : | 840 mm |
Pipes
| Max Height Difference : | 30 m |
|---|---|
| Max Pipe Length Without Additional Refrigerant : | 15 m |
| Max Piping Length : | 75 m |
Refrigerant
| Additional Charge : | 25 g/m |
|---|---|
| Refrigerant : | R32 |
| Refrigerant Charge : | 2.4 kg |
Sound Power/Pressure
| Sound Power Level, Cooling (High) : | 42 dB(A) |
|---|---|
| Sound Power Level, Cooling (Low) : | 39 dB(A) |
Product information
Gree’s new range of U-Match R32 Cassette Heat Pumps incorporates Gree’s latest climate control technology. New compressors, new coil designs, all DC components and dynamic fluid design for greater and quieter airflow. This means a more efficient heat pump, with less intrusion into your home or office
