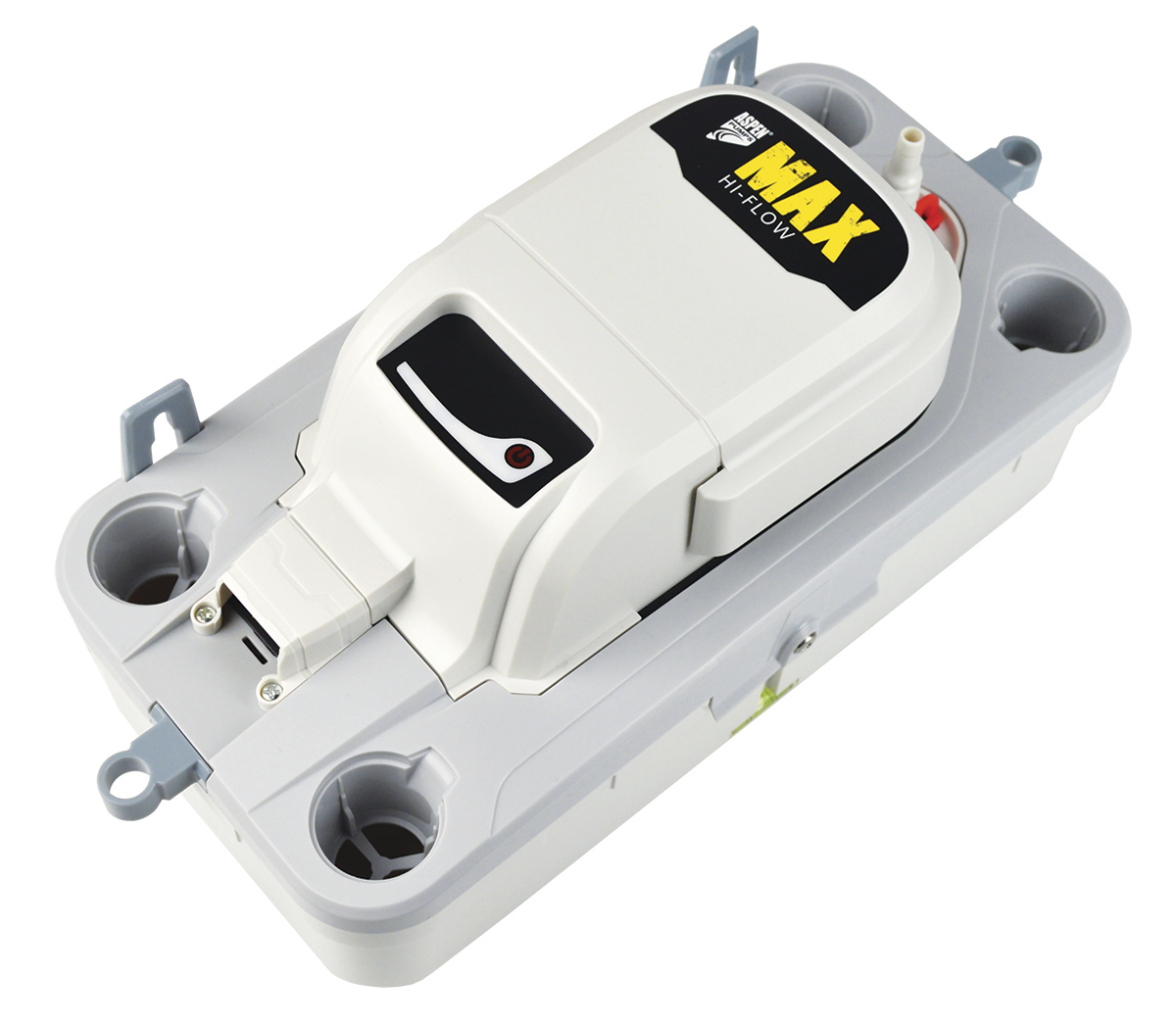

Max High Flow Low Profile Pump
Product code:
T0918
Manufacturer code
FP3349
| Product Group : | Condensate Tank Pumps |
|---|
General
| Product Group : | Condensate Tank Pumps |
|---|
Condensate Pumps
| Flow Rate at 0 m : | 550 L/h |
|---|---|
| Max Discharge Head : | 5 m |
| Max Flow Rate : | 550 L/h |
| Max Water Temperature : | 40 °C |
| Tank Volume : | 1.7 L |
Connections
| Inlet Connection Size : | x4 21–27 mm |
|---|---|
| Outlet Connection Size : | 6 mm, 10 mm |
Electrical
| Current : | 0.8 A |
|---|---|
| Frequency : | 50 Hz |
| IP Class : | IP24 |
| Power Supply : | 230 Vac |
Features
| Thermal Protection : | Yes |
|---|
General Information
| Class : | I |
|---|---|
| Max Lift : | 5 m |
| Model Number : | FP3349 |
| Type : | Condensate water pump |
Logistical Information
| Commodity Code : | 84138100 |
|---|---|
| Country Of Origin : | DEU |
| HS Code : | FP3349 |
Measurements
| Depth : | 285 mm |
|---|---|
| Height : | 134 mm |
| Maximum Head : | 5 m |
| Width : | 144 mm |
Pressure
| Water Flow Pressure : | 550 L/h |
|---|
Refrigerant
| Rated : | Non Continuous |
|---|
Sound Power/Pressure
| Pump Sound Level In App : | 44 dB(A) |
|---|---|
| Sound Pressure Level : | 44 dB(A) |
Switch
| Safety Switch : | Yes |
|---|
Temperature
| Max Condensate Temperature : | 40 °C |
|---|
Product information
Max Hi-Flow is the quietest and safest pump in its class.
• IP24 - splash proof
• Easy access to the tank
• Built-in spirit level
• Plug & play
• IP24 - splash proof
• Easy access to the tank
• Built-in spirit level
• Plug & play
