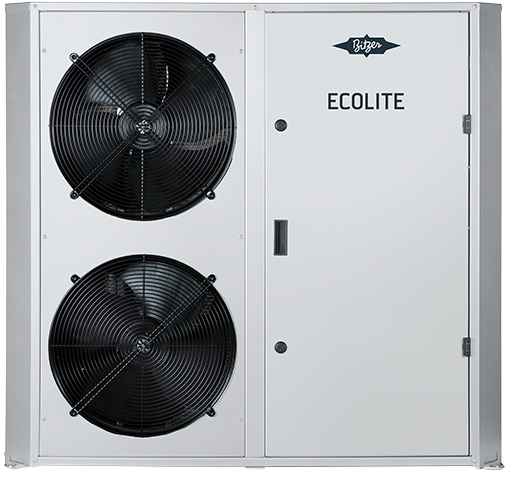

Bitzer Ecolite A2L Condensing Unit LHL5E/4CES-6Y c/w OLC-K1 low level oil switch 6HP
Product code:
BZCU28-201
Manufacturer code
LHL5E/4CES-6Y
| Product Group : | SPECIALS CAPITAL EQUIPMENT |
|---|
General
| Product Group : | SPECIALS CAPITAL EQUIPMENT |
|---|
Additional Info
| Family : | Ecolite |
|---|
Application
| Application : | LBP/MBP |
|---|
Compressor
| Compressor Model : | 4CES-6 |
|---|---|
| Compressor Type : | Semi Hermetic |
| Displacement at 50Hz : | 32.5 m³/h |
| Power Supply Compressor : | 400/3/50 V/Ph/Hz |
Connections
| Liquid Line Connection : | 5/8 in, 16 mm |
|---|---|
| Suction Line Connection : | 1 1/8 in, 28 mm |
Electrical
| LRA : | 82.4 A |
|---|---|
| MCC : | 17.7 A |
| Power Supply : | 400/3/50 V/Ph/Hz |
| RLA : | 18.3 A |
Fan
| Fan Blade Size : | 450 mm |
|---|---|
| Fan Diameter : | 450 mm |
| Fan Size : | 450 mm |
| Number Of Fans : | 2 |
| Power Supply Fan : | 230/1/50 V/Ph/Hz |
General Information
| Model Number : | LHL5E-4CES-6Y |
|---|---|
| Receiver Volume : | 15 L |
Measurements
| Height : | 1230 mm |
|---|---|
| Length : | 450 mm |
| Net Weight : | 210 kg |
| Weight : | 210 kg |
| Width : | 1300 mm |
R404A Performances
| R404A Capacity -5°C : | 18.4 kW |
|---|
R448A Performances
| R448A Cooling Capacity Rated -5°C : | 17.68 kW |
|---|---|
| R448A Cooling Capacity Rated -25°C : | 7.410 kW |
R513A Performances
| R513A Cooling Capacity Rated -5°C : | 13.08 kW |
|---|
Refrigerant
| Refrigerant : | R134a, R407A, R407C, R407F, R448A, R449A, R450A, R454C, R455A, R513A, R1234yf |
|---|
Sound Power/Pressure
| Sound Pressure Level 50 Hz 10m : | 43.5 dB(A) |
|---|
Product information
ECOLITE condensing units are the right choice for flexibility, adaptability and sustainability. Each of the seven models can be used for various refrigerants like the A2L category with a GWP of below 150. All of them are suitable for different low and medium temperature applications in all climate zones – for example in cold stores, petrol stations and corner shops
