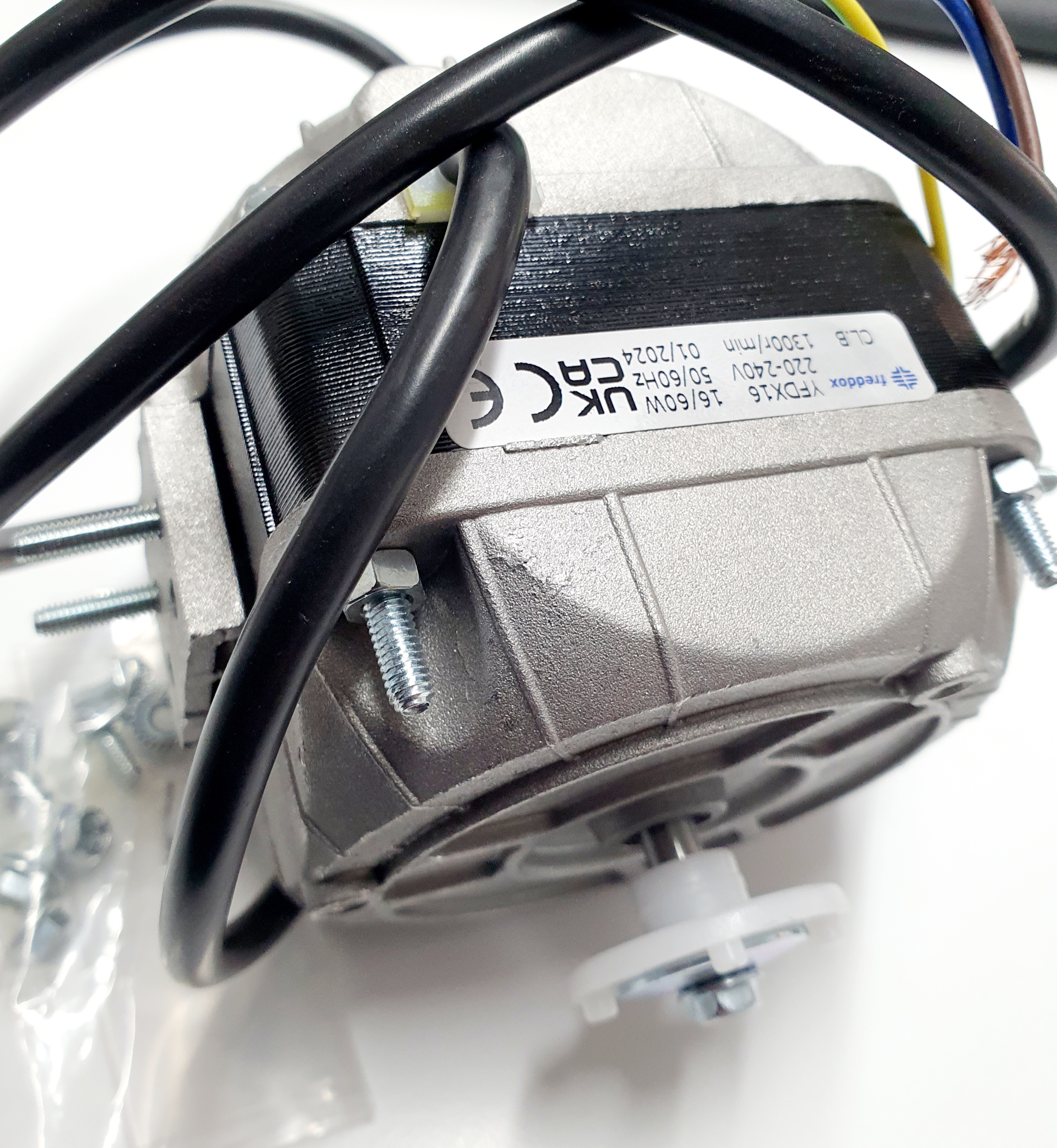

FREDDOX MULTIFIXING MOTOR 16W
Product code:
D0124FD
Manufacturer code
YFDX16
| Product Group : | Shaded pole Motors |
|---|
General
| Product Group : | Shaded pole Motors |
|---|
Cable
| Cable Length : | 100 cm |
|---|
Electrical
| Amp : | 0.45 A |
|---|---|
| Frequency : | 50/60 Hz |
| IP Class : | IP42 |
| Input Voltage : | 220 - 240 V |
| Power Input : | 60 W |
| Watt : | 16 W |
Fan
| Disc Shape : | Round |
|---|---|
| Fan Blade Size : | 254 mm |
| Fan Speed : | 1300 r/min |
| Shaft Length : | 14 mm |
Flanges
| Output Flange Dimension : | 25.4 mm |
|---|
General Information
| Model Number : | YFDX16 |
|---|---|
| Rotation Direction : | CCW |
Measurements
| Depth : | 92 mm |
|---|---|
| Diameter : | 83 mm |
| Height : | 99 mm |
| Length : | 83 mm |
| Net Weight : | 1.4 kg |
Motor
| Bearing Type : | Sleeve bearing |
|---|
Mounting
| Mounting Details : | Horizontal or Vertical |
|---|---|
| Mounting Method : | Bracket or Grille Type |
Temperature
| Operating Temperature Range : | -25-50 °C |
|---|---|
| Temperature Application : | -25 to 50 C |
Product information
Shaded Pole Motor
| File name | Extension | Size |
|---|---|---|
| Brochures | 107.56 KB |
| Product Number | Manufacturer product number | Technical data | Price | Availability |
|---|---|---|---|---|
|
8668594
|
Tecumseh Fan Motor Assembly 365mm 230v 50hz 120w
|
Available after log in
|
Available after log in
|
|
|
134-8554LTB-A80
|
180W MOTOR 1/2 SHAFT
|
Available after log in
|
Available after log in
|
|
|
M4Q045CA0338A01-CTN
|
FAN MOTOR 10W 220V
|
Available after log in
|
Available after log in
|
|
|
M4Q045CF0138-CTN
|
FAN MOTOR 16W 220V
|
Available after log in
|
Available after log in
|
|
|
M4Q045EA0138CTN
|
FAN MOTOR 25W 220V
|
Available after log in
|
Available after log in
|
|
|
M4Q045EF0138-CTN
|
FAN MOTOR 34WATT, 240V 50HZ
|
Available after log in
|
Available after log in
|
|
|
KJA2C4704
|
MOTOR FAN KU 7W HUB-DRIVE
|
Available after log in
|
Available after log in
|
|
|
KJE2F4003
|
MOTOR FAN KU 40W
|
Available after log in
|
Available after log in
|
|
|
KJB2M4702
|
MOTOR FAN KEC 13W HUB-DRIVE
|
Available after log in
|
Available after log in
|
|
|
KJB2S4701
|
MOTOR FAN KEC 28W HUB-DRIVE
|
Available after log in
|
Available after log in
|
|
|
133-J05RF-11
|
879-83241W FAN MOTOR
|
Available after log in
|
Available after log in
|
|
|
YFDX10
|

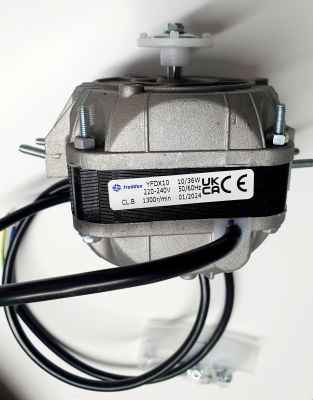

FREDDOX MULTIFIXING MOTOR 10W GEN.2
|
Available after log in
|
Available after log in
|
|
|
YFDX25
|

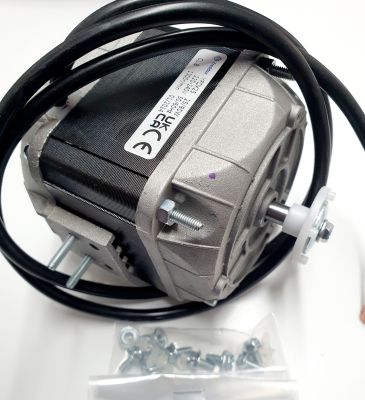

FREDDOX MULTIFIXING MOTOR 25W GEN.2
|
Available after log in
|
Available after log in
|
|
|
YFDX34
|

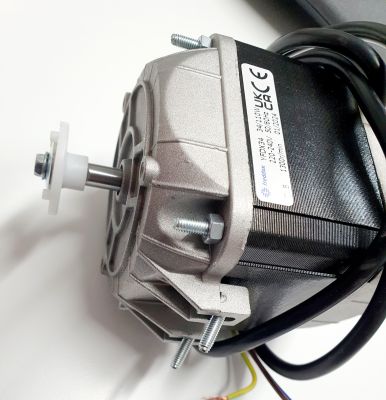

FREDDOX MULTIFIXING MOTOR 34W GEN.2
|
