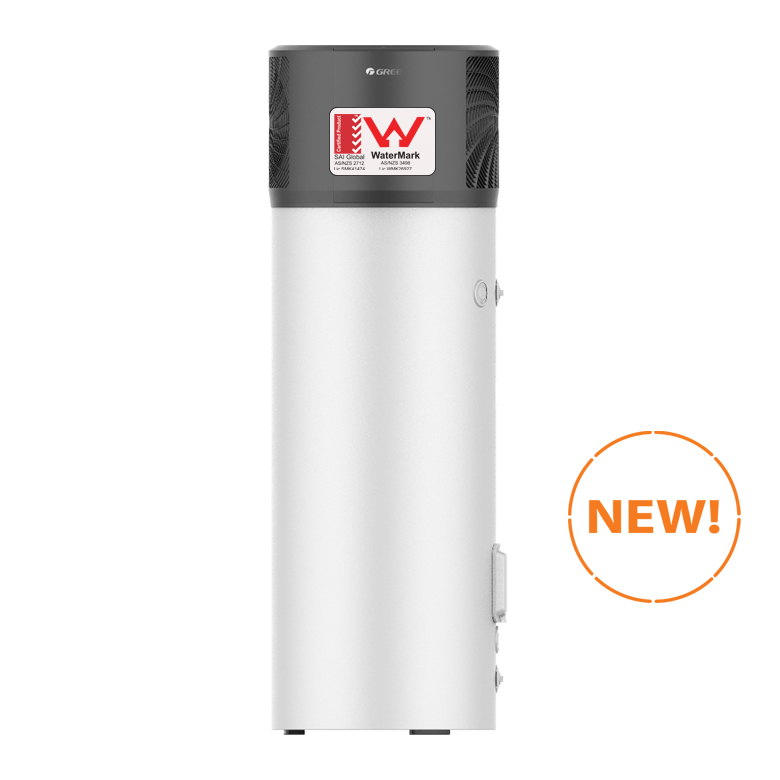

Gree WHIO TD270 HWHP
Product code:
AC7727
Manufacturer code
GRS-2.3Pd/TD270ANpHK
| Product Group : | Hot water heat pumps |
|---|
General
| Product Group : | Hot water heat pumps |
|---|
Additional Info
| Additional Info : | WHIO |
|---|
Capacity
| Capacity : | 2300 W |
|---|
Compressor
| Number Of Compressors : | 1 |
|---|
Connections
| Inlet Connection Size : | 15 mm |
|---|---|
| Outlet Connection Size : | 15 mm |
Electrical
| Fuse Protection : | 16 A |
|---|---|
| Input (Heating) : | 0.83 kW |
| Power Input (Heating/Cooling) : | 0.83 + 2.0 kW (Electric boost element) kW |
| Power Supply : | 220-240/1/50 V/Ph/Hz |
| Recommended Fuse : | 16 A |
Energy Efficiency/Performance
| COP : | 5.46 |
|---|
General Information
| Heat Exchanger Tank Capacity : | 270 L |
|---|
Measurements
| Depth : | 663 mm |
|---|---|
| Height : | 1947 mm |
| Weight : | 109 kg |
| Width : | 668 mm |
PMCB
| Number Of Elements : | 1 |
|---|
Refrigerant
| GWP : | 3 |
|---|---|
| Refrigerant : | R290 |
| Refrigerant Charge : | 0.33 kg |
Sound Power/Pressure
| Sound Power Level : | 54 dB(A) |
|---|---|
| Sound Pressure Level : | 44 dB(A) |
Temperature
| Flow Water Temp Range Heating : | 35-70 °C |
|---|
Product information
Welcome to the future of hot water heating! Our state-of-the-art hot water heat pump is designed to provide you with unparalleled efficiency, reliability, and comfort.The Gree WHIO Hot Water Heat Pump utilizes R290 environmentally friendly refrigerant, inverter technology and an external microchannel heat exchanger to heat water to 70°C without the need of a booster element.The water tank comes in two sizes, 200 and 270 liters and these tanks are corrosion protected by crystal titanium enamel in blue and are tested for acid resistance and anti corrosion for 1080 hours.With heating power of 2.3kW*, while using just 0.426kW of energy, the Gree Integrated Hot Water Heat Pump offers class leading energy efficiency, and a COP of 5.40.So, whether you are looking to upgrade your current system or install a new one, the WHIO hot water heat pump is the perfect solution for your home or business. *Test conditions, Outdoor ambient 20/15°C (DB/WB), Water temp from 10°C to 55°
| File name | Extension | Size |
|---|---|---|
| Owners Manual | 4.08 MB | |
| Brochures | 3.53 MB |
