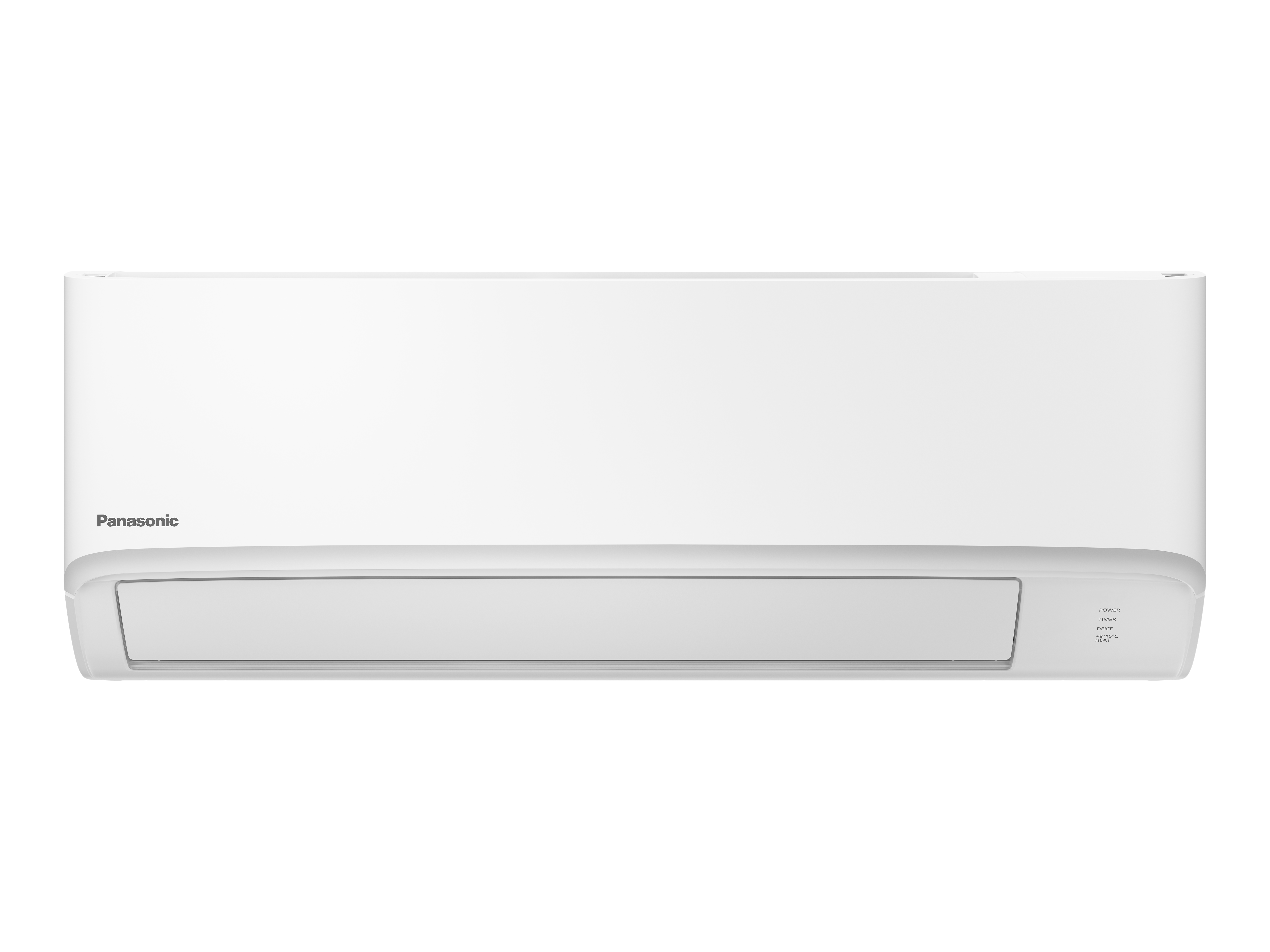

5.0/6.0kW Aero Indoor Unit (1/4 / 1/2)
Product code:
AC9015/I
Manufacturer code
CS-Z50AKRW
| Product Group : | Panasonic High Walls |
|---|
General
| Product Group : | Panasonic High Walls |
|---|
Additional Info
| Family : | Aero |
|---|---|
| Indoor/ Outdoor/ Other : | Indoor |
| Indoor Units Connectable (Quantity) : | 1 |
| Single Split / Multi Split : | Single |
Air Volume/Air Flow
| Air Flow : | 228 L/s |
|---|
Connections
| Pipe Diameter Gas Side : | 12.70 mm |
|---|---|
| Pipe Diameter Liquid Side : | 6.35 mm |
Cooling Capacity
| Cooling Capacity : | 5.00 kW |
|---|---|
| Cooling Capacity (Min/Max) : | 1.15/6.10 kW |
Electrical
| Current (Cooling) : | 6.5 A |
|---|---|
| Current (Heating) : | 7.30 A |
| Max Current : | 11.0 A |
| Voltage : | 220-240/1/50 V/Ph/Hz |
Energy Efficiency/Performance
| COP : | 3.49 |
|---|---|
| EER : | 3.31 |
General Information
| Remote Control Provided : | Yes |
|---|
Heating Capacity
| Heating Capacity : | 6.00 kW |
|---|---|
| Heating Capacity (Min/Rated/Max) : | 0.98/6.00/7.70 kW |
Indoor Unit Attributes
| Depth (IU) : | 209 mm |
|---|---|
| Height (IU) : | 290 mm |
| Weight (IU) : | 8 kg |
| Width (IU) : | 779 mm |
Pipes
| Max Height Difference : | 15 m |
|---|---|
| Max Pipe Length Without Additional Refrigerant : | 10 m |
| Max Pipe Run : | 30 m |
Refrigerant
| Additional Charge : | 15 kg |
|---|---|
| Refrigerant : | R32 |
