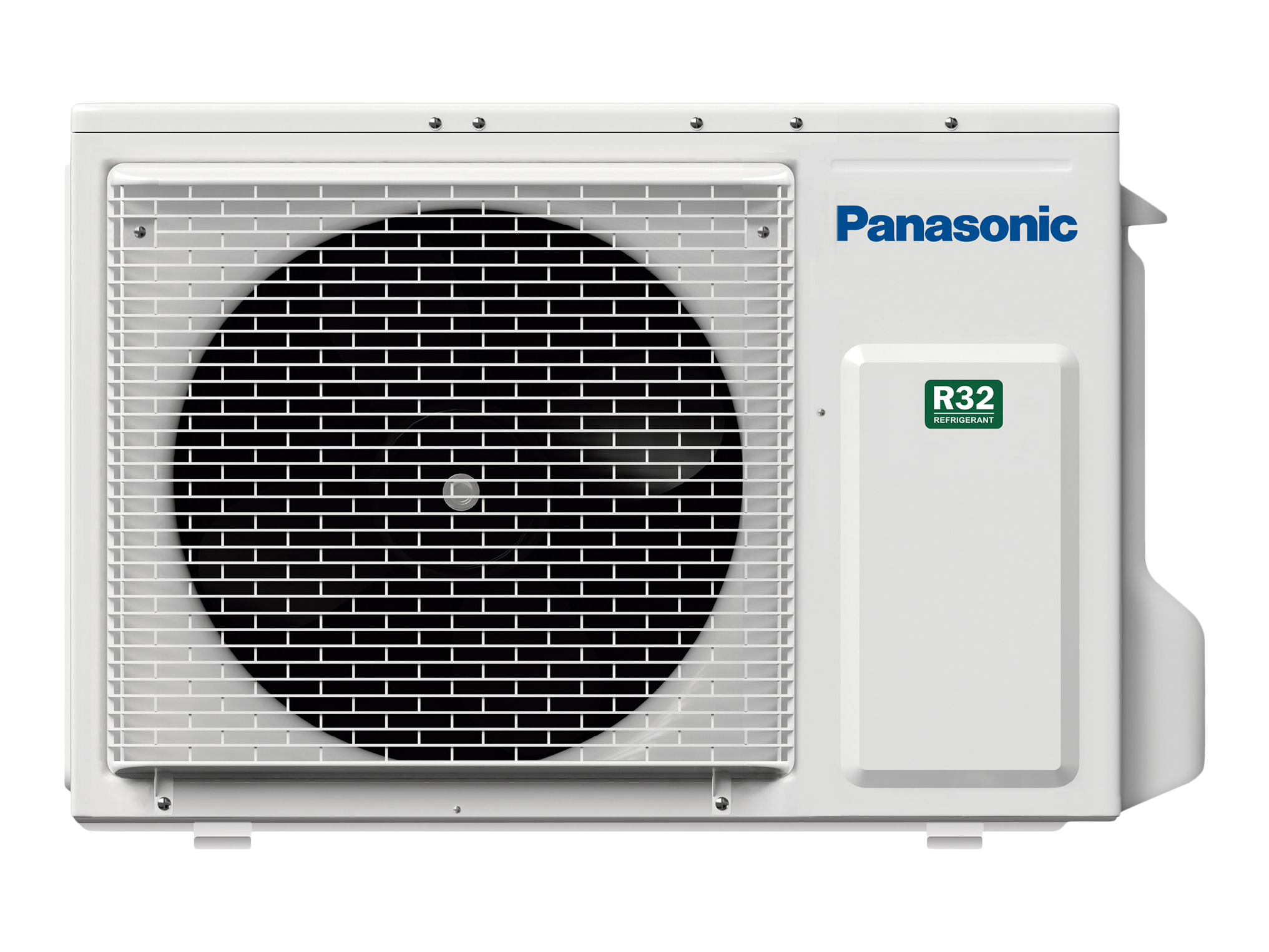

5.0/6.0kW Aero Outdoor Unit Large Chassis
Product code:
AC9015/LO
Manufacturer code
CU-Z50AKR-1
| Product Group : | Panasonic High Walls |
|---|
General
| Product Group : | Panasonic High Walls |
|---|
Additional Info
| Family : | Aero |
|---|---|
| Indoor/ Outdoor/ Other : | Outdoor |
| Indoor Units Connectable (Quantity) : | 1 |
| Single Split / Multi Split : | Single |
Connections
| Pipe Diameter Gas Side : | 1/2 in |
|---|---|
| Pipe Diameter Liquid Side : | 1/4 in |
Cooling Capacity
| Cooling Capacity : | 5.0 kW |
|---|---|
| Cooling Capacity (Min/Max) : | 1.25/6.75 kW |
Electrical
| Current (Cooling) : | 5.60 A |
|---|---|
| Current (Heating) : | 6.10 A |
| Max Current : | 10.8 A |
| Voltage : | 220-240/1/50 V/Ph/Hz |
Energy Efficiency/Performance
| COP : | 3.82 |
|---|---|
| EER : | 4.23 |
Heating Capacity
| Heating Capacity : | 6.00 kW |
|---|---|
| Heating Capacity (Min/Rated/Max) : | 1.10/6.00/8.00 kW |
Outdoor Unit Attributes
| Depth (OU) : | 299 mm |
|---|---|
| Height (OU) : | 619 mm |
| Weight (OU) : | 35 kg |
| Width (OU) : | 824 mm |
Pipes
| Chargeless Piping Length : | 10.0 m |
|---|---|
| Max Height Difference : | 15 m |
| Max Pipe Run : | 30 m |
Refrigerant
| Additional Charge : | 15 g/m |
|---|---|
| Refrigerant : | R32 |
Product information
| Product Number | Manufacturer product number | Technical data | Price | Availability |
|---|---|---|---|---|
|
CS-Z20AKRW
|

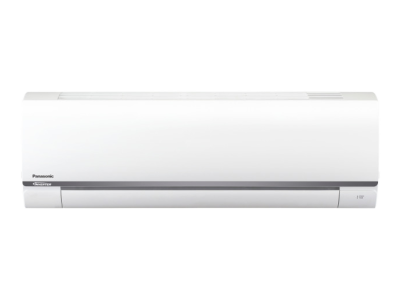

2.0/2.8kW Aero Indoor Unit (1/4 / 3/8)
|
Available after log in
|
Available after log in
|
|
|
CU-Z20AKR
|
2.0/2.8kW Aero Outdoor Unit
|
Available after log in
|
Available after log in
|
|
|
CS-Z25AKRW-1
|
2.5/3.2kW Aero Indoor Unit (1/4 / 3/8)
|
Available after log in
|
Available after log in
|
|
|
CU-Z25AKR-1
|
2.5/3.2kW Aero Outdoor Unit
|
Available after log in
|
Available after log in
|
|
|
CS-Z35AKRW
|
3.5/4.0kW Aero Indoor Unit (1/4 / 3/8)
|
Available after log in
|
Available after log in
|
|
|
CS-Z42AKRW
|
4.2/5.1kW Aero Indoor Unit (1/4 / 1/2)
|
Available after log in
|
Available after log in
|
|
|
CS-Z50AKRW
|
5.0/6.0kW Aero Indoor Unit (1/4 / 1/2)
|
Available after log in
|
Available after log in
|
|
|
CS-Z50AKRW-1
|
5.0/6.0kW Aero Indoor Unit Large Chassis (1/4 / 1/2)
|
Available after log in
|
Available after log in
|
|
|
CU-Z50AKR-1
|
5.0/6.0kW Aero Outdoor Unit Large Chassis
|
Available after log in
|
Available after log in
|
|
|
CS-Z60AKRW-1
|

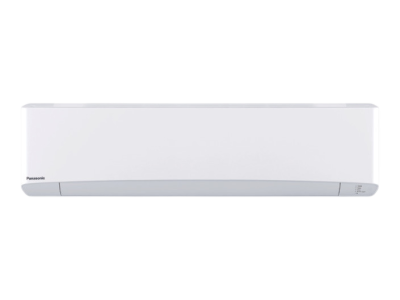

6.0/7.2kW Aero Indoor Unit (1/4 / 1/2)
|
Available after log in
|
Available after log in
|
|
|
CU-Z60AKR-1
|
6.0/7.2kW Aero Outdoor Unit
|
Available after log in
|
Available after log in
|
|
|
CS-Z71AKRW
|
7.1/8.0kW Aero Indoor Unit (1/4 / 5/8)
|
Available after log in
|
Available after log in
|
|
|
CS-Z80YKR
|
8.0/9.0kW Aero Indoor Unit (1/4 / 5/8)
|
Available after log in
|
Available after log in
|
|
|
CU-Z80YKR
|
8.0/9.0kW Aero Outdoor Unit 1/4 x 5/8
|
Available after log in
|
Available after log in
|
|
|
CS-RZ25AKRW
|
2.5/3.0kW Developer Indoor Unit (1/4 / 3/8)
|
Available after log in
|
Available after log in
|
|
|
CS-RZ35AKRW
|
3.5/4.0kW Developer Indoor Unit (1/4 / 3/8)
|
Available after log in
|
Available after log in
|
|
|
CS-RZ42AKRW
|
4.2/5.1kW Developer Indoor Unit (1/4 / 1/2)
|
Available after log in
|
Available after log in
|
|
|
CS-RZ50AKRW
|
5.0/6.0kW Developer Indoor Unit (1/4 / 1/2)
|
Available after log in
|
Available after log in
|
|
|
CS-RZ60AKRW
|
6.0/6.5kW Developer Indoor Unit (1/4 / 1/2)
|
Available after log in
|
Available after log in
|
|
|
CS-RZ71AKRW
|
7.1/8.0kW Developer Indoor Unit (1/4 / 5/8)
|
Available after log in
|
Available after log in
|
|
|
CU-RZ25AKR
|
Panasonic 2.5 kW RZ Series OD R32 Developer
|
Available after log in
|
Available after log in
|
|
|
CU-RZ35AKR
|
Panasonic 3.5 kW RZ Series OD R32 Developer
|
Available after log in
|
Available after log in
|
|
|
CU-RZ42AKR
|
Panasonic 4.2 kW RZ Series OD R32 Developer
|
Available after log in
|
Available after log in
|
|
|
CU-RZ50AKR
|
Panasonic 5 kW RZ Series OD R32 Developer
|
Available after log in
|
Available after log in
|
|
|
CU-RZ60AKR
|
Panasonic 6 kW RZ Series OD R32 Developer
|
Available after log in
|
Available after log in
|
|
|
CU-RZ71AKR
|
Panasonic 7.1 kW RZ Series OD R32 Developer
|
Available after log in
|
Available after log in
|
|
|
CU-RZ95AKR
|
Panasonic 9.5Kw RZ Series OD R32 Developer
|
Available after log in
|
Available after log in
|
|
|
CU-RZ80YKR
|
8.0 kW Inverter Reverse Cycle - R32 OD Developer
|
Available after log in
|
Available after log in
|
|
|
CS-Z95AKR
|
9.5/10.3kW Aero Indoor Unit (1/4 / 5/8)
|
Available after log in
|
Available after log in
|
|
|
CS-RZ95AKR
|
9.5/10.3kW Developer Indoor Unit (1/4 / 5/8)
|
Available after log in
|
Available after log in
|
|
|
CS-RZ80YKR
|
8.0/9.0kW Developer Indoor Unit (1/4 / 5/8)
|
Available after log in
|
Available after log in
|
|
|
CU-Z95AKR
|

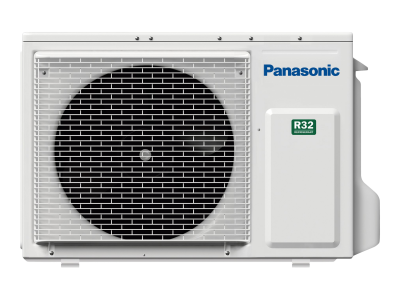

Panasonic Aero Outdoor Unit R32 9.5kW
|
