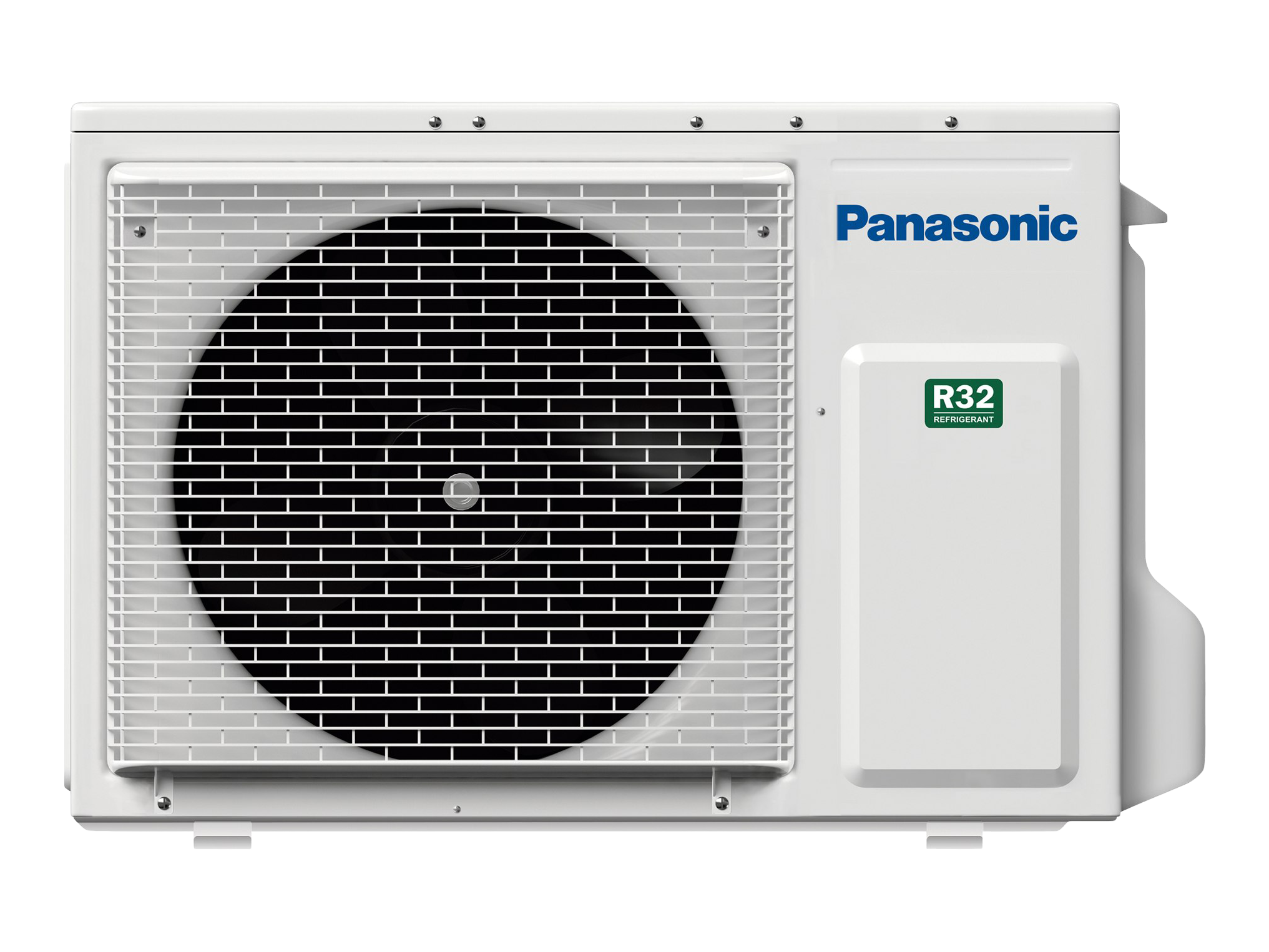

Panasonic Aero Outdoor Unit R32 9.5kW
Product code:
AC9019/O
Manufacturer code
CU-Z95AKR
This product requires F-Gas certificate
| Product Group : | Panasonic High Walls |
|---|
General
| Product Group : | Panasonic High Walls |
|---|
Additional Info
| Family : | Aero |
|---|---|
| Indoor/ Outdoor/ Other : | Outdoor |
| Indoor Units Connectable (Quantity) : | 1 |
| Single Split / Multi Split : | Single |
Cooling Capacity
| Cooling Capacity : | 9.50 kW |
|---|
Electrical
| Max Current : | 16.60 A |
|---|---|
| Power Supply : | 240/1/50 V/Ph/Hz |
Energy Efficiency/Performance
| COP : | 3.71 |
|---|---|
| EER : | 3.35 |
Fan
| Number Of Fans : | 1 |
|---|
Heating Capacity
| Heating Capacity : | 10.3 kW |
|---|
Outdoor Unit Attributes
| Depth (OU) : | 320 mm |
|---|---|
| Height (OU) : | 795 mm |
| Weight (OU) : | 55 kg |
| Width (OU) : | 875 mm |
Pipes
| Chargeless Piping Length : | 10 m |
|---|---|
| Max Height Difference : | 20 m |
| Max Pipe Run : | 30 m |
Refrigerant
| Additional Charge : | 25 g/m |
|---|---|
| Refrigerant : | R32 |
| Refrigerant Pipe Size : | 1/4 - 5/8 in |
Temperature
| Temperature Range Cooling : | -10°C ~ 46 °C |
|---|---|
| Temperature Range Heating : | -15°C ~ 24 °C |
