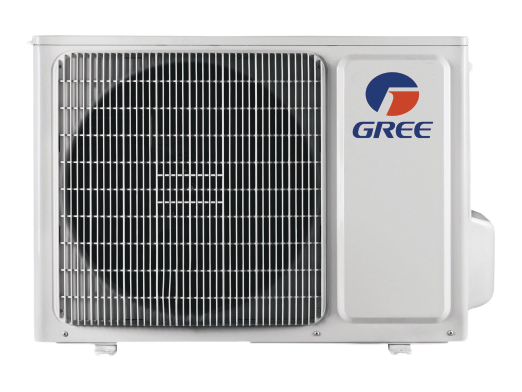

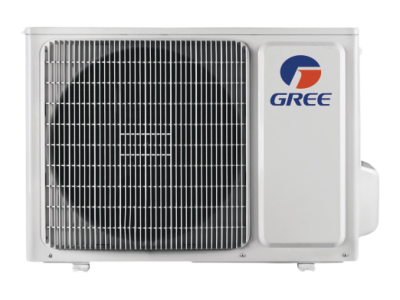

Gree R32 Freematch 12.3kW Outdoor
Product code:
AC5665
Manufacturer code
GWHD(42)NK6PO
| Product Group : | Freematch Outdoor Units |
|---|
General
| Product Group : | Freematch Outdoor Units |
|---|
Additional Info
| Family : | Freematch |
|---|---|
| Indoor/ Outdoor/ Other : | Outdoor |
| Indoor Units Connectable (Quantity) : | 5 |
| Single Split / Multi Split : | Multi |
Air Volume/Air Flow
| Air Flow : | 5800 m³/h |
|---|
Connections
| Connection Size : | 6. mm |
|---|---|
| Connection Size 2 : | 9.52 mm |
Cooling Capacity
| Cooling Capacity : | 12.3 kW |
|---|
Electrical
| Current (Cooling) : | 3.1 A |
|---|---|
| Current (Heating) : | 3.2 A |
| Recommended Fuse : | 30 A |
| Voltage : | 220-240/1/50 V/Ph/Hz |
Energy Efficiency/Performance
| COP : | 3.89 |
|---|---|
| EER : | 3.92 |
Fan
| Number Of Fans : | 1 |
|---|
Heating Capacity
| Heating Capacity : | 12.6 kW |
|---|
Measurements
| Depth : | 427 mm |
|---|---|
| Height : | 826 mm |
| Net Weight : | 73 kg |
| Width : | 1020 mm |
Outdoor Unit Attributes
| Sound Power Level Cooling (OU) : | 72 dB(A) |
|---|---|
| Sound Power Level Heating (OU) : | 74 dB(A) |
| Sound Pressure Level (OU) : | 60 dB(A) |
Pipes
| Chargeless Piping Length : | 50 m |
|---|---|
| Max Height Difference : | 25 m |
| Max Pipe Length Without Additional Refrigerant : | 50 m |
| Max Piping Length : | 100 m |
Refrigerant
| Additional Charge : | 20 g/m |
|---|---|
| Refrigerant : | R32 |
| Refrigerant Charge : | 2.4 kg |
Temperature
| Outdoor Operating Temp. Range (Cooling) : | -15/52 °C |
|---|---|
| Outdoor Operating Temp. Range (Heating) : | -22/24 °C |
Product information
| File name | Extension | Size |
|---|---|---|
| Brochures | 11.18 MB |
| Product Number | Manufacturer product number | Technical data | Price | Availability |
|---|---|---|---|---|
|
GWHD(18)NK6PO
|

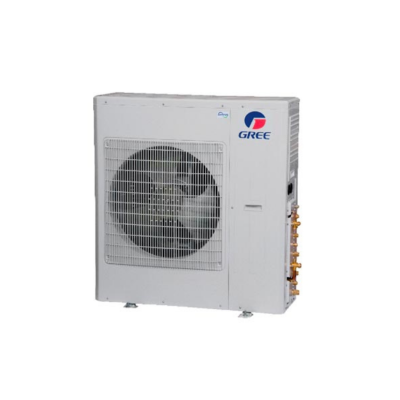

Gree R32 Freematch 5.3kW Outdoor unit
|
