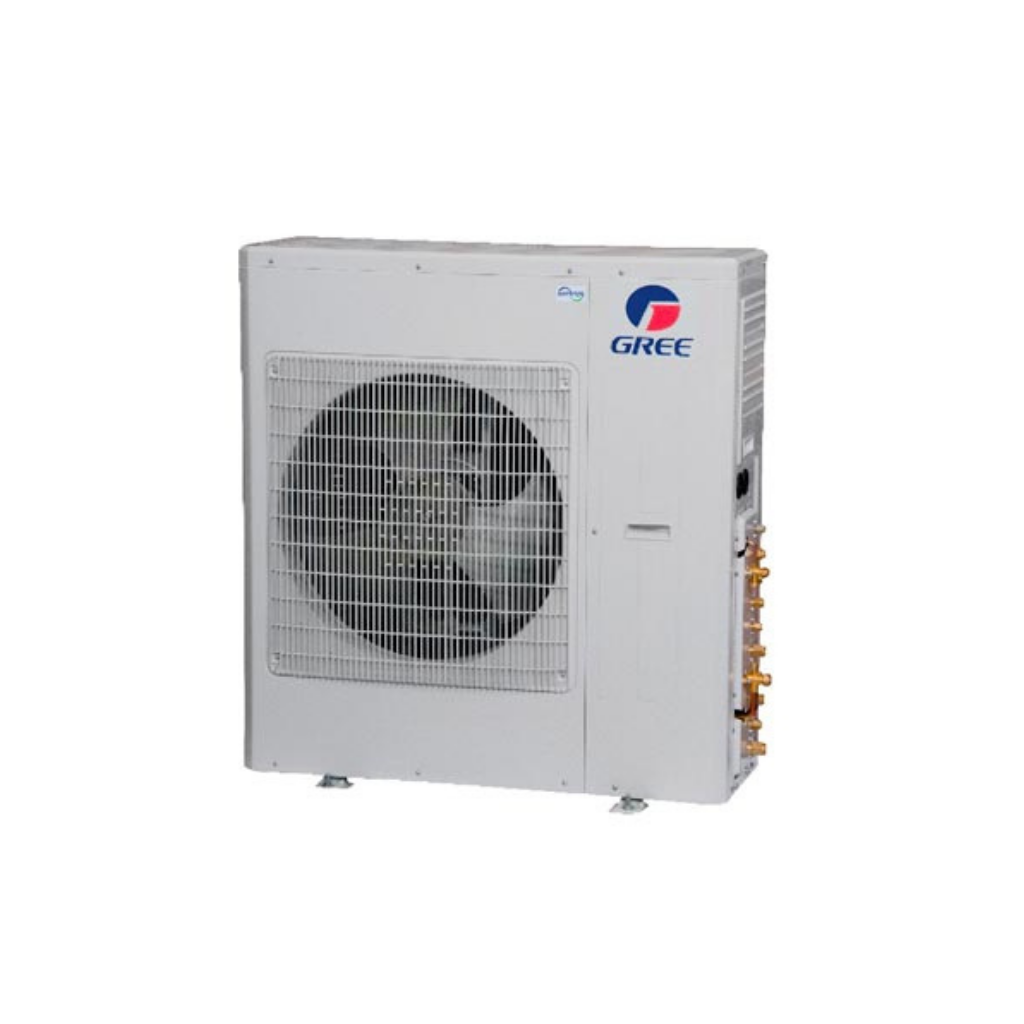

Gree R32 Freematch 5.3kW Outdoor unit
Product code:
AC5661
Manufacturer code
GWHD(18)NK6PO
| Product Group : | Freematch Outdoor Units |
|---|
General
| Product Group : | Freematch Outdoor Units |
|---|
Additional Info
| Family : | Freematch |
|---|---|
| Indoor/ Outdoor/ Other : | Outdoor |
| Indoor Units Connectable (Quantity) : | 2 |
| Single Split / Multi Split : | Multi |
Air Volume/Air Flow
| Air Flow : | 2300 m³/h |
|---|
Cable
| Recommended Power Cable : | 3 x 1.5 |
|---|
Connections
| Connection Size : | 6 mm |
|---|---|
| Connection Size 2 : | 9.52 mm |
Cooling Capacity
| Cooling Capacity : | 5.3 kW |
|---|
Electrical
| Amperage Rating : | 6.1 |
|---|---|
| Phase : | 1 |
| Power Consumption Cooling : | 1.38 kW |
| Power Consumption Heating : | 1.3 kW |
| Recommended Fuse : | 25 A |
| Voltage : | 220-240/1/50 V/Ph/Hz |
Energy Efficiency/Performance
| COP : | 4.235 |
|---|---|
| EER : | 3.779 |
Heating Capacity
| Heating Capacity : | 5.6 kW |
|---|
Measurements
| Depth : | 352 mm |
|---|---|
| Height : | 550 mm |
| Weight : | 34 kg |
| Width : | 822 mm |
Outdoor Unit Attributes
| Sound Power Level Cooling (OU) : | 64 dB(A) |
|---|---|
| Sound Pressure Level Cooling (OU) : | 50 dB(A) |
| Sound Pressure Level Heating (OU) : | 54 dB(A) |
Pipes
| Chargeless Piping Length : | 40 m |
|---|---|
| Max Height Difference : | 15 m |
| Max Pipe Length Without Additional Refrigerant : | 40 m |
| Max Piping Length : | 50 m |
Refrigerant
| Additional Charge : | 20 g/m |
|---|---|
| Refrigerant : | R32 |
| Refrigerant Charge : | 0.9 kg |
Temperature
| Outdoor Operating Temp. Range (Cooling) : | -15/52 °C |
|---|---|
| Outdoor Operating Temp. Range (Heating) : | -22/24 °C |
Product information
| File name | Extension | Size |
|---|---|---|
| Brochures | 11.18 MB |
