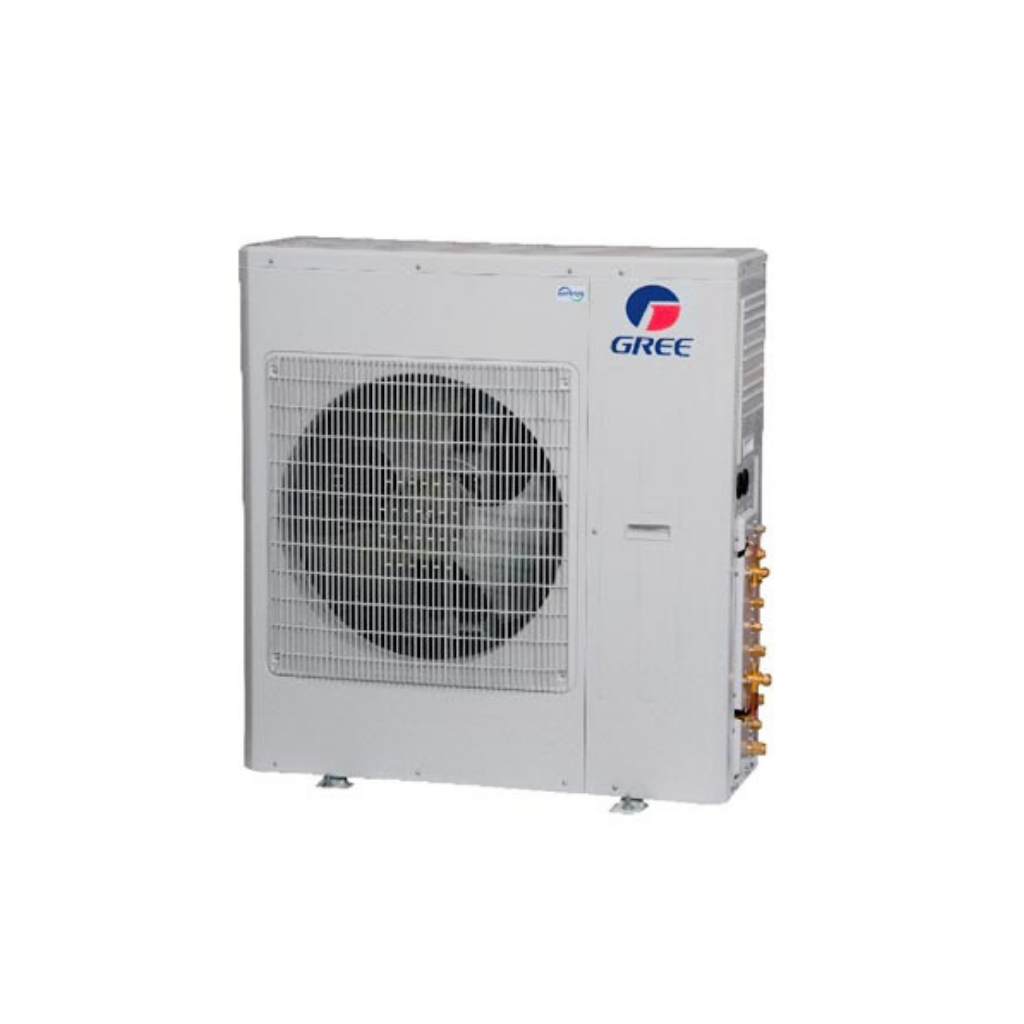

Gree R32 Freematch 8.2kW Outdoor
Product code:
AC5663
Manufacturer code
GWHD(28)NK6PO
| Product Group : | Freematch Outdoor Units |
|---|
General
| Product Group : | Freematch Outdoor Units |
|---|
Additional Info
| Family : | Freematch |
|---|---|
| Indoor/ Outdoor/ Other : | Outdoor |
| Indoor Units Connectable (Quantity) : | 4 |
| Single Split / Multi Split : | Multi |
Air Volume/Air Flow
| Air Flow : | 3800 m³/h |
|---|
Connections
| Connection Size : | 6 mm |
|---|---|
| Connection Size 2 : | 9.5 mm |
Cooling Capacity
| Cooling Capacity : | 8.2 kW |
|---|
Electrical
| Input (Cooling) : | 1.88 kW |
|---|---|
| Input (Heating) : | 2.12 kW |
| Recommended Fuse : | 25 A |
| Voltage : | 220-2240/1/50 V/Ph/Hz |
Energy Efficiency/Performance
| COP : | 4.086 |
|---|---|
| EER : | 4.285 |
Heating Capacity
| Heating Capacity : | 8.8 kW |
|---|
Measurements
| Depth : | 402 mm |
|---|---|
| Height : | 660 mm |
| Net Weight : | 51 kg |
| Width : | 964 mm |
Outdoor Unit Attributes
| Sound Power Level Cooling (OU) : | 58 dB(A) |
|---|---|
| Sound Power Level Heating (OU) : | 58 dB(A) |
| Sound Pressure Level (OU) : | 68 dB(A) |
Pipes
| Chargeless Piping Length : | 40 m |
|---|---|
| Max Height Difference : | 15 m |
| Max Pipe Length Without Additional Refrigerant : | 40 m |
| Max Piping Length : | 70 m |
Refrigerant
| Additional Charge : | 20 g/m |
|---|---|
| Refrigerant : | R32 |
| Refrigerant Charge : | 1.8 kg |
Temperature
| Outdoor Operating Temp. Range (Cooling) : | -15/52 °C |
|---|---|
| Outdoor Operating Temp. Range (Heating) : | -22/24 °C |
Product information
| File name | Extension | Size |
|---|---|---|
| Brochures | 11.18 MB |
