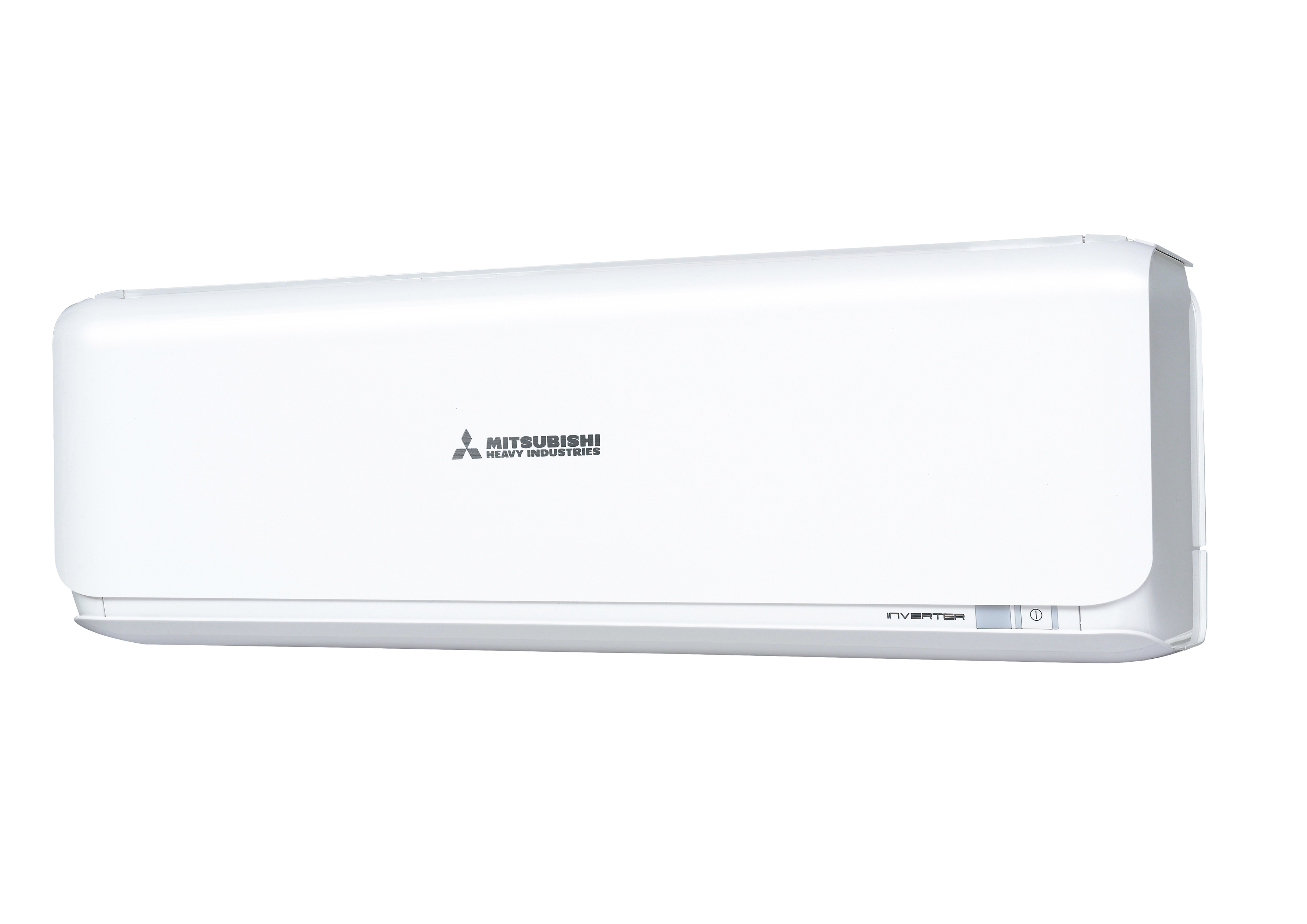

MHI AVANTI 2.5KW SRK25ZSA-W
Product code:
AC3071/I
Manufacturer code
SRK25ZSAW
| Product Group : | High Wall |
|---|
General Information
| Product Group : | High Wall |
|---|---|
| Condensate Water Pump Provided : | No |
| Pre-Equipped Wifi : | No |
| Remote Control : | Yes |
Additional Info
| Indoor/ Outdoor/ Other : | Indoor |
|---|---|
| Single Split / Multi Split : | Single Split |
Air Volume/Air Flow
| Air Flow : | 601 m³/h |
|---|
Capacity
| Cooling Capacity : | 2.5 kW |
|---|---|
| Cooling Capacity (Min/Rated/Max) : | 0.9/2.5/3.8 kW |
| Heating Capacity : | 3.2 kW |
| Heating Capacity (Min/Rated/Max) : | 0.8/3.2/6.0 kW |
| Heating Capacity Min/Max : | 0.8/6.0 kW |
Connections
| Pipe Diameter Gas Side : | 9.52 mm |
|---|---|
| Pipe Diameter Liquid Side : | 6.35 mm |
Cooling Capacity R32
| R32 Cooling Capacity Max : | 3.8 kW |
|---|---|
| R32 Cooling Capacity Min : | 0.9 kW |
| R32 Cooling Capacity Rated : | 2.5 kW |
Description
| Short Description : | MHI AVANTI 2.5KW SRK25ZSA-W Indoor |
|---|
Electrical
| Max Current : | 9.0 A |
|---|---|
| Power Input (Heating/Cooling) : | .59/.44 kW |
| Power Supply : | 230/1/50 V/Ph/Hz |
| Voltage : | 230 V |
| Voltage 50Hz : | 230 V |
Energy Efficiency/Performance
| COP : | 5.42 |
|---|---|
| EER : | 5.68 |
| Energy Label (Cooling) : | 4.5 Average |
| Energy Label (Heating) : | 4 average |
Heating Capacity R32
| R32 Heating Capacity Max : | 6.0 kW |
|---|---|
| R32 Heating Capacity Min : | 0.8 kW |
| R32 Heating Capacity Rated : | 3.2 kW |
Indoor Unit Attributes
| Depth (IU) : | 220 mm |
|---|---|
| Height (IU) : | 305 mm |
| Net Weight (IU) : | 13 kg |
| Width (IU) : | 920 mm |
Pipes
| Max Height Difference : | 15 m |
|---|---|
| Max Pipe Length Without Additional Refrigerant : | 15 m |
| Max Piping Length : | 25 m |
Power Input R32
| R32 Power Input Rated Cooling : | 0.44 kW |
|---|---|
| R32 Power Input Rated Heating : | 0.59 kW |
Refrigerant
| Refrigerant : | R32 |
|---|---|
| Refrigerant Charge : | 1.2 kg |
| Refrigerant Pipe Size : | 6.35x9.52 mm |
Sound Power/Pressure
| Sound Pressure Level (Low/Medium/High/Quiet) : | 25/33/39/19 dB(A) |
|---|
Product information
MHI AVANTI 2.5KW SRK25ZSA-W Indoor
