TitanPack 283MHA1
Product code:
CK4276
Manufacturer code
BDK01060
General Information
| Product Group : | Outdoor Hermetic Condensing Units |
|---|
Additional Info
| Crankcase Heater Provided : | Yes |
|---|---|
| Family : | Kirby Titan |
| HP Control Device Provided : | Yes |
| HP Safety Switch Provided : | Yes |
| LP Safety Switch Provided : | Yes |
| Liquid Line Fitted With Shut Off Valve : | Yes |
| Liquid Line Provided : | Yes |
| Suction Valve Provided : | Yes |
Air Volume/Air Flow
| Air Flow : | 3735 L/s |
|---|
Compressor
| Compressor Model : | MTZ160-4VM |
|---|---|
| Compressor Type : | Hermetic |
| Number Of Compressors : | 1 |
| Number Of Phases (Compressor) : | 3 |
| Power Supply Compressor : | 380-400/3/50 V/Ph/Hz |
Connections
| Pipe Diameter Gas Side : | 1-3/8 in |
|---|---|
| Pipe Diameter Liquid Side : | 7/8 in |
Cooling Capacity R134a
| R134a Cooling Capacity Rated -5°C : | 17.035 kW |
|---|---|
| R134a Cooling Capacity Rated -10°C : | 13.480 kW |
| R134a Cooling Capacity Rated -15°C : | 10.400 kW |
| R134a Cooling Capacity Rated 0°C : | 21.065 kW |
| R134a Cooling Capacity Rated 5°C : | 25.56 kW |
Cooling Capacity R448A
| R448A Cooling Capacity Rated -10°C : | 20.370 kW |
|---|---|
| R448A Cooling Capacity Rated 0°C : | 29.905 kW |
| R448A Cooling Capacity Rated 5°C : | 35.445 kW |
Electrical
| LRA : | 144.7 A |
|---|---|
| MCC : | 40.7 A |
| Max Power Input : | 13100 W |
| Power Supply : | 380/3/50 V/Ph/Hz |
| RLA : | 24.2 A |
Fan
| Fan Blade Size : | 450 mm |
|---|---|
| Fan Diameter : | 450 mm |
| Number Of Fans : | 3 |
Measurements
| Depth : | 840 mm |
|---|---|
| Height : | 1094 mm |
| Net Weight : | 335 kg |
| Width : | 3413 mm |
Oil
| Oil Type : | POE |
|---|
Sound Power/Pressure
| Sound Power at 50 Hz : | 81.5 dB(A) |
|---|
Product information

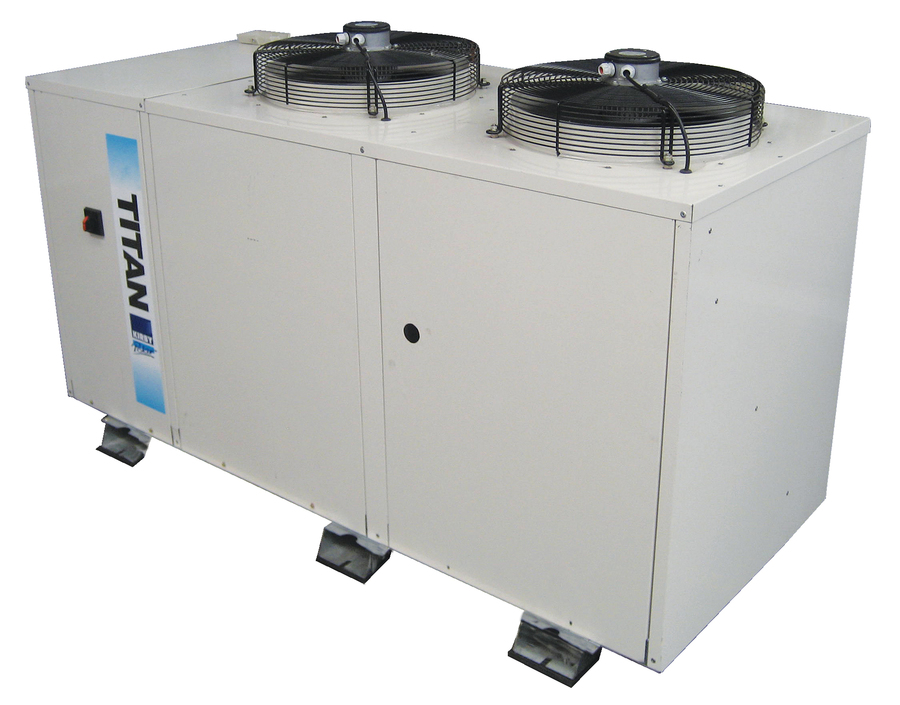

HUGE CAPACITY AND MAXIMUM PERFORMANCE IN HARSH CONDITIONSA tough, compact and robust commercial condensing unit, the Kirby Titan offers impressive performance and capacity within a small footprint. Pre-wired for convenient installation, Kirby Titan range thrives in harsh ambient conditions and under heavy loads. Being a fully enclosed system, it can be installed indoors or outside. And because it’s from Kirby, Titan has an enviable reputation for toughness, efficiency and reliability. KEY FEATURESImpressive capacity ranging from 12kW to 41kW Enhanced compressor technology Designed for harsh conditions up to 45°C Quiet and efficient operations Easy to service Fast installation Fully pre-wired Fan speed control Coil protection as standard
