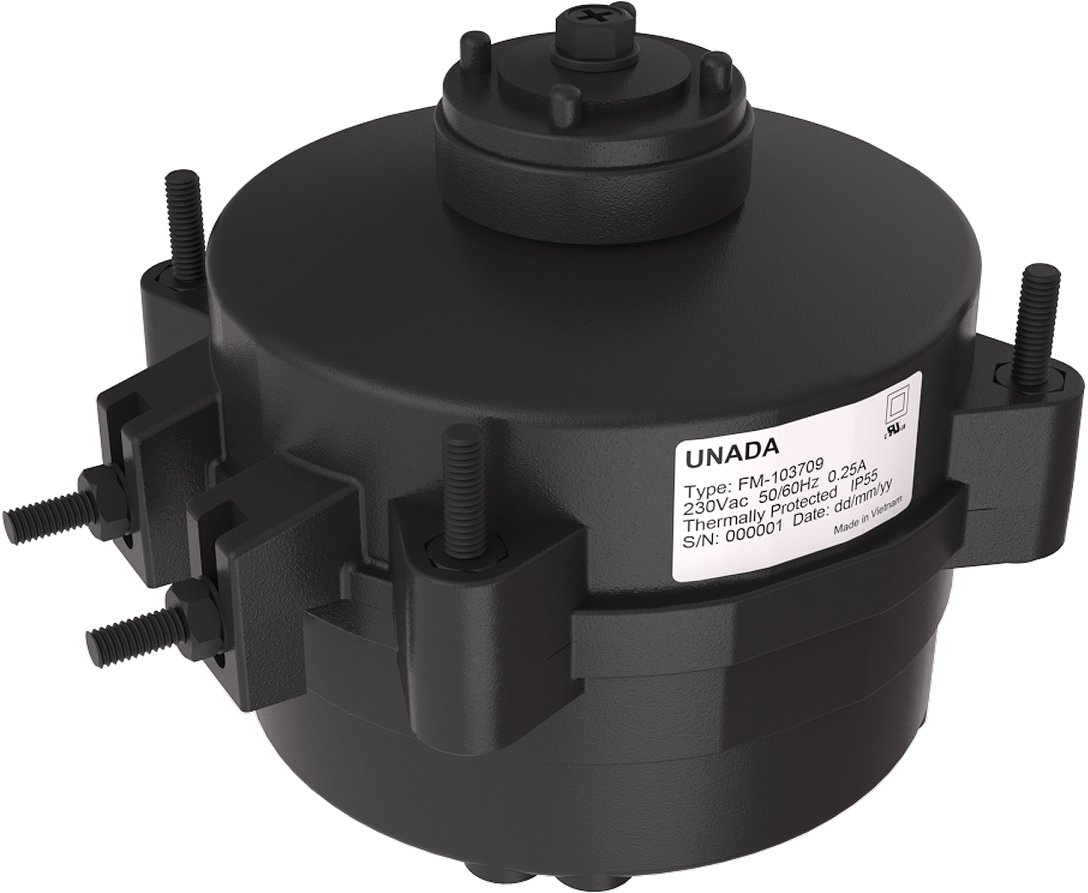

Unada 25W MOTOR (DRIVE PLATE) EC FULLY PROGRAMMABLE
Product code:
D0138
Manufacturer code
FM103709M
| Product Group : | EC Fan Motors |
|---|
General
| Product Group : | EC Fan Motors |
|---|
Additional Info
| Additional Info : | PROGRAMMABLE MOTOR |
|---|
Air Volume/Air Flow
| Airflow Direction : | CW & CCW |
|---|
Electrical
| Current : | 0.42 A |
|---|---|
| IP Class : | IP55 |
| Power Supply : | 240/1/50 V/Ph/Hz |
Fan
| Fan Speed : | 2300 r/min |
|---|
Measurements
| Height : | 67 mm |
|---|---|
| Length : | 67 mm |
| Width : | 77 mm |
Product information
EC FAN MOTOR FULLY PROGRAMMABLE 0 TO 25 WATTS, 400 TO 2300 RPM , CW OR CCW , OPTIONAL TIMED REVERSE.
| File name | Extension | Size |
|---|---|---|
| Brochures | 533.07 KB |
