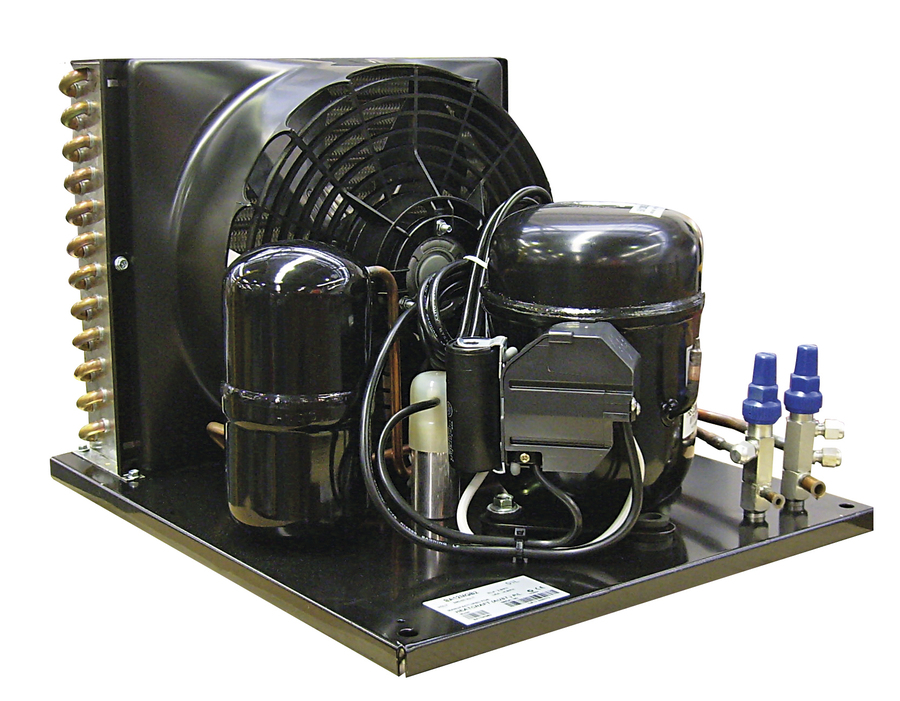

CONDENSING UNIT BA 12MGB1
Product code:
CK2233
Manufacturer code
1SBA12MGB1
General Information
| Product Group : | Hermetic Condensing Units |
|---|---|
| Receiver Volume : | 1.4 L |
Additional Info
| Family : | Nullarbor |
|---|---|
| HP Control Device Type : | No |
| Liquid Line Fitted With Shut Off Valve : | Yes |
Capacity R404A
| R404A Capacity -5°C : | 1.026 kW |
|---|---|
| R404A Capacity 5°C : | 1.396 kW |
Compressor
| Compressor Model : | BA12MG |
|---|---|
| Displacement : | 12.1 cc |
| Number Of Compressors : | 1 |
| Power Supply Compressor : | 220-240/1/50 V/Ph/Hz |
Connections
| Pipe Diameter Gas Side : | 3/8 in |
|---|---|
| Pipe Diameter Liquid Side : | 1/4 in |
Cooling Capacity R448A/R449A
| R448A/R449A Cooling Capacity -5°C : | 0.913 kW |
|---|---|
| R448A/R449A Cooling Capacity 5°C : | 1.242 kW |
Electrical
| RLA : | 2.8 A |
|---|---|
| Voltage : | 220-240/1/50 V/Ph/Hz |
Fan
| Fan Blade Size : | 300 mm |
|---|---|
| Fan Diameter : | 300 mm |
| Number Of Fans : | 1 |
Measurements
| Depth : | 470 mm |
|---|---|
| Height : | 276 mm |
| Net Weight : | 22 kg |
| Width : | 330 mm |
Performance
| Nominal HP : | 3/8 HP |
|---|
Product information
With improved performance due to the inclusion of large condensers, the Kirby® Nullarbor range delivers high output and efficiency. And because they’re from Kirby®, they’re robust and reliable – guaranteed.KEY FEATURESIncorporating the latest Kirby® BA, WJ and AW series compressors delivers reliability and proven performance.High ambient condenser optimises efficiency and airflow for continuous operation at temperatures up to 45°C ambient temperatures.Durable painted galvanised bases maximise service life.Lower noise and vibration levels through clever compressor design.Compact footprint for ease of installation.
