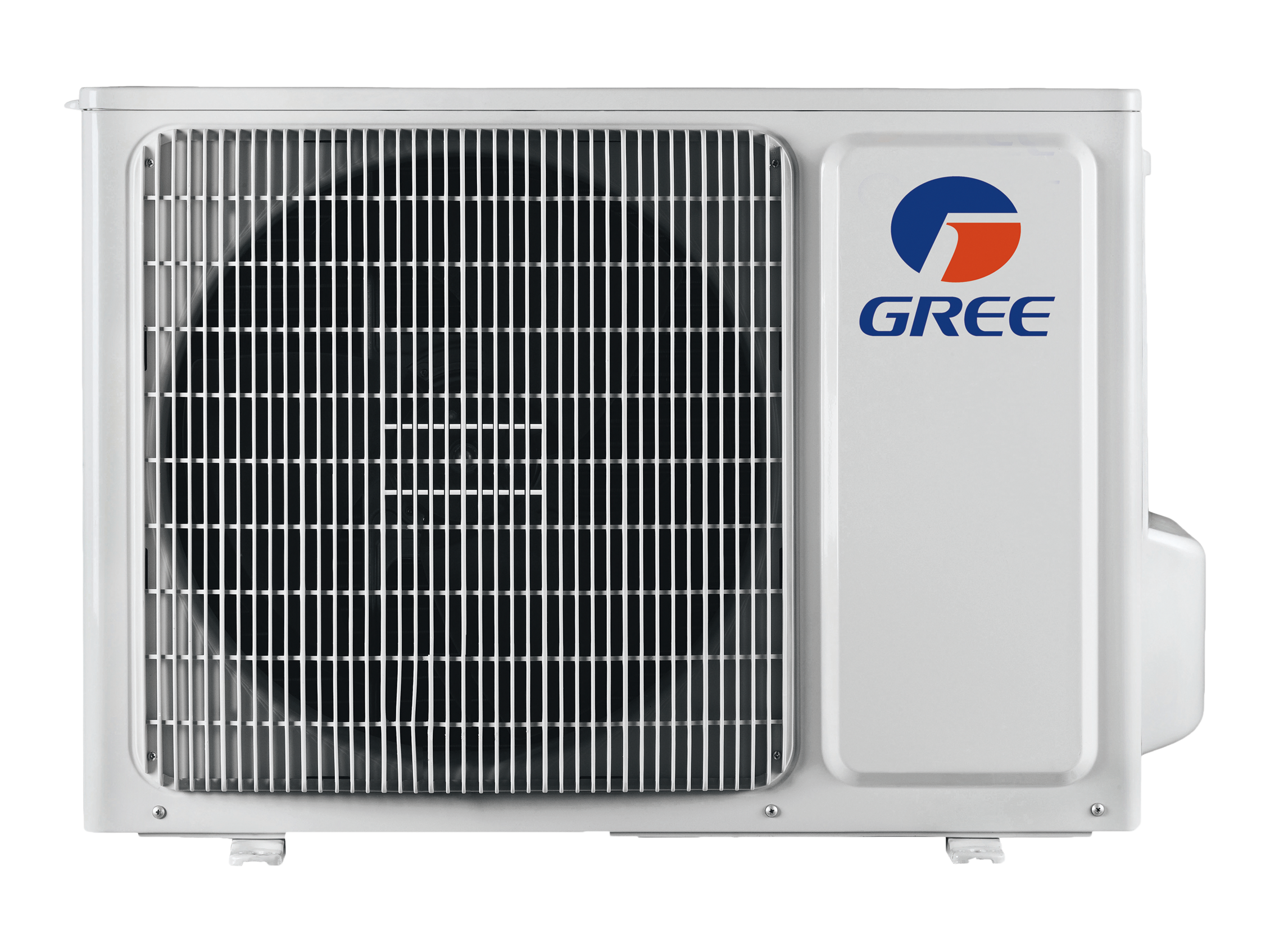

Gree Kingfisher 2.0kW Outdoor Unit R32
Product code:
AC7171/O
Manufacturer code
GWH07ATAXA-K6DNA1D/O
| Product Group : | High Wall |
|---|
General
| Product Group : | High Wall |
|---|
Additional Info
| Family : | Kingfisher |
|---|---|
| Indoor/ Outdoor/ Other : | Outdoor |
| Indoor Units Connectable (Quantity) : | 1 |
| Single Split / Multi Split : | Single Split |
Air Volume/Air Flow
| AirFlow (OU) : | 1400 m³/h |
|---|
Compressor
| Compressor Model : | FW68DA |
|---|---|
| Compressor Type : | Rotary |
Connections
| Connection Size : | 1/4 in |
|---|---|
| Connection Size 2 : | 3/8 in |
Connectivity
| Pre-Equipped Wifi : | Yes |
|---|
Cooling Capacity
| Cooling Capacity : | 2.0 kW |
|---|
Electrical
| Amperage Rating : | 3 RLA |
|---|---|
| Max Power Input : | 633 W |
| Power Supply : | 220-240/1/50 V/Ph/Hz |
Energy Efficiency/Performance
| COP : | 3.90 |
|---|---|
| EER : | 3.70 |
Fan
| Number Of Fan Speeds : | 940 |
|---|---|
| Number Of Fans : | 1 |
General Information
| Condensate Water Pump Provided : | No |
|---|
Heating Capacity
| Heating Capacity : | 2.638 kW |
|---|
Outdoor Unit Attributes
| Depth (OU) : | 293 mm |
|---|---|
| Height (OU) : | 450 mm |
| Max Sound Power Level (OU) : | 58 dB(A) |
| Net Weight (OU) : | 21.5 kg |
| Sound Pressure Level (OU) : | 50 dB(A) |
Pipes
| Chargeless Piping Length : | 10 m |
|---|---|
| Max Height Difference : | 10 m |
| Max Height Difference (Outdoor is Higher/Lower) : | 10 m |
| Max Piping Length : | 15 m |
| Pipe Diameter : | 1/4 in |
| Pipe Dimension : | 3/8 in |
Refrigerant
| Additional Charge : | 16 g/m |
|---|---|
| Refrigerant : | R32 |
| Refrigerant Charge : | 0.45 kg |
| Refrigerant precharged up to : | 10 m |
Temperature
| Temperature Range Cooling : | -15/+52 °C |
|---|---|
| Temperature Range Heating : | -15/+24 °C |
Product information
The Gree Kingfisher Series of Heat Pumps lets you indulge in ultimate tranquillity within your home. Thiscompact stylish, and elegant series is specifically designed to offer reliable and energy-efficient comfort foryou and your family throughout the year.Energy EfficiencyThe Gree Kingfisher range of heat pumps offer energy efficient operation all year round. Gree’s G10 invertertechnology allows for fast attainment of your set ultimate degrees and when coupled with the Turbo andI-Feel modes, Kingfisher can deliver the perfect environment.Convenient OperationTake control with ease using the Kingfisher’s built-in smart Wi-Fi functionality. By using the Gree+ app, youcan conveniently operate your Kingfisher heat pump from your mobile device or tablet. Stay connected andexperience the convenience of smart control with the Kingfisher series.Home Comfort• Enjoy customisable airflow with a multi speed fan• Easily adjust settings with the adjustable LED display for added convenience• Maintain clean and fresh air with washable dust filters that are easy to clean
