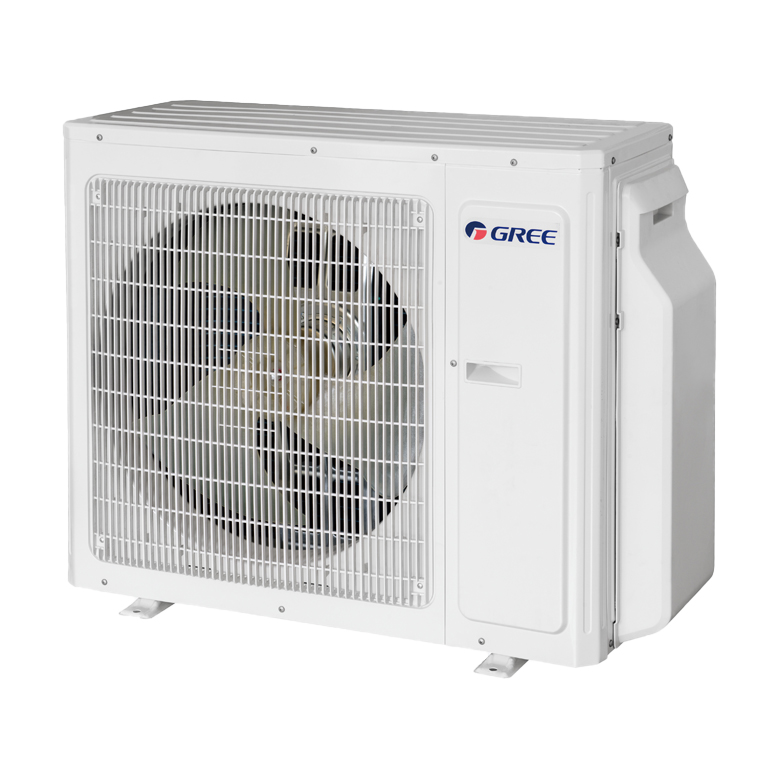

Gree Weka 6.4kW Out R32

Product code: AC7326/O
Manufacturer code GWH21AGEXFK6DNA1AO
Central warehouse:
PLEASE LOGIN TO SEE PRICES
General Information
Product Group : High Wall
Additional Info
Family : Gree Weka 6.4 Kw Outdoor R32
Indoor/ Outdoor/ Other : Outdoor
Indoor Units Connectable (Quantity) : 1
Single Split / Multi Split : Single Split
Capacity
Cooling Capacity : 6.40 kW
Cooling Capacity (Min/Rated/Max) : 1.6/6.4/8.6 kW
Heating Capacity : 7.40 kW
Heating Capacity (Min/Rated/Max) : 2.0/7.4/9.06 kW
Cooling Capacity R32
R32 Cooling Capacity Max : 8.6 kW
R32 Cooling Capacity Min : 1.6 kW
R32 Cooling Capacity Rated : 6.4 kW
Description
Short Description : Gree Weka 6.4 Kw Outdoor R32
Electrical
Input (Cooling) : 1.54 kW
Input (Heating) : 1.81 kW
Max Current : 8.19 A
Power Consumption Cooling : 1.54 kW
Power Consumption Heating : 1.81 kW
Power Input (Heating/Cooling) : 1.54/1.81 kW
Power Supply : 220-240/1/50 V/Ph/Hz
Recommended Fuse : 25 A
Voltage : 230 V
Voltage 50Hz : 230 V
Energy Efficiency/Performance
COP : 4.05
EER : 4.09
Fan
Number Of Fans : 1
Measurements
Depth : 402 mm
Height : 660 mm
Weight : 42.5 kg
Width : 958 mm
Pipes
Max Height Difference : 10 m
Max Piping Length : 25 m
Pipe Dimension : 6.35 x 12.50 mm
Power Input R32
R32 Power Input Rated Cooling : 1.54 kW
Refrigerant
Additional Charge : 16 g/m
Additional Gas Amount : 16 g/m
Refrigerant : R32
Refrigerant Charge : 1.3 kg
Refrigerant Pipe Size : 1/4-1/2 in
Refrigerant precharged up to : 10 m
Sound Power/Pressure
Sound Pressure Level : 67 dB(A)
Sound Pressure Level Cooling : 58 dB(A)
Sound Pressure Level Heating : 67 dB(A)
Temperature
Temperature Range Cooling : -10 - 50 °C
Temperature Range Heating : -15 - 24 °C
Product information
Gree Weka 6.4 Kw Outdoor R32
File name Extension Size
Technical literature pdf 6.43 MB
