Gree Weka 8.5kW Ind R32
Product code:
AC7328/I
Manufacturer code
GWH28AGEXHK6DNA1AI
General Information
| Product Group : | High Wall |
|---|---|
| Condensate Water Pump Provided : | No |
| Moisture Removal Volume : | 3.0 L/ph |
| Pre-Equipped Wifi : | Yes |

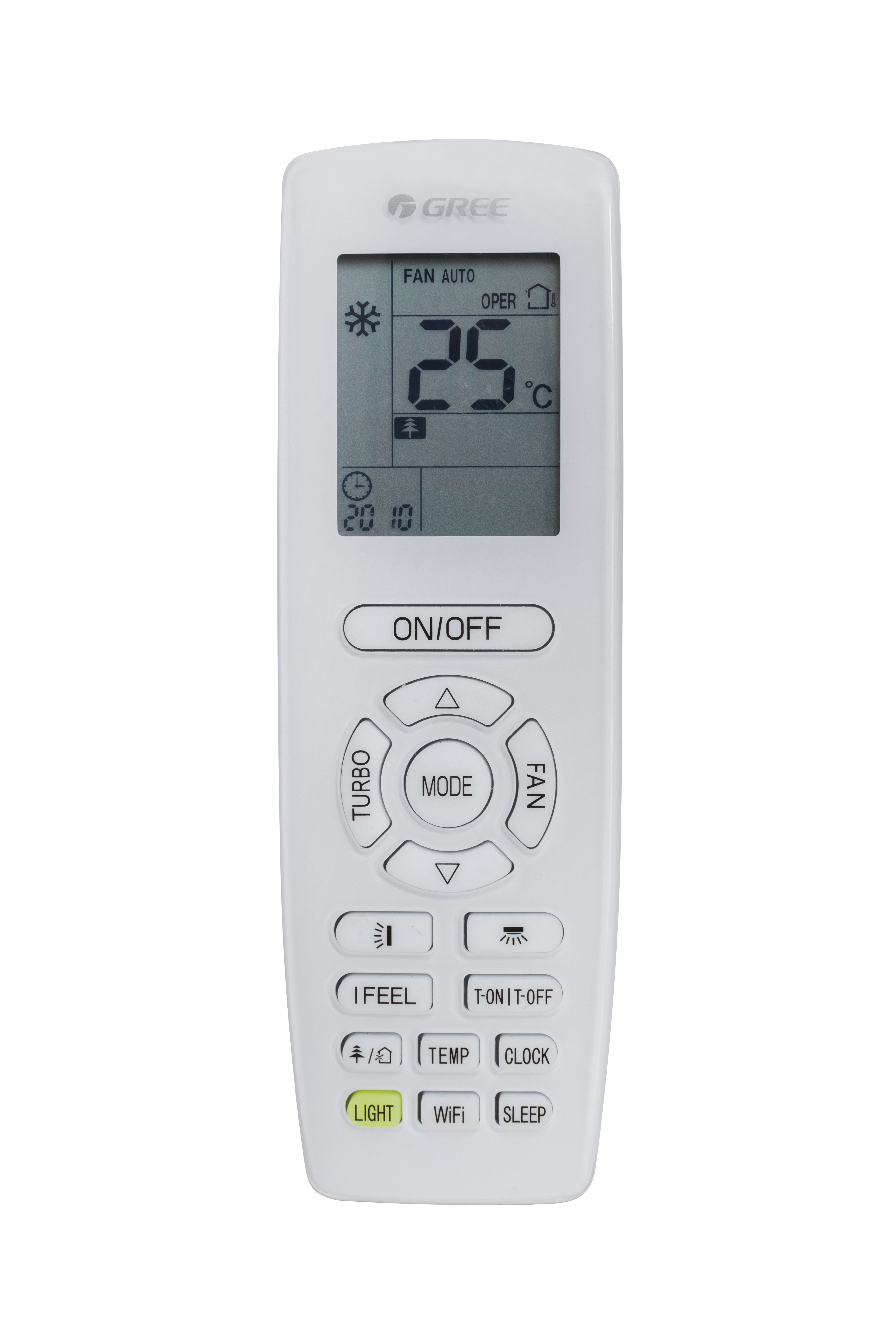

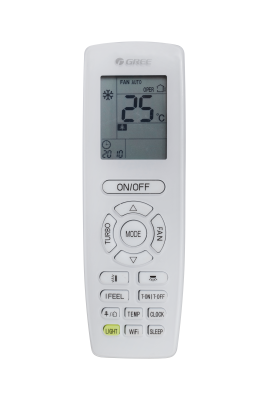

| Remote Control : | Yes |
Additional Info
| Indoor/ Outdoor/ Other : | Indoor |
|---|---|
| Single Split / Multi Split : | Single Split |
Air Volume/Air Flow
| Air Flow : | 1300 m³/h |
|---|---|
| Air Volume : | 361 m³/h |
Capacity
| Cooling Capacity : | 8.5 kW |
|---|---|
| Cooling Capacity (Min/Rated/Max) : | 1.6 - 8.5 - 10.25 kW |
| Heating Capacity : | 9.0 kW |
| Heating Capacity (Min/Rated/Max) : | 2.7 - 9.0 - 11.3 kW |
Cooling Capacity R32
| R32 Cooling Capacity Max : | 10.25 kW |
|---|---|
| R32 Cooling Capacity Min : | 1.6 kW |
| R32 Cooling Capacity Rated : | 8.5 kW |
Description
| Short Description : | Gree Weka 8.5 Kw Indoor R32 |
|---|
Electrical
| Power Supply : | 220-240/1/50 V/Ph/Hz |
|---|---|
| Recommended Fuse : | 25 |
| Voltage : | 230 V |
| Voltage 50Hz : | 230 V |
Energy Efficiency/Performance
| COP : | 3.37 |
|---|---|
| EER : | 3.67 |
| R32 SCOP : | 3.37 |
| R32 SEER : | 3.67 |
Heating Capacity R32
| R32 Heating Capacity Max : | 11.3 kW |
|---|---|
| R32 Heating Capacity Min : | 2.7 kW |
| R32 Heating Capacity Rated : | 9.0 kW |
Indoor Unit Attributes
| Net Weight (IU) : | 16 kg |
|---|
Measurements
| Depth : | 246 mm |
|---|---|
| Height : | 333 mm |
| Net Weight : | 16 kg |
| Weight : | 16 kg |
| Width : | 1075 mm |
Pipes
| Max Pipe Length Without Additional Refrigerant : | 10 m |
|---|---|
| Max Piping Length : | 25 m |
| Pipe Dimension : | 6.35 x 15.80 mm |
Power Input R32
| R32 Power Input Rated Cooling : | 2.3 kW |
|---|---|
| R32 Power Input Rated Heating : | 2.65 kW |
Refrigerant
| Refrigerant : | R32 |
|---|---|
| Refrigerant Charge : | 1.75 kg |
| Refrigerant Pipe Size : | 1/4 - 5/8 in |
Sound Power/Pressure
| Sound Power Level : | 48 dB(A) |
|---|---|
| Sound Pressure Level : | 32 dB(A) |
| Sound Pressure Level (Low/Medium/High/Quiet) : | 32 / - / 49 dB(A) |
Wire
| Wire Diameter Interconnection Cable : | 3C + E |
|---|
Product information
Gree Weka 8.5 Kw Indoor R32
| File name | Extension | Size |
|---|---|---|
| Technical literature | 6.43 MB |
