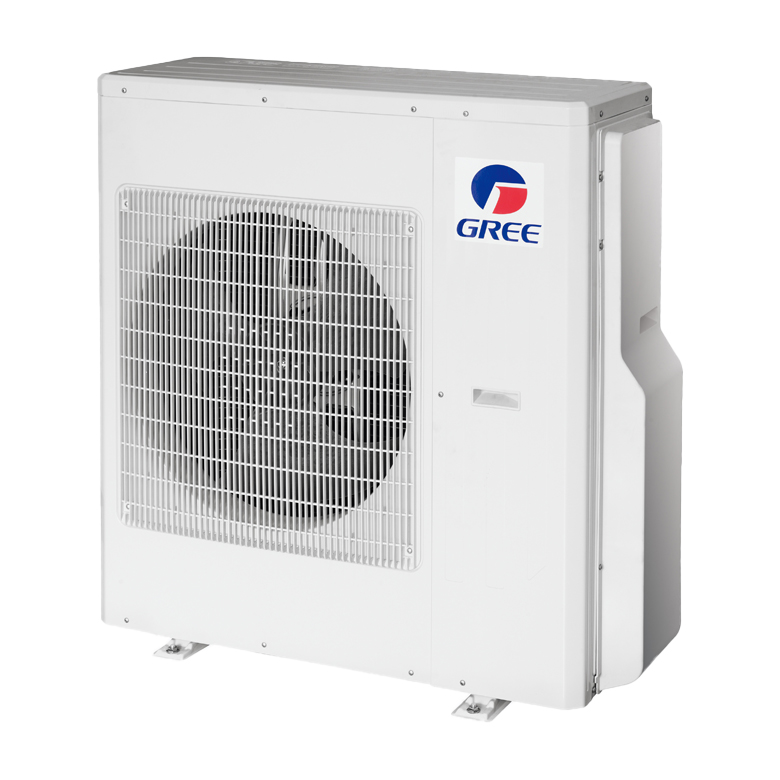

Gree uMatch 10kW Out R32
Product code:
AC5712/O
Manufacturer code
GUD100WNhBS
| Product Group : | U Match Outdoor units |
|---|
General
| Product Group : | U Match Outdoor units |
|---|
Additional Info
| Family : | Gree U Match |
|---|---|
| Indoor/ Outdoor/ Other : | Outdoor |
| Indoor Units Connectable (Quantity) : | 1 |
| Single Split / Multi Split : | Single Split |
Connections
| Liquid Line Connection : | 9.50 mm |
|---|---|
| Pipe Diameter Gas Side : | 15.88 mm |
| Pipe Diameter Liquid Side : | 9.50 mm |
Connectivity
| Pre-Equipped Wifi : | Yes |
|---|
Cooling Capacity
| Cooling Capacity : | 9.5 kW |
|---|---|
| Cooling Capacity (Min/Rated/Max) : | 3.2/9.5/11 kW |
Description
| Short Description : | Gree U Match 10Kw Outdoor R32 |
|---|
Electrical
| Input (Cooling) : | 2.95 kW |
|---|---|
| Input (Heating) : | 3.5 kW |
| Power Consumption Cooling : | 2.95 kW |
| Power Consumption Heating : | 3.5 kW |
| Power Input (Heating/Cooling) : | 2.95/3.5 kW |
| Power Supply : | 230/1/50 V/Ph/Hz |
| Recommended Fuse : | 32 |
| Voltage : | 230 V |
| Voltage 50Hz : | 230 V |
Energy Efficiency/Performance
| SCOP : | 3.44 |
|---|---|
| SEER : | 3.25 |
Heating Capacity
| Heating Capacity : | 12.0 kW |
|---|---|
| Heating Capacity (Min/Rated/Max) : | 3.0/12.0/13.5 kW |
Measurements
| Depth : | 480 mm |
|---|---|
| Height : | 820 mm |
| Weight : | 83 kg |
| Width : | 940 mm |
Pipes
| Max Height Difference : | 30 m |
|---|---|
| Max Pipe Length Without Additional Refrigerant : | 20 m |
| Max Piping Length : | 65 m |
| Pipe Dimension : | 9.5 x 15.88 mm |
R32 Performances Cooling
| R32 Cooling Capacity Max : | 11 kW |
|---|---|
| R32 Cooling Capacity Min : | 3.2 kW |
| R32 Cooling Capacity Rated : | 11 kW |
R32 Performances Heating
| R32 Power Input Rated Cooling : | 2.95 kW |
|---|
Refrigerant
| Additional Charge : | 25 g/m |
|---|---|
| Additional Gas Amount : | 25 g/m |
| Refrigerant : | R32 |
| Refrigerant Charge : | 3.02 kg |
| Refrigerant Pipe Size : | 9.5x15.88 mm |
| Refrigerant precharged up to : | 20 m |
Sound Power/Pressure
| Sound Power Level : | 65 dB(A) |
|---|
Temperature
| Temperature Range Cooling : | -15~52 °C |
|---|---|
| Temperature Range Heating : | -15~24 °C |
Product information
Gree U Match 10Kw Outdoor R32
