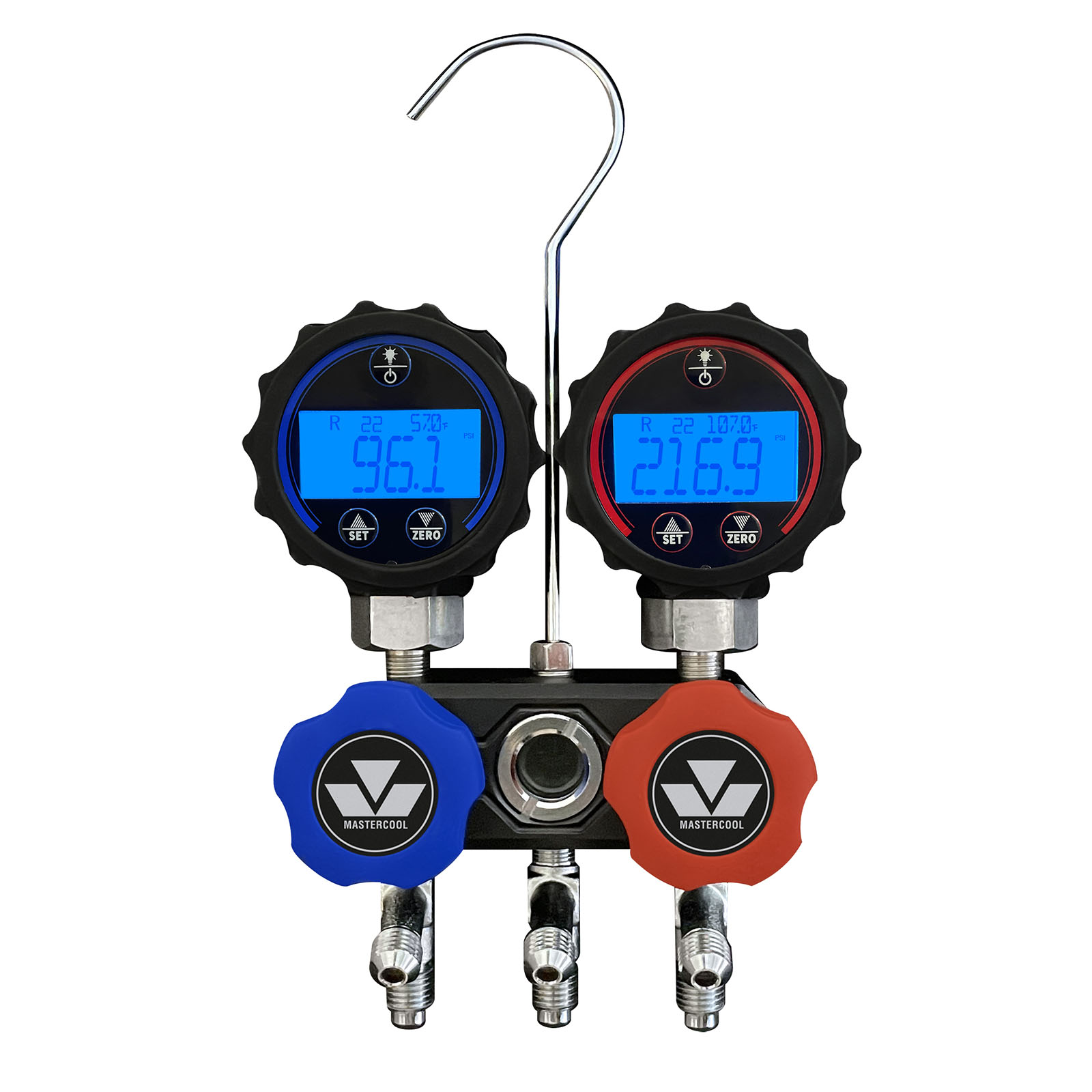

Mini Digital 2-WAY MANIFOLD

COMPACT MANIFOLD WITH FRONT MOUNTED HOSE HOLDERS ALLOWS FOR PRECISE CALCULATIONS IN THE PALM OF YOUR HANDMastercool’s Black Series Compact 2-Way Digital Manifold Gauge Set effortlessly performs pressure and temperature calculations and displays them on a large blue backlit LCD display. Constructed of the finest materials and machined with precision to the highest quality standards this compact manifold provides automatic shut-off, units conversion, over range alarm, max and min values and refrigerants selection providing for a powerful tool for the hard-working technician.FEATURES:Compact black anodized aluminum block with matte chrome fittings offer an extremely portable solution to fit the needs of every busy technicianEasily perform pressure/temperature calculations for up to 91 different refrigerants including R134a, R410a and R22 refrigerantsUnit conversion between MPa, kPa, bar, psi, kg/cm2, inHgLarge 4-digit “blue” backlit LCD display provides vibrant readings in even the darkest of environmentsDisplays alarm indication when over range, celcius or fahrenheit designation and low battery warning directly on the LCD screenLarge sight glass for quick visual refrigerant checksEasy to grip knobsPressure Range:Low Pressure Range: -14.5 – 500 psi (-0.1 – 3.4 MPa)High Pressure Range: -14.5 – 800 psi (-0.1 – 5.5 MPa)Resolution: 0.5 psiAccuracy: +/-0.5% FSMeasurement Units: MPA, kPa, bar, psi, kg/cm2, inHgTemperature Unit: ˚C/˚FOver Range Alarm: Display -OL-Operating Temperature: -10˚C to 60˚CBattery: CR2450Battery Life: Approximately 6 monthsSampling Rate: 1 secondLow Battery Indication: icon on LCDDisplay: 30 mm x 17 mm LCDBlue Backlight: Auto-off after 6 seconds
