Nitrogen Pressure Regulator
Product code:
T2150
Manufacturer code
53004
| Product Group : | Leak Detection |
|---|
General
| Product Group : | Leak Detection |
|---|
Application
| Application : | Nitrogen pressure regulator |
|---|
Connections
| System Connection : | 1/4 inch |
|---|
General Information
| For Use With : | Nitrogen |
|---|
Measurements
| Diameter : | 63 mm |
|---|
Pressure
| High Pressure Shut-Off : | 300 Psi |
|---|
Refrigerant
| Refrigerant : | NIDRON |
|---|
Product information

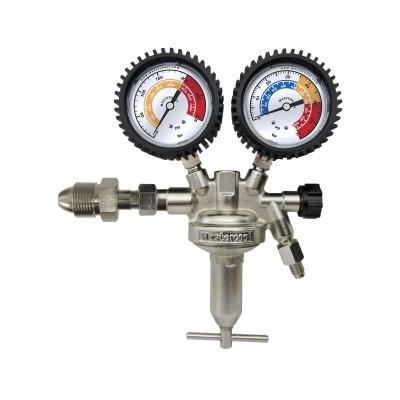

Mastercool’s nitrogen regulator is specifically designed to meet the specifications of HVAC/R and automotive A/C systems. This single stage nitrogen regulator is used to test systems for leaks when they do not contain refrigerant.Test Systems For Leaks When They Do Not Contain Refrigerant TIME SAVING TOOL: No need to add refrigerant, to search for a leak with UV dye or an electronic leak detectorNO NEED TO RECOVER THE REFRIGERANT: This unit will pressurize an empty system allowing the user to easily find a leakWHEN FINISHED SIMPLY REMOVE THE VALVE CORE: To release the inert nitrogen gasCAN BE USED FOR ALL APPLICATIONS: Requiring a 1/4” connection (HVAC, R12, R22, etc.) as well as R134a applicationsSPECIFICATIONS:1/4” SAE flare outlet port, with control valve, to keep pressure on the regulator at all timesT-Handle for ease of pressure adjustment63 mm (2 1/2”) gauges with guardsHigh pressure gauge 4400 psig (300 bar)Low pressure gauge 1000 psig (70 bar)
