Sight Glass HSG14F 1/4" Flare
Product code:
FD2700
Manufacturer code
491022
General Information
| Product Group : | Sight Glasses |
|---|---|
| Approval Standard : | UKCA, UL |
| Model Number : | HSG14F |
Connections
| Connection Size : | 1/4 in |
|---|---|
| Connection Type : | flare |
| Inlet Connection Size : | 1/4 in |
| Inlet Connection Type : | Flare |
| Outlet Connection Size : | 1/4 in |
| Outlet Connection Type : | Flare |
Material
| Body Material : | Brass |
|---|---|
| Connection Material : | Brass |
Measurements
| Height : | 22 mm |
|---|---|
| Length : | 71.5 mm |
| Net Weight : | 0.110 kg |
| Width : | 31.5 mm |
Pressure
| Max Operating Pressure : | 45 Bar |
|---|
Refrigerant
| Refrigerant : | HCFC, HFC, HFO |
|---|
Temperature
| Max Temperature : | +120 °C |
|---|---|
| Min Temperature : | -40 °C |
Valves
| Direction : | Bi-Flow |
|---|
Product information

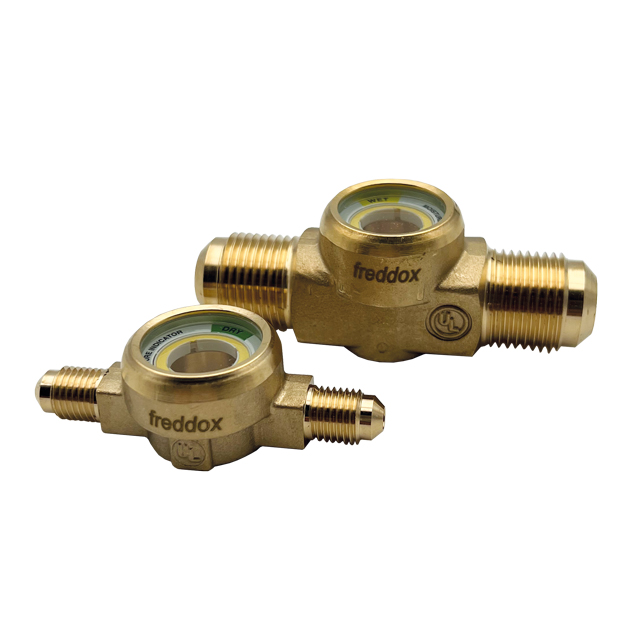

Freddox HSG sight glasses are moisture and liquid indicators determining the state of the refrigerant and the filter drier for commercial refrigeration, industrial refrigeration and air conditioning installation. They are manufactured in a sealed hermetic unit with their lens housed inside the brass body to avoid any possible refrigerant leaks. Freddox sight glasses are suitable with main refrigerants as HCFC, HFC, HFO and HFO/HFC mixtures, and HC up to 45 bar. They are available with brazed or flare connexions from 1/4” (6mm) to 1”1/8 (28mm).
