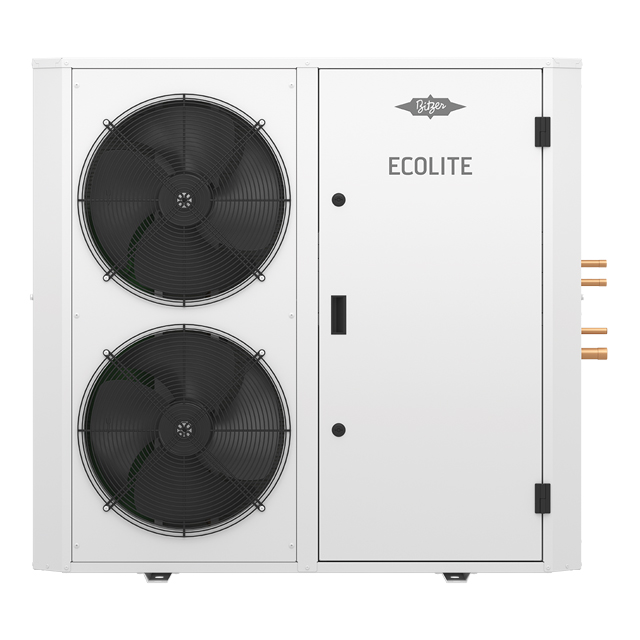

Bitzer Ecolite A2L Condensing Unit LHL5E/4FES-3Y c/w OLC-K1 low level oil switch 3HP
Product code:
BZCU28-204
Manufacturer code
LHL5E/4FES-3Y
| Product Group : | SPECIALS CAPITAL EQUIPMENT |
|---|
General
| Product Group : | SPECIALS CAPITAL EQUIPMENT |
|---|
Additional Info
| Family : | Ecolite |
|---|---|
| HP Control Device Provided : | Yes |
| Liquid Line Provided : | Yes |
| Suction Valve Provided : | Yes |
Air Volume/Air Flow
| Air Flow at 50 Hz : | 6000 m³/h |
|---|
Application
| Application : | LBP/MBP/Fridge.Freezer |
|---|
Compressor
| Compressor Model : | 4FES-3 |
|---|---|
| Displacement : | 18.1 m³/h |
| Number Of Compressors : | 1 |
| Number Of Phases (Compressor) : | 3 |
| Power Supply Compressor : | 400/3/50 V/Ph/Hz |
Connections
| Liquid Line Connection : | 5/8 in, 16 mm |
|---|---|
| Suction Line Connection Size : | 1 1/8 in, 28 mm |
Electrical
| LRA : | 44.2 A |
|---|---|
| MCC : | 9.5 A |
| Power Supply : | 400/3/50 V/Ph/Hz |
| RLA : | 10.1 A |
Fan
| Fan Blade Size : | 450 mm |
|---|---|
| Fan Diameter : | 450 mm |
| Fan Size : | 450 mm |
| Number Of Fans : | 2 |
| Power Supply Fan : | 230/1/50 V/Ph/Hz |
General Information
| Model Number : | LHL5E-4FES-3Y |
|---|---|
| Receiver Volume : | 15 L |
Measurements
| Height : | 1230 mm |
|---|---|
| Length : | 450 mm |
| Net Weight : | 210 kg |
| Weight : | 210 kg |
| Width : | 1300 mm |
R404A Performances
| R404A Capacity -5°C : | 11620 W |
|---|
R448A/R449A Performances
| R448A/449A Capacity -5°C : | 10990 W |
|---|---|
| R448A/449A Capacity -25°C : | 4560 W |
| R448A/R449A Cooling Capacity -10°C : | 9503 W |
| R448A/R449A Cooling Capacity -25°C : | 4725 W |
| R448A/R449A Cooling Capacity -35°C : | 2383 W |
R513A Performances
| R513A Cooling Capacity Rated -10°C : | 5907 W |
|---|---|
| R513A Cooling Capacity Rated 0°C : | 9152 W |
| R513A Cooling Capacity Rated 5°C : | 11143 W |
Refrigerant
| GWP : | 631 |
|---|---|
| Refrigerant : | R134a, R407A, R407C, R407F, R448A, R449A, R450A, R454C, R455A, R513A, R1234yf |
Sound Power/Pressure
| Sound Pressure Level 50 Hz 10m : | 41.5 dB(A) |
|---|
Product information
ECOLITE is a fully equipped "plug and play" air-cooled unit for indoor or outdoor installation, made for DX applications. Capacity control (10-100% LHL5; 50-100% LHL3) provides smooth and energy efficient operation even with large load variations. The same model can be used for both refrigeration and freezing applications.
A1 refrigerants: R448A, R449A, R450A, R513A, R134a, R407A, R407C, R407F.
A2L refrigerants (GWP<150) that can be used: R1234yf, R1234ze, R454C, R455A.
EN 378 and the Swedish Cooling Standard provide good guidance for safe installation and operation.
A1 refrigerants: R448A, R449A, R450A, R513A, R134a, R407A, R407C, R407F.
A2L refrigerants (GWP<150) that can be used: R1234yf, R1234ze, R454C, R455A.
EN 378 and the Swedish Cooling Standard provide good guidance for safe installation and operation.
