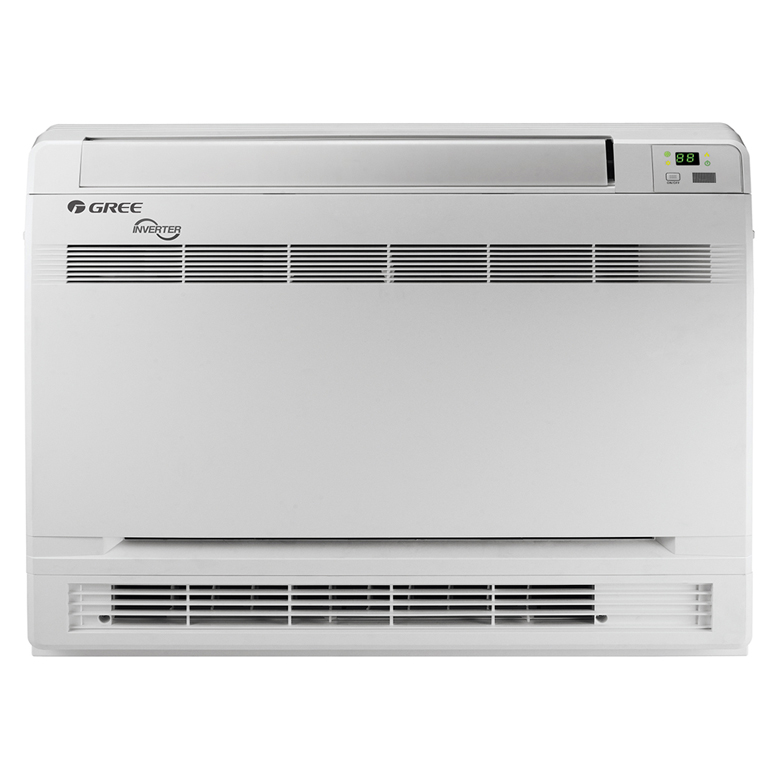

Gree R32 Inv Console 5.2kW Ind
Product code:
AC7423/I
Manufacturer code
GEH18AAK6DNA1FI
| Product Group : | Floor Console |
|---|
General
| Product Group : | Floor Console |
|---|
Additional Info
| Family : | Gree Floor Console |
|---|---|
| Indoor/ Outdoor/ Other : | Indoor |
| Single Split / Multi Split : | Single Split |
Air Volume/Air Flow
| Air Flow : | 698 m³/h |
|---|
Connectivity
| Pre-Equipped Wifi : | Yes |
|---|
Cooling Capacity
| Cooling Capacity : | 5.2 kW |
|---|---|
| Cooling Capacity (Min/Max) : | 1.26/6.6 kW |
| Cooling Capacity (Min/Rated/Max) : | 1.26/5.2/6.6 kW |
Electrical
| Fuse Protection : | 13 A |
|---|---|
| Voltage : | 230 V |
Energy Efficiency/Performance
| COP : | 3.55 |
|---|---|
| Energy Label : | A++ |
| SCOP : | 4 |
| SEER : | 6.6 |
General Information
| Model Number : | GEH18AA-K6DNA1F |
|---|
Heating Capacity
| Heating Capacity : | 5.33 kW |
|---|---|
| Heating Capacity (Min/Rated/Max) : | 1.12/5.33/6.8 kW |
| Heating Capacity Min/Max : | 1.12/6.8 kW |
Indoor Unit Attributes
| Depth (IU) : | 215 mm |
|---|---|
| Height (IU) : | 600 mm |
| Net Weight (IU) : | 15.5 kg |
| Weight (IU) : | 15.5 kg |
| Width (IU) : | 700 mm |
Measurements
| Dimension : | 600x700x215 mm |
|---|---|
| Weight : | 15.5 kg |
Pipes
| Max Height Difference : | 10 m |
|---|---|
| Max Pipe Length Without Additional Refrigerant : | 10 m |
| Max Pipe Run : | 15 m |
| Pipe Dimension : | 6.35 x 12.50 mm |
R32 Performances
| R32 Heating Capacity Max : | 6.8 kW |
|---|---|
| R32 Heating Capacity Min : | 1.12 kW |
| R32 Heating Capacity Rated : | 5.33 kW |
| R32 Power Input Rated Heating : | 1.52 kW |
| R32 SCOP : | 3.35 |
| R32 SEER : | 3.29 |
R32 Performances Heating
| R32 Power Input Rated Cooling : | 1.575 kW |
|---|
Refrigerant
| Additional Charge : | 20 g/m |
|---|---|
| Refrigerant : | R32 |
| Refrigerant Charge : | 0.95 kg |
| Refrigerant Pipe Size : | 6.35x12.50 mm |
Sound Power/Pressure
| Sound Power Level : | 41 dB(A) |
|---|---|
| Sound Pressure Level : | 31 dB(A) |
| Sound Pressure Level (Low/Medium/High/Quiet) : | 31/47 dB(A) |
Temperature
| Outdoor Operating Temp. Range (Cooling) : | -15~43 °C |
|---|---|
| Outdoor Operating Temp. Range (Heating) : | -22~24 °C |
