Aspen Mini Aqua Silent Pump
Product code:
T0937
Manufacturer code
FP3326
| Product Group : | Condensate Pumps |
|---|
General Information
| Product Group : | Condensate Pumps |
|---|---|
| Max Water Flow : | 12 L/h |
| Maximum Head : | 10 m |
| Model Number : | MS-957 |
Condensate Pumps
| Flow Rate at 0 m : | 12 L/h |
|---|---|
| Max Discharge Head : | 10 m |
| Max Flow Rate : | 12 L/h |
| Max Suction Head : | 2 m |
| Max Water Temperature : | 40 °C |
| Pump Height : | 28 mm |
| Pump Length : | 183 mm |
| Pump Width : | 28 mm |
Electrical
| Power Supply : | 230/1/50 V/Ph/Hz |
|---|
Measurements
| Weight : | 0.18 kg |
|---|
Pipes
| Max Height Difference : | 10 m |
|---|
Sound Power/Pressure
| Sound Power Level : | 19 dB(A) |
|---|---|
| Sound Pressure Level @ 1 Meters : | 19 dB(A) |
Temperature
| Max Condensate Temperature : | 40 °C |
|---|
Product information

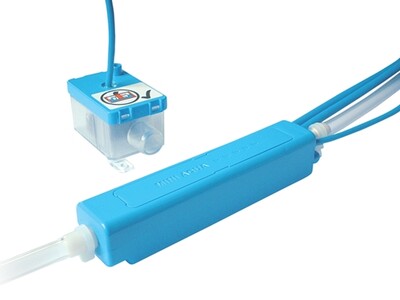

Aspen Silent + Mini Aqua Pump.
| File name | Extension | Size |
|---|---|---|
| Technical literature | 593.54 KB | |
| Installation Manual | 815.98 KB |
