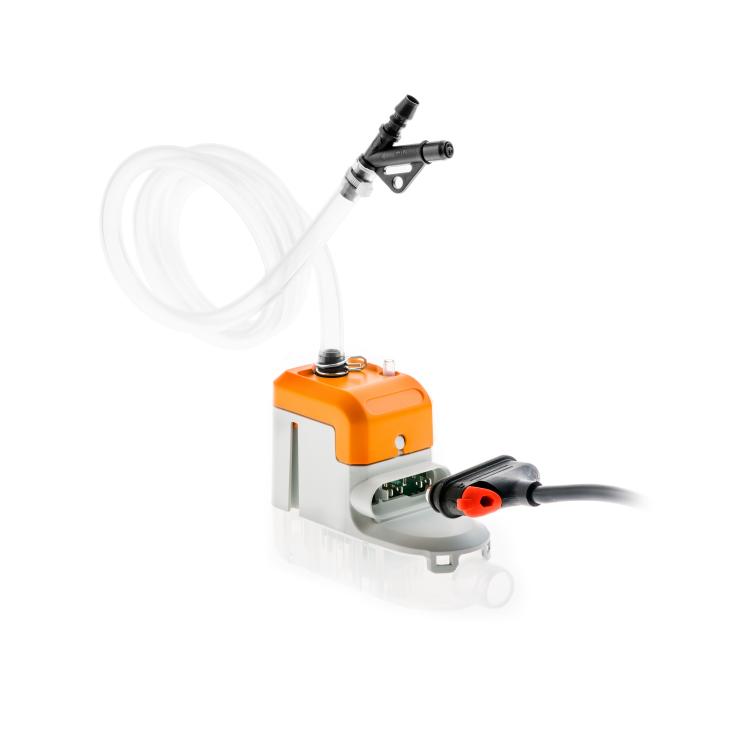

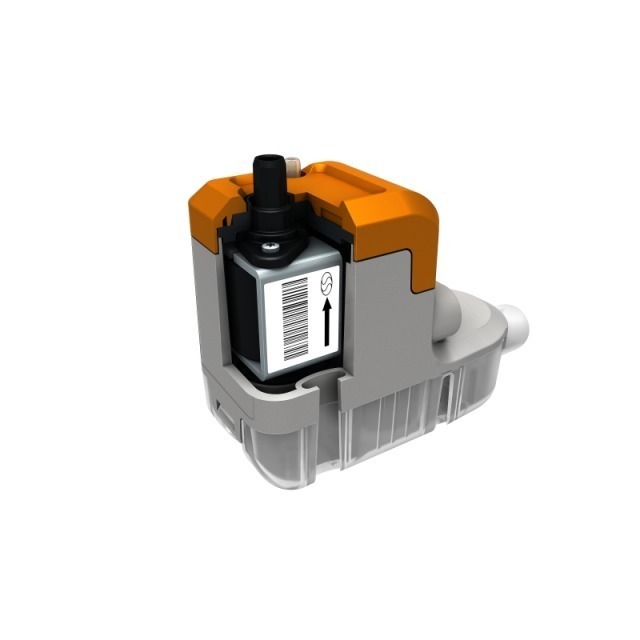

Si-10 Universal (Elbow) Condensate Pump
Product code:
T0948
Manufacturer code
Si10CE03UN23
General Information
| Product Group : | Condensate Pumps |
|---|---|
| Safety Switch : | NC 8A resistive - 250 V |
Condensate Pumps

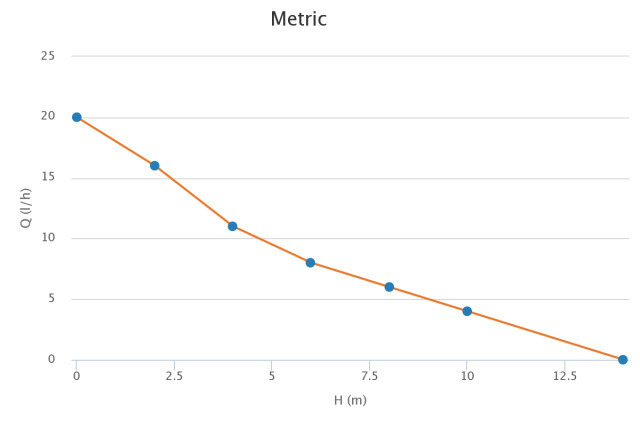

| Max Discharge Head : | 10 m |
|---|---|
| Max Flow Rate : | 19 L/h |
Electrical
| Power Supply : | 230/1/50 V/Ph/Hz |
|---|
Measurements
| Height : | 76 mm |
|---|---|
| Length : | 96 mm |
| Width : | 44 mm |
Sound Power/Pressure
| Sound Pressure Level : | 23 dB(A) |
|---|
Product information
| File name | Extension | Size |
|---|---|---|
| Technical literature | 809.17 KB |
