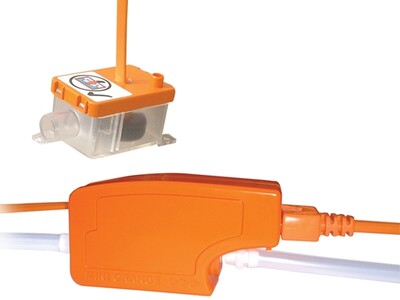

Maxi Orange Condensate Pump
Product code:
T0941
Manufacturer code
157AS00157=FP2210
| Product Group : | Condensate Pumps |
|---|
General
| Product Group : | Condensate Pumps |
|---|
Condensate Pumps
| Flow Rate at 0 m : | 35 L/h |
|---|---|
| Max Discharge Head : | 15 m |
| Max Flow Rate : | 35 L/h |
| Max Suction Head : | 2 m |
Electrical
| Current : | 0.11 A |
|---|---|
| IP Class : | IP21 |
| Power Supply : | 230/1/50-60 V/Ph/Hz |
General Information
| Model Number : | FP2210 |
|---|---|
| Type : | Condensate water pump |
Logistical Information
| Commodity Code : | 84138100 |
|---|---|
| Country Of Origin : | CHN |
Measurements
| Depth : | 122 mm |
|---|---|
| Height : | 66 mm |
| Length : | 122 mm |
| Width : | 44 mm |
Pressure
| Water Flow Pressure : | 35 L/h |
|---|
Sound Power/Pressure
| Sound Pressure Level : | 35 dB(A) |
|---|
Switch
| Safety Switch : | max. 3 |
|---|
Temperature
| Max Condensate Temperature : | 40 °C |
|---|
Product information
Need more performance? The Maxi Orange pump is designed for larger units and gives you extra power when you need it.
• High power motor
• Superior performance
• Submersible secondary reservoir included
• High power motor
• Superior performance
• Submersible secondary reservoir included
