Delta Pack
Product code:
T0952
Manufacturer code
DP10CE05UN23
| Product Group : | Condensate Pumps |
|---|
General
| Product Group : | Condensate Pumps |
|---|
Alarm
| Alarm : | 8(A) |
|---|
Capacity
| Capacity : | 20 kW |
|---|
Condensate Pumps

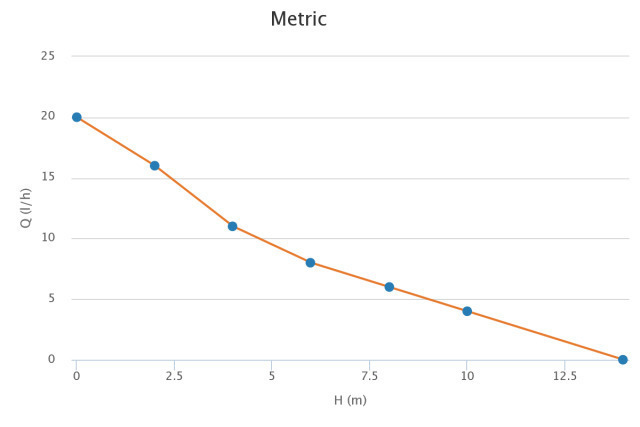

| Max Discharge Head : | 10 m |
|---|---|
| Max Flow Rate : | 20 L/h |
Electrical
| IP Class : | IPX4 |
|---|---|
| Power Input : | 14 W |
| Power Supply : | 230/1/50-60 V/Ph/Hz |
General Information
| Colour : | RAL 9003 Signal White |
|---|---|
| Model Number : | DP10CE05UN23 |
Measurements
| Height : | 60 mm |
|---|---|
| Length : | 750 mm |
| Weight : | 1.55 kg |
| Width : | 80 mm |
Sound Power/Pressure
| Sound Pressure Level LP 1 m : | 22 dB(A) |
|---|
Product information
| File name | Extension | Size |
|---|---|---|
| Technical Literature | 2.2 MB | |
| Data Book | 276.07 KB |
