Mini Lime Silent Pump
Product code:
T0943
Manufacturer code
FP3312
| Product Group : | Condensate Pumps |
|---|
General
| Product Group : | Condensate Pumps |
|---|
Condensate Pumps
| Flow Rate at 1 m : | 12 L/h |
|---|---|
| Max Discharge Head : | 10 m |
| Max Flow Rate : | 12 L/h |
Electrical
| Current : | 0.1 A |
|---|---|
| IP Class : | IP24 |
| Power Supply : | 230/1/50-60 V/Ph/Hz |
Features
| Thermal Protection : | Yes |
|---|
General Information
| Max Lift : | 10 m |
|---|---|
| Model Number : | FP3312 |
| Type : | Condensate water pump |
Logistical Information
| Commodity Code : | 84138100 |
|---|---|
| Country Of Origin : | GBR |
Measurements
| Depth : | 99 mm |
|---|---|
| Height : | 114 mm |
| Width : | 44 mm |
Pressure
| Water Flow Pressure : | 12 L/h |
|---|
Sound Power/Pressure
| Pump Sound Level In App : | 20 dB(A) |
|---|---|
| Sound Pressure Level : | 20 dB(A) |
| Sound Pressure Level @ 1 Meters : | 20 dB(A) |
Switch
| Safety Switch : | 5.0 A NC/NO |
|---|
Product information
The next generation Silent + Mini Lime features an anti-vibration damper and built-in sound-absorbing materials, as well as a quick-release container. You can also commission the pump on site and check its operation via the LED system in the tank.
• Anti-vibration damping
• Pump sits at an angle
• LEDs provide visual indication of operation
• Anti-vibration damping
• Pump sits at an angle
• LEDs provide visual indication of operation
| File name | Extension | Size |
|---|---|---|
| Technical Literature | 282.55 KB |
| Product Number | Manufacturer product number | Technical data | Price | Availability |
|---|---|---|---|---|
|
157AS00233
|
Aspen Silent + Mini Orange
|
Available after log in
|
Available after log in
|
|
|

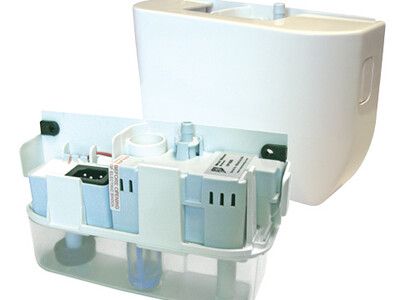

FP1080
|
Aspen Mini Blanc
|
Available after log in
|
Available after log in
|
|
|
157AS00157=FP2210
|
Maxi Orange Condensate Pump
|
Available after log in
|
Available after log in
|
|
|

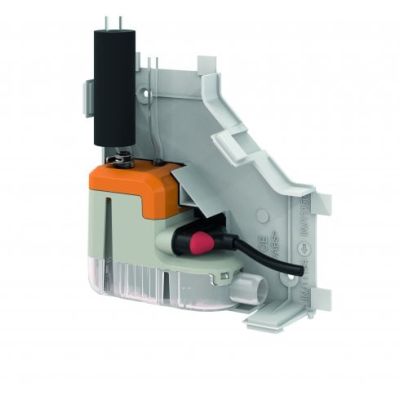

DP10CE05UN23
|
Delta Pack
|
Available after log in
|
Available after log in
|
|
|
FP2082
|
Aspen Universal Pump
|
Available after log in
|
Available after log in
|
|
|
FP3312
|
Mini Lime Silent Pump
|
Available after log in
|
Available after log in
|
|
|

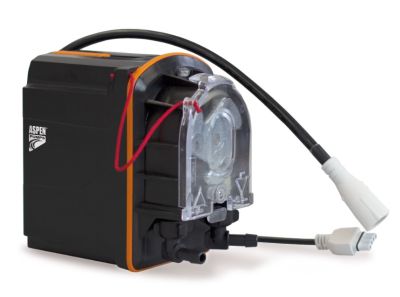

FP3390
|
Peri Pro Air – 15LPH Temperature Sensor Activated
|
Available after log in
|
Available after log in
|
|
|
FP3326
|
Aspen Mini Aqua Silent Pump
|
Available after log in
|
Available after log in
|
|
|

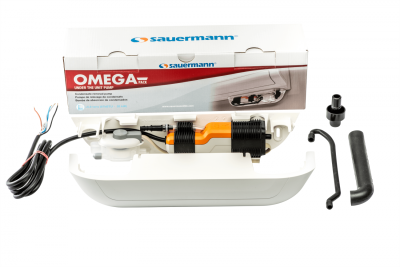

OMEGAPACK
|
Si-20 Omega Under Unit Pump
|
Available after log in
|
Available after log in
|
|
|
FP3450
|
Aspen Silent+ Mini White Pump 45 L/H 16Db
|
Available after log in
|
Available after log in
|
|
|
SI10CE03UN23
|
Sauermann SI10 Universal Replacement kit - pump/tube/bracket/cable/install kit
|
Available after log in
|
Available after log in
|
|
|

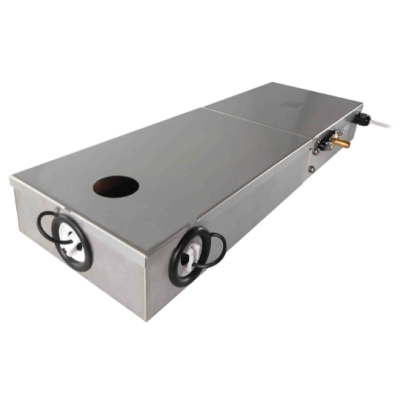

FP3393
|
ASPEN Pump LP Cold Cabinet FP3393
|
Available after log in
|
Available after log in
|
|
|

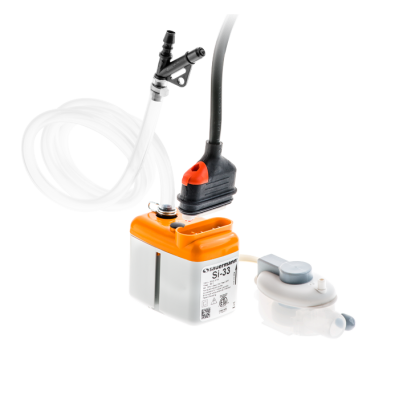

SI33CE01UN23
|
Si-33 Condensate Pump
|
Available after log in
|
Available after log in
|
|
|

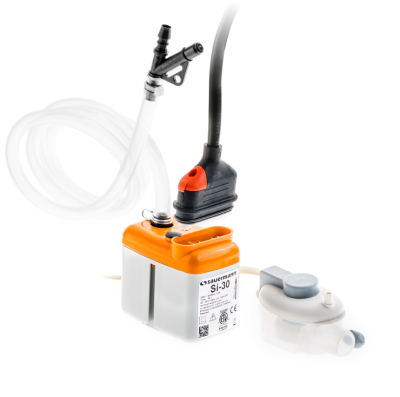

SI30CE01UN23
|
Si-30 Condensate Pump
|
Available after log in
|
Available after log in
|
|
|

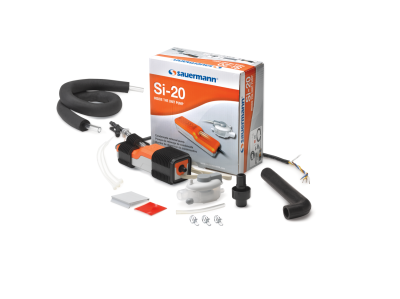

SI20CE01UN23
|
