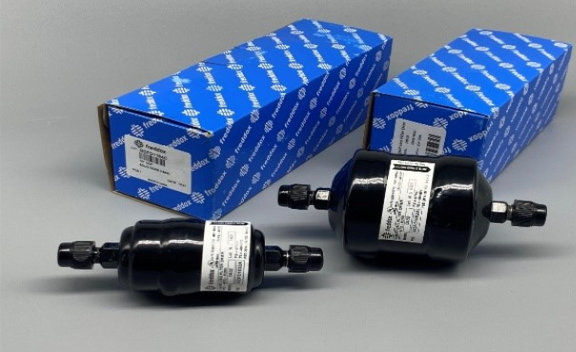

FREDDOX FILTER DRIER SOLID CORE DSC032 1/4" SAE
Product code:
FD3001
Manufacturer code
DSC032
| Product Group : | Liquid Line Driers |
|---|
General
| Product Group : | Liquid Line Driers |
|---|
Absorption Capacity
| Absorption Capacity R134a 24°C [g H2O] : | 5.6 kW |
|---|---|
| Absorption Capacity R134a 52°C [g H2O] : | 4.8 kW |
| Absorption Capacity R404A/R507 24°C [g H2O] : | 5.7 kW |
| Absorption Capacity R404A/R508 52°C [g H2O] : | 5.3 kW |
| Absorption Capacity R407C 24°C [g H2O] : | 4.6 kW |
| Absorption Capacity R407C 52°C [g H2O] : | 3.7 kW |
| Absorption Capacity R410A 24°C [g H2O] : | 5 kW |
| Absorption Capacity R410A 52°C [g H2O] : | 4 |
Connections
| Connection Size : | 1/4 in, 6.35 mm |
|---|---|
| Connection Type : | Flare |
| Inlet Connection Size : | 1/4 in, 6.35 mm |
| Inlet Type : | Flare |
| Outlet Connection Size : | 1/4 in, 6.35 mm |
| Outlet Type : | Flare |
Cooling Capacity ∆P 0.07 Bar
| Cooling Capacity ∆P 0.07 Bar R448A : | 6.801 kW |
|---|---|
| Cooling Capacity ∆P 0.07 Bar R449A : | 6.708 kW |
| Cooling Capacity ∆P 0.07 Bar R507A : | 4.953 kW |
Drying Capacity
| Drying Capacity R134a 24°C [kg refrigerant] : | 6.02 |
|---|---|
| Drying Capacity R134a 52°C [kg refrigerant] : | 5.16 |
| Drying Capacity R404A/R507 24°C [kg refrigerant] : | 6.13 |
| Drying Capacity R404A/R507 52°C [kg refrigerant] : | 5.70 |
| Drying Capacity R407C 24°C [kg refrigerant] : | 4.95 |
| Drying Capacity R407C 52°C [kg refrigerant] : | 3.98 |
| Drying Capacity R410A 24°C [kg refrigerant] : | 5.38 |
| Drying Capacity R410A 52°C [kg refrigerant] : | 4.30 |
General Information
| Model Number : | DSC032 |
|---|
Material
| Body Material : | Steel |
|---|---|
| Connection Material : | Steel |
Measurements
| Diameter : | 41.5 mm |
|---|---|
| Length : | 109 mm |
| Weight : | 0.195 kg |
Pressure
| Max Pressure : | 47 Bar |
|---|
R1234yf Performances
| Cooling Capacity ∆P 0.07 Bar R1234yf : | 5.187 kW |
|---|
R1234ze Performances
| Cooling Capacity ∆P 0.07 Bar R1234ze : | 6.318 kW |
|---|
R134A Performances
| Cooling Capacity ∆P 0.07 Bar R134a : | 7.15 kW |
|---|
R32 Performances
| Cooling Capacity ∆P 0.07 Bar R32 : | 11.02 kW |
|---|
R404A Performances
| Cooling Capacity ∆P 0.07 Bar R404A : | 5.101 kW |
|---|
R407C Performances
| Cooling Capacity ∆P 0.07 Bar R407C : | 7.371 kW |
|---|
R410A Performances
| Cooling Capacity ∆P 0.07 Bar R410A : | 7.558 kW |
|---|
R450A Performances
| Cooling Capacity ∆P 0.07 Bar R450A : | 5.709 kW |
|---|
R452A Performances
| Cooling Capacity ∆P 0.07 Bar R452A : | 5.16 kW |
|---|
Refrigerant
| Refrigerant : | HC, HFC, HFO |
|---|
Temperature
| Temperature Range : | -40-80 °C |
|---|
Product information
Freddox filter driers offer a high level of protection for refrigeration and air-conditioning systems liquid Line. They are specifically designed to capture and retain moisture and solid particles from circulating throughout the system, which can create acid that causes damage to the compressor and other components piped within the circuit. Freddox driers are available in version to be brazed (DSC S), or screwed with male/male (DSC) or female/male (DSC FM) SAE connexions to answer every configuration of installations .
| File name | Extension | Size |
|---|---|---|
| User Manual | 1.87 MB | |
| Brochures | 870.76 KB |
| Product Number | Manufacturer product number | Technical data | Price | Availability |
|---|---|---|---|---|
|
DSC032
|
FREDDOX FILTER DRIER SOLID CORE DSC032 1/4" SAE
|
Available after log in
|
Available after log in
|
|
|
DSC032S
|
FREDDOX FILTER DRIER SOLID CORE DSC032S 1/4" ODF
|
Available after log in
|
Available after log in
|
|
|
DSC052
|
FREDDOX FILTER DRIER SOLID CORE DSC052 1/4" SAE
|
Available after log in
|
Available after log in
|
|
|
DSC052S
|
FREDDOX FILTER DRIER SOLID CORE DSC052S 1/4" ODF
|
Available after log in
|
Available after log in
|
|
|
DSC053
|
FREDDOX FILTER DRIER SOLID CORE DSC053 3/8" SAE
|
Available after log in
|
Available after log in
|
|
|
DSC053S
|
FREDDOX FILTER DRIER SOLID CORE DSC053S 3/8" ODF
|
Available after log in
|
Available after log in
|
|
|
DSC082
|
FREDDOX FILTER DRIER SOLID CORE DSC082 1/4" SAE
|
Available after log in
|
Available after log in
|
|
|
DSC082S
|
FREDDOX FILTER DRIER SOLID CORE DSC082S 1/4" ODF
|
Available after log in
|
Available after log in
|
|
|
DSC083
|
FREDDOX FILTER DRIER SOLID CORE DSC083 3/8" SAE
|
Available after log in
|
Available after log in
|
|
|
DSC083S
|
FREDDOX FILTER DRIER SOLID CORE DSC083S 3/8" ODF
|
Available after log in
|
Available after log in
|
|
|
DSC084
|
FREDDOX FILTER DRIER SOLID CORE DSC084 1/2" SAE
|
Available after log in
|
Available after log in
|
|
|
DSC162
|
FREDDOX FILTER DRIER SOLID CORE DSC162 1/4" SAE
|
Available after log in
|
Available after log in
|
|
|
DSC163
|
FREDDOX FILTER DRIER SOLID CORE DSC163 3/8" SAE
|
Available after log in
|
Available after log in
|
|
|
DSC163S
|
FREDDOX FILTER DRIER SOLID CORE DSC163S 3/8" ODF
|
Available after log in
|
Available after log in
|
|
|
DSC164
|
FREDDOX FILTER DRIER SOLID CORE DSC164 1/2" SAE
|
Available after log in
|
Available after log in
|
|
|
DSC164S
|
FREDDOX FILTER DRIER SOLID CORE DSC164S 1/2" ODF
|
Available after log in
|
Available after log in
|
|
|
DSC165
|
FREDDOX FILTER DRIER SOLID CORE DSC165 5/8" SAE
|
Available after log in
|
Available after log in
|
|
|
DSC165S
|
FREDDOX FILTER DRIER SOLID CORE DSC165S 5/8" ODF
|
Available after log in
|
Available after log in
|
|
|
DSC303
|
FREDDOX FILTER DRIER SOLID CORE DSC303 3/8" SAE
|
Available after log in
|
Available after log in
|
|
|
DSC304
|
FREDDOX FILTER DRIER SOLID CORE DSC304 1/2" SAE
|
Available after log in
|
Available after log in
|
|
|
DSC305
|
FREDDOX FILTER DRIER SOLID CORE DSC305 5/8" SAE
|
Available after log in
|
Available after log in
|
|
|
DSC414
|
FREDDOX FILTER DRIER SOLID CORE DSC414 1/2" SAE
|
Available after log in
|
Available after log in
|
|
|
DSC415
|
FREDDOX FILTER DRIER SOLID CORE DSC415 5/8" SAE
|
Available after log in
|
Available after log in
|
|
|
DSC084S
|
FREDDOX FILTER DRIER SOLID CORE DSC084S 1/2" ODF
|
Available after log in
|
Available after log in
|
|
|
404401
|

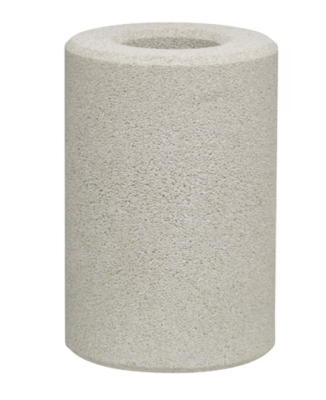

CATCH-ALL HI CAPACITY POE CORE RCW-48
|
Available after log in
|
Available after log in
|
|
|
400000
|

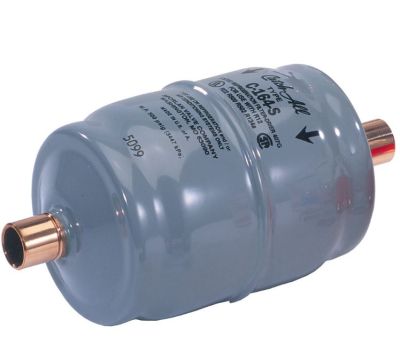

CATCH-ALL C-032 DRIER
|
Available after log in
|
Available after log in
|
|
|
401048
|
CATCH-ALL C-163 DRIER
|
Available after log in
|
Available after log in
|
|
|
400536
|
CATCH-ALL C-084 DRIER
|
Available after log in
|
Available after log in
|
|
|
400416
|
CATCH-ALL C-082 DRIER
|
Available after log in
|
Available after log in
|
|
|
401000
|
CATCH-ALL C-162 DRIER
|
Available after log in
|
Available after log in
|
|
|
400288
|
CATCH-ALL C-053 DRIER
|
Available after log in
|
Available after log in
|
|
|
400472
|
CATCH-ALL C-083 DRIER
|
Available after log in
|
Available after log in
|
|
|
401128
|
CATCH-ALL C-164 DRIER
|
Available after log in
|
Available after log in
|
|
|
401360
|
Filter Drier C-304 1/2"Flare 401360
|
Available after log in
|
Available after log in
|
|
|
401624
|
Filter Drier C-414 1/2" SAE
|
Available after log in
|
Available after log in
|
|
|
401216
|
CATCH-ALL C-165 DRIER
|
Available after log in
|
Available after log in
|
|
|
401408
|
Catch All C-305 5/8"Flare 401408
|
Available after log in
|
Available after log in
|
|
|
401656
|
Catch All C-415 5/8"Flare 401656
|
Available after log in
|
Available after log in
|
|
|
400052
|
Sporlan C032S Drier 1/4" Solder
|
Available after log in
|
Available after log in
|
|
|
401328
|
CATCH-ALL C-303 DRIER
|
Available after log in
|
Available after log in
|
|
|
400200
|
Catch All C052 Drier 1/4" Flare
|
Available after log in
|
Available after log in
|
|
|
400437
|
CATCH-ALL C-084S DRIER
|
Available after log in
|
Available after log in
|
|
|
401023
|
CATCH-ALL C-164S DRIER
|
Available after log in
|
Available after log in
|
|
|
401484
|
Catch All C-306 3/4 SAE
|
Available after log in
|
Available after log in
|
|
|
400249
|
CATCH-ALL C-052S DRIER
|
Available after log in
|
Available after log in
|
|
|
400429
|
CATCH-ALL C-082S DRIER
|
Available after log in
|
Available after log in
|
|
|
400329
|
CATCH-ALL C-053S DRIER
|
Available after log in
|
Available after log in
|
|
|
400503
|
CATCH-ALL C-083S DRIER
|
Available after log in
|
Available after log in
|
|
|
401021
|
CATCH-ALL C-163S DRIER
|
Available after log in
|
Available after log in
|
|
|
401035
|
CATCH-ALL C-165S DRIER
|
Available after log in
|
Available after log in
|
|
|
401505S
|
Catch All Drier C417s 7/8 ODS
|
Available after log in
|
Available after log in
|
|
|
402431
|
CATCH-ALL SHELL 1-3/8" C-14411-G
|
Available after log in
|
Available after log in
|
|
|
402082
|
CATCH-ALL C-485-G 5/8 1C Shell
|
Available after log in
|
Available after log in
|
|
|
402109
|
CATCH-ALL C-487-G 7/8 1C Shell
|
Available after log in
|
Available after log in
|
|
|
402152
|
CATCH-ALL C-489-G 1.1/8 1C Shell
|
Available after log in
|
Available after log in
|
|
|
404360
|
CATCH-ALL CORE STANDARD RC-4864/RCA-48
|
Available after log in
|
Available after log in
|
|
|
404380
|
CATCH-ALL CHARCOAL BURNOUT (HIGH ACID) CORE RC-4864HH
|
Available after log in
|
Available after log in
|
|
|
402251
|
CATCH-ALL C-967-G 7/8 2C Shell
|
Available after log in
|
Available after log in
|
|
|
402289
|
CATCH-ALL C-969-G 1.1/8 2C Shell
|
Available after log in
|
Available after log in
|
|
|
402335
|
CATCH-ALL C-9611-G 1.3/8 2C Shell
|
Available after log in
|
Available after log in
|
|
|
404400
|
CATCH-ALL CORE RC-10098
|
Available after log in
|
Available after log in
|
|
|
480014
|
GASKETS AS-1704 for Replacement Cores
|
Available after log in
|
Available after log in
|
|
|
D114
|

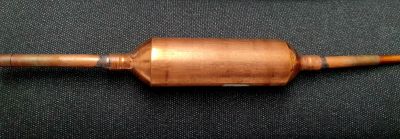

SERVICE DRIER 30gram (KX4) 3/8
|
Available after log in
|
Available after log in
|
|
|
D109
|

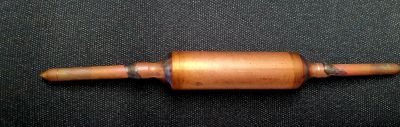

SERVICE DRIER 15gm (KX3) 1/4
|
Available after log in
|
Available after log in
|
|
|
D111
|

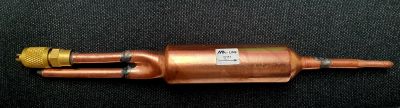

SERVICE DRIER 2/TAIL W/ACCESS
|
