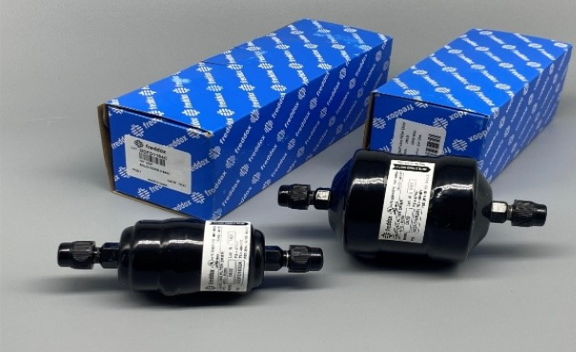

FREDDOX FILTER DRIER SOLID CORE DSC162 1/4" SAE
Product code:
FD3004
Manufacturer code
DSC162
General Information
| Product Group : | Liquid Line Driers |
|---|---|
| Model Number : | DSC162 |
Connections
| Connection Size : | 1/4 in, 6.35 mm |
|---|---|
| Connection Type : | flare |
| Inlet Connection Size : | 1/4 in, 6.35 mm |
| Inlet Type : | Flare |
| Outlet Connection Size : | 1/4 in, 6.35 mm |
| Outlet Type : | Flare |
Cooling Capacity ∆P 0.07 Bar
| Cooling Capacity ∆P 0.07 Bar R32 : | 12.72 kW |
|---|---|
| Cooling Capacity ∆P 0.07 Bar R134a : | 8.25 kW |
| Cooling Capacity ∆P 0.07 Bar R404A : | 5.886 kW |
| Cooling Capacity ∆P 0.07 Bar R407C : | 8.505 kW |
| Cooling Capacity ∆P 0.07 Bar R410A : | 8.721 kW |
| Cooling Capacity ∆P 0.07 Bar R448A : | 7.848 kW |
| Cooling Capacity ∆P 0.07 Bar R449A : | 7.74 kW |
| Cooling Capacity ∆P 0.07 Bar R450A : | 6.588 kW |
| Cooling Capacity ∆P 0.07 Bar R452A : | 5.9 kW |
| Cooling Capacity ∆P 0.07 Bar R507A : | 5.715 kW |
| Cooling Capacity ∆P 0.07 Bar R1234yf : | 5.985 kW |
| Cooling Capacity ∆P 0.07 Bar R1234ze : | 7.29 kW |
Material
| Body Material : | Steel |
|---|---|
| Connection Material : | Steel |
| Material Casing : | Steel |
Measurements
| Diameter : | 63.5 mm |
|---|---|
| Length : | 161 mm |
| Weight : | 0.700 kg |
Pressure
| Max Operating Pressure : | 47 Bar |
|---|---|
| Max Pressure : | 47 Bar |
Refrigerant
| Refrigerant : | HFC, HFO, R290 |
|---|
Temperature
| Medium Temperature Range : | -40-80 °C |
|---|---|
| Temperature Range : | -40-80 °C |
Product information
Freddox filter driers offer a high level of protection for refrigeration and air-conditioning systems liquid Line. They are specifically designed to capture and retain moisture and solid particles from circulating throughout the system, which can create acid that causes damage to the compressor and other components piped within the circuit. Freddox driers are available in version to be brazed (DSC S), or screwed with male/male (DSC) or female/male (DSC FM) SAE connexions to answer every configuration of installations .
