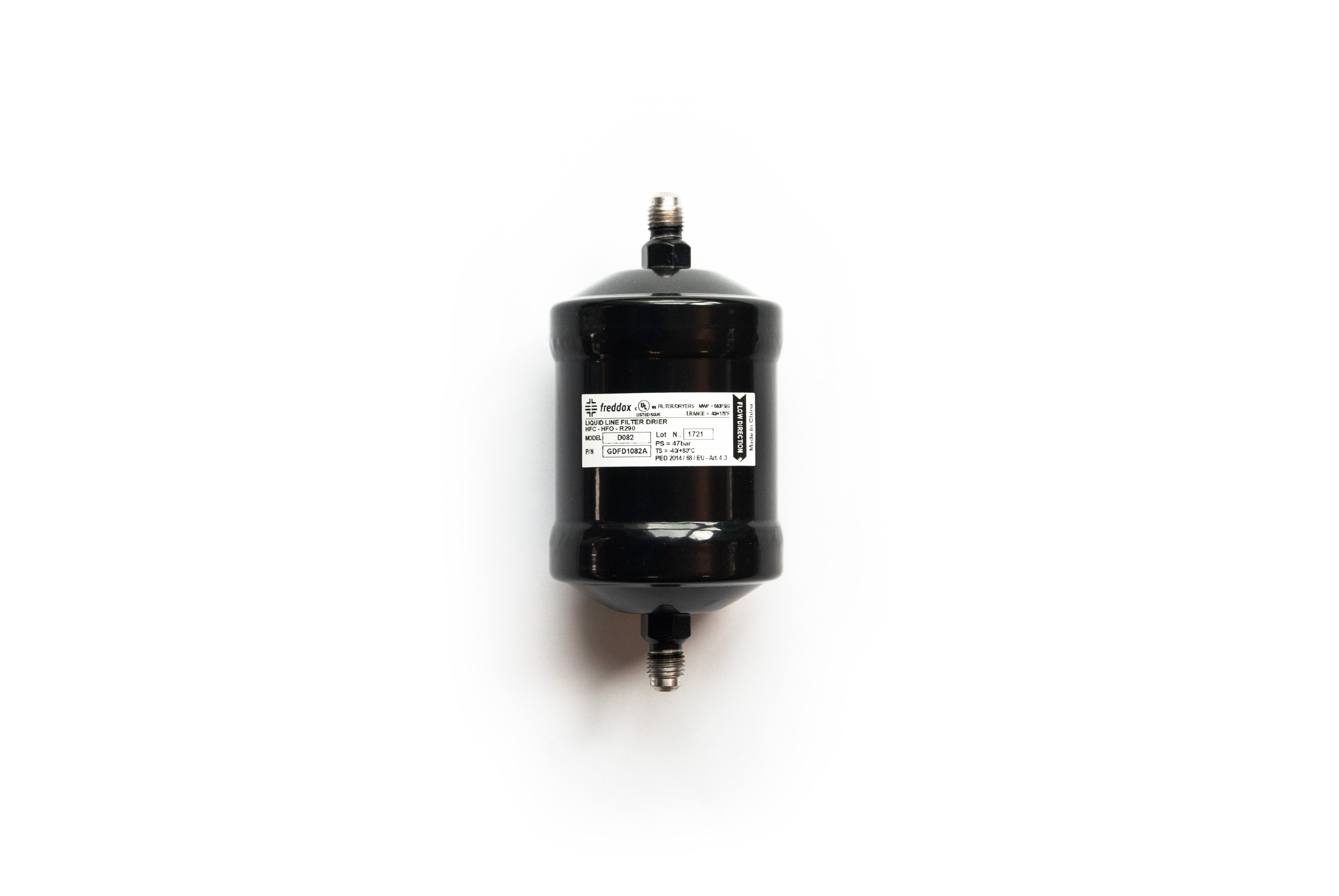

FREDDOX FILTER DRIER SOLID CORE DSC414 1/2" SAE
Product code:
FD3019
Manufacturer code
DSC414
| Product Group : | Liquid Line Driers |
|---|
General
| Product Group : | Liquid Line Driers |
|---|
Absorption Capacity
| Absorption Capacity R134a 24°C [g H2O] : | 103.2 kW |
|---|---|
| Absorption Capacity R134a 52°C [g H2O] : | 89 kW |
| Absorption Capacity R404A/R507 24°C [g H2O] : | 105.5 kW |
| Absorption Capacity R404A/R508 52°C [g H2O] : | 98 kW |
| Absorption Capacity R407C 24°C [g H2O] : | 84.5 kW |
| Absorption Capacity R407C 52°C [g H2O] : | 68.1 kW |
| Absorption Capacity R410A 24°C [g H2O] : | 92 kW |
| Absorption Capacity R410A 52°C [g H2O] : | 74.1 |
Connections
| Connection Size : | 1/2 in, 12 mm |
|---|---|
| Connection Type : | Flare |
| Inlet Connection Size : | 1/2 in, 12.7 mm |
| Inlet Type : | Flare |
| Outlet Connection Size : | 1/2 in, 12.7 mm |
| Outlet Type : | Flare |
Cooling Capacity ∆P 0.07 Bar
| Cooling Capacity ∆P 0.07 Bar R448A : | 34.70 kW |
|---|---|
| Cooling Capacity ∆P 0.07 Bar R449A : | 34.22 kW |
| Cooling Capacity ∆P 0.07 Bar R507A : | 25.27 kW |
Drying Capacity
| Drying Capacity R134a 24°C [kg refrigerant] : | 110.97 |
|---|---|
| Drying Capacity R134a 52°C [kg refrigerant] : | 95.70 |
| Drying Capacity R404A/R507 24°C [kg refrigerant] : | 113.44 |
| Drying Capacity R404A/R507 52°C [kg refrigerant] : | 105.38 |
| Drying Capacity R407C 24°C [kg refrigerant] : | 90.86 |
| Drying Capacity R407C 52°C [kg refrigerant] : | 73.23 |
| Drying Capacity R410A 24°C [kg refrigerant] : | 98.92 |
| Drying Capacity R410A 52°C [kg refrigerant] : | 79.68 |
General Information
| Model Number : | DSC414 |
|---|
Material
| Body Material : | Steel |
|---|---|
| Connection Material : | Steel |
Measurements
| Diameter : | 76 mm |
|---|---|
| Length : | 257 mm |
| Weight : | 2.000 kg |
Pressure
| Max Pressure : | 47 Bar |
|---|
R1234yf Performances
| Cooling Capacity ∆P 0.07 Bar R1234yf : | 26.46 kW |
|---|
R1234ze Performances
| Cooling Capacity ∆P 0.07 Bar R1234ze : | 32.23 kW |
|---|
R134A Performances
| Cooling Capacity ∆P 0.07 Bar R134a : | 36.49 kW |
|---|
R32 Performances
| Cooling Capacity ∆P 0.07 Bar R32 : | 56.27 kW |
|---|
R404A Performances
| Cooling Capacity ∆P 0.07 Bar R404A : | 26.02 kW |
|---|
R407C Performances
| Cooling Capacity ∆P 0.07 Bar R407C : | 37.61 kW |
|---|
R410A Performances
| Cooling Capacity ∆P 0.07 Bar R410A : | 38.56 kW |
|---|
R450A Performances
| Cooling Capacity ∆P 0.07 Bar R450A : | 29.13 kW |
|---|
R452A Performances
| Cooling Capacity ∆P 0.07 Bar R452A : | 26.34 kW |
|---|
Refrigerant
| Refrigerant : | HC, HFC, HFO |
|---|
Temperature
| Temperature Range : | -40-80 °C |
|---|
Product information

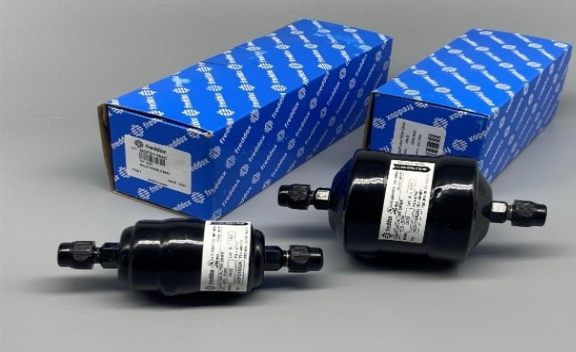

Freddox filter driers offer a high level of protection for refrigeration and air-conditioning systems liquid Line. They are specifically designed to capture and retain moisture and solid particles from circulating throughout the system, which can create acid that causes damage to the compressor and other components piped within the circuit. Freddox driers are available in version to be brazed (DSC S), or screwed with male/male (DSC) or female/male (DSC FM) SAE connexions to answer every configuration of installations .
