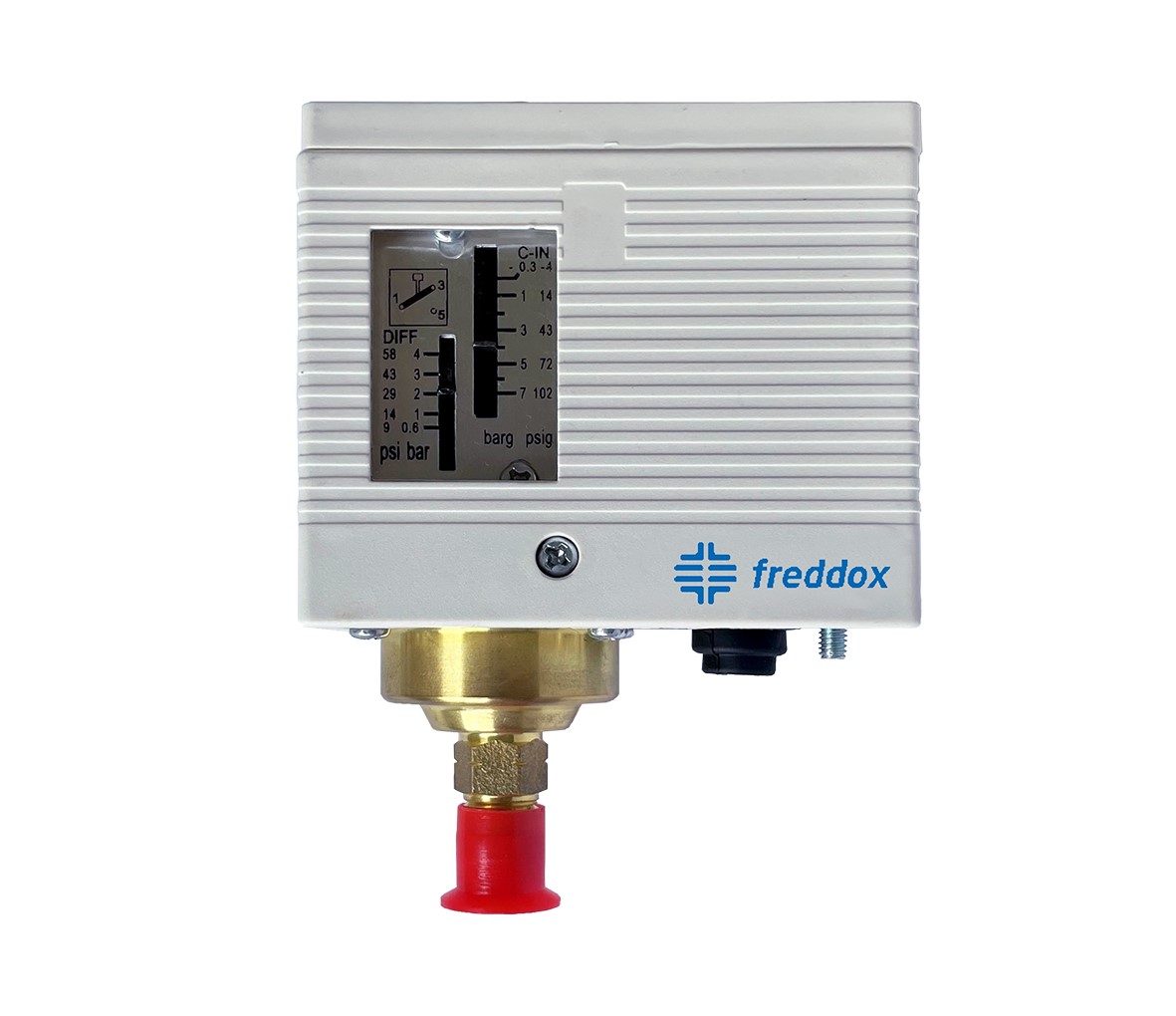

Pressure Control Switch HP Auto Reset
Product code:
FDG0053
Manufacturer code
D16P30A01MS2R1
| Product Group : | Mechanical |
|---|
General
| Product Group : | Mechanical |
|---|
Additional Info
| Family : | Single Pressure Control |
|---|
Connections
| Connection Size : | 1/4 in |
|---|---|
| Connection Type : | Male 7/16-20 UNF |
Electrical
| Contact Function : | SPDT |
|---|---|
| Contact Rating : | 16A |
| IP Class : | IP44 |
General Information
| Reset : | Auto |
|---|
Measurements
| Depth : | 48.7 mm |
|---|---|
| Height : | 100.5 mm |
| Width : | 80 mm |
Pressure
| Burst Pressure : | 140 Bar, 2030 Psi |
|---|---|
| Diff : | 2-8 Bar, 29-116 Psi |
| Diff Type : | Adjustable |
| Differential Pressure : | 2-8 Bar, 29-116 Psi |
| Differential Pressure Max : | 8 Bar, 116 Psi |
| Differential Pressure Min : | 2 Bar, 29 Psi |
| Max Pressure : | 35 Bar, 507 Psi |
| Pressure Range : | 7-31 Bar |
Temperature
| Max Ambient Temperature : | 55 °C |
|---|---|
| Min Ambient Temperature : | -40 °C |
Product information
Freddox Pressure switch offer a reliable compact electro-mechanical solution to operate safety as control functions on Refrigeration installation up to 3HP. They can be use for any pressure management, as for Fan control, Solenoid valves management or Compressor management , The Freddox pressure switches are equipped with SPDT contacts for an easier wiring and with standard male fittings for a faster connection.
