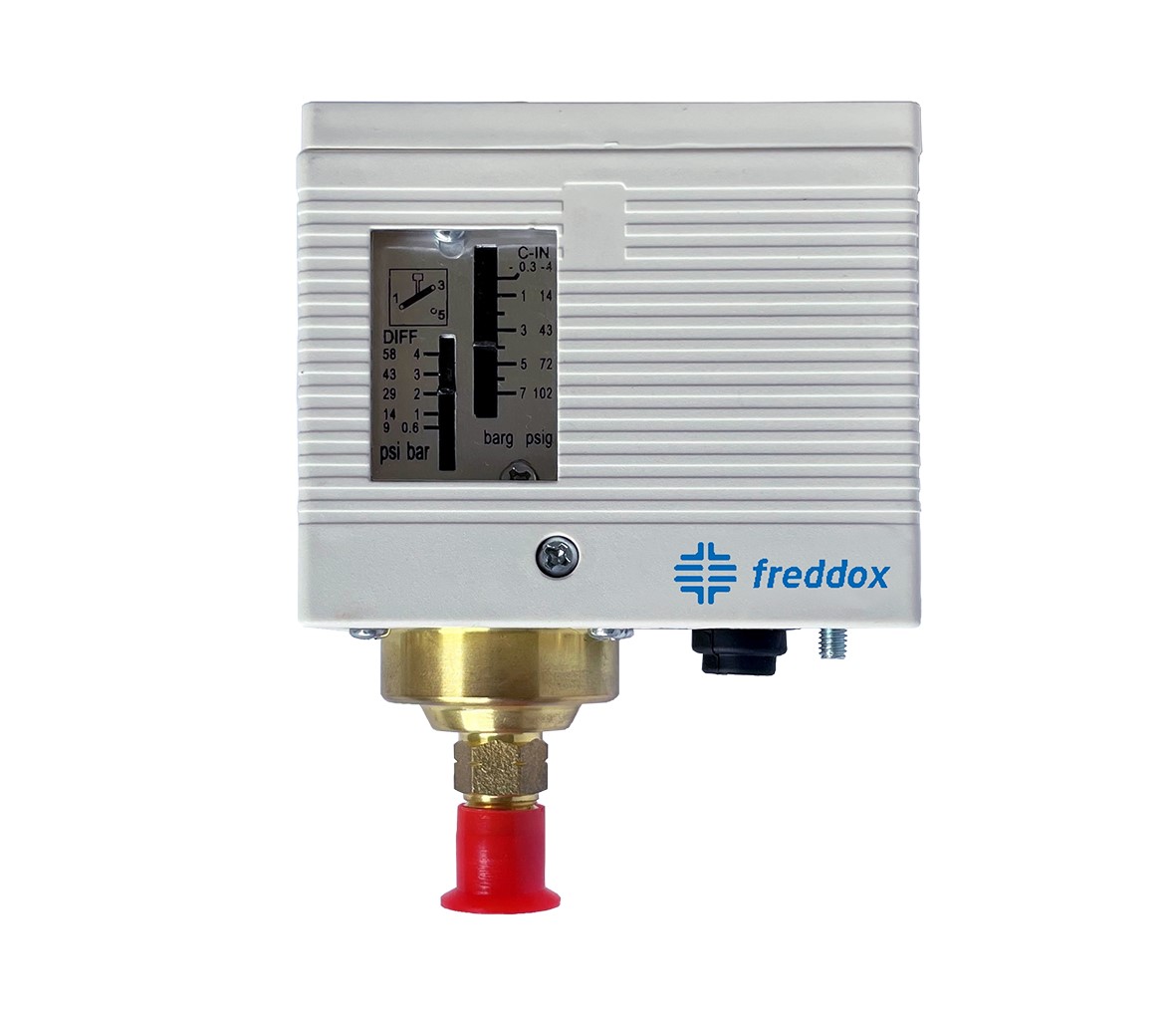

Pressure Control Switch LP Auto Reset
Product code:
FDG0050
Manufacturer code
D16P07A01MS2R1
| Product Group : | Mechanical |
|---|
General
| Product Group : | Mechanical |
|---|
Additional Info
| Family : | Single Pressure Control |
|---|
Connections
| Connection Size : | 1/4 in |
|---|---|
| Connection Type : | Male 7/16-20 UNF |
Electrical
| Contact Function : | SPDT |
|---|---|
| Contact Rating : | 16A |
| IP Class : | IP44 |
General Information
| Reset : | Auto |
|---|
Measurements
| Depth : | 48.7 mm |
|---|---|
| Height : | 106 mm |
| Width : | 80 mm |
Pressure
| Burst Pressure : | 80 Bar, 1160 Psi |
|---|---|
| Diff : | 0.6-4 Bar, 9-58 Psi |
| Diff Type : | Adjustable |
| Differential Pressure : | 0.6-4 Bar, 9-58 Psi |
| Differential Pressure Max : | 4 Bar, 58 Psi |
| Differential Pressure Min : | 0.6 Bar, 9 Psi |
| Max Pressure : | 17 Bar, 246 Psi |
| Pressure Range : | -0.3-7 Bar |
Temperature
| Max Ambient Temperature : | 55 °C |
|---|---|
| Min Ambient Temperature : | -40 °C |
Product information

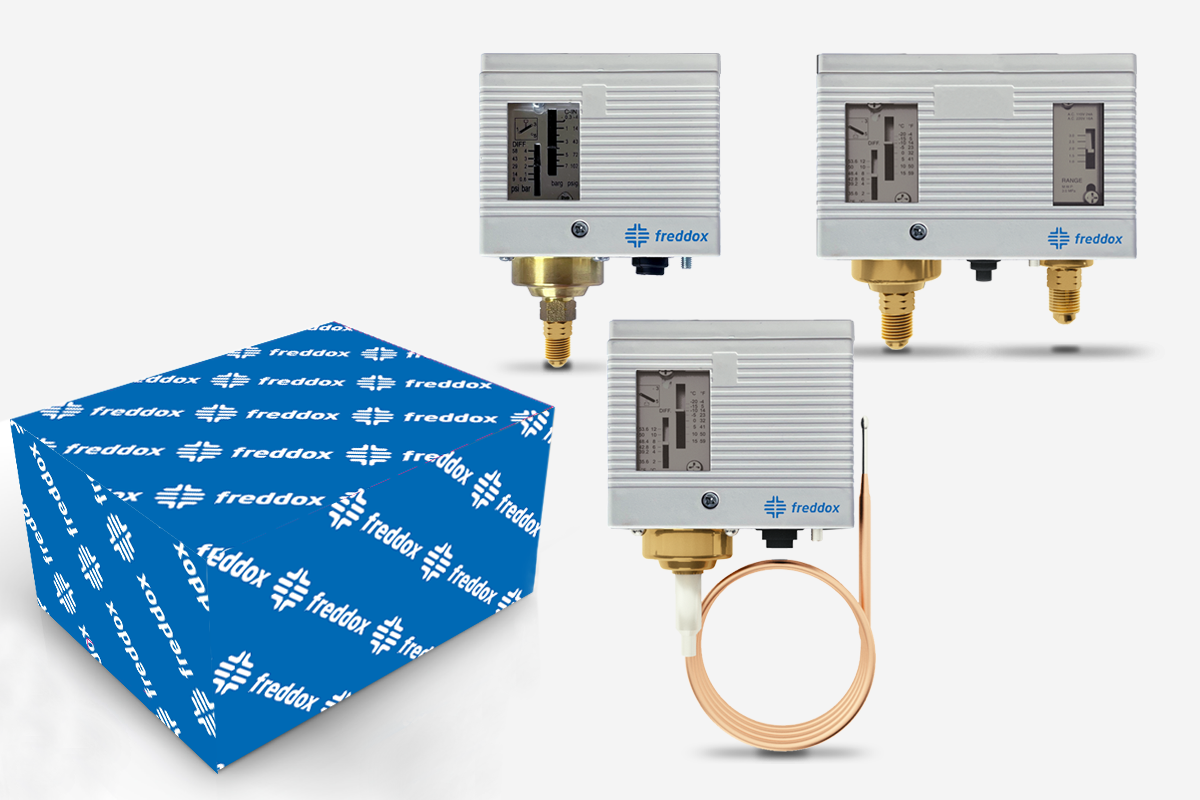

Freddox Pressure switch offer a reliable compact electro-mechanical solution to operate safety as control functions on Refrigeration installation up to 3HP. They can be use for any pressure management, as for Fan control, Solenoid valves management or Compressor management , The Freddox pressure switches are equipped with SPDT contacts for an easier wiring and with standard male fittings for a faster connection.
