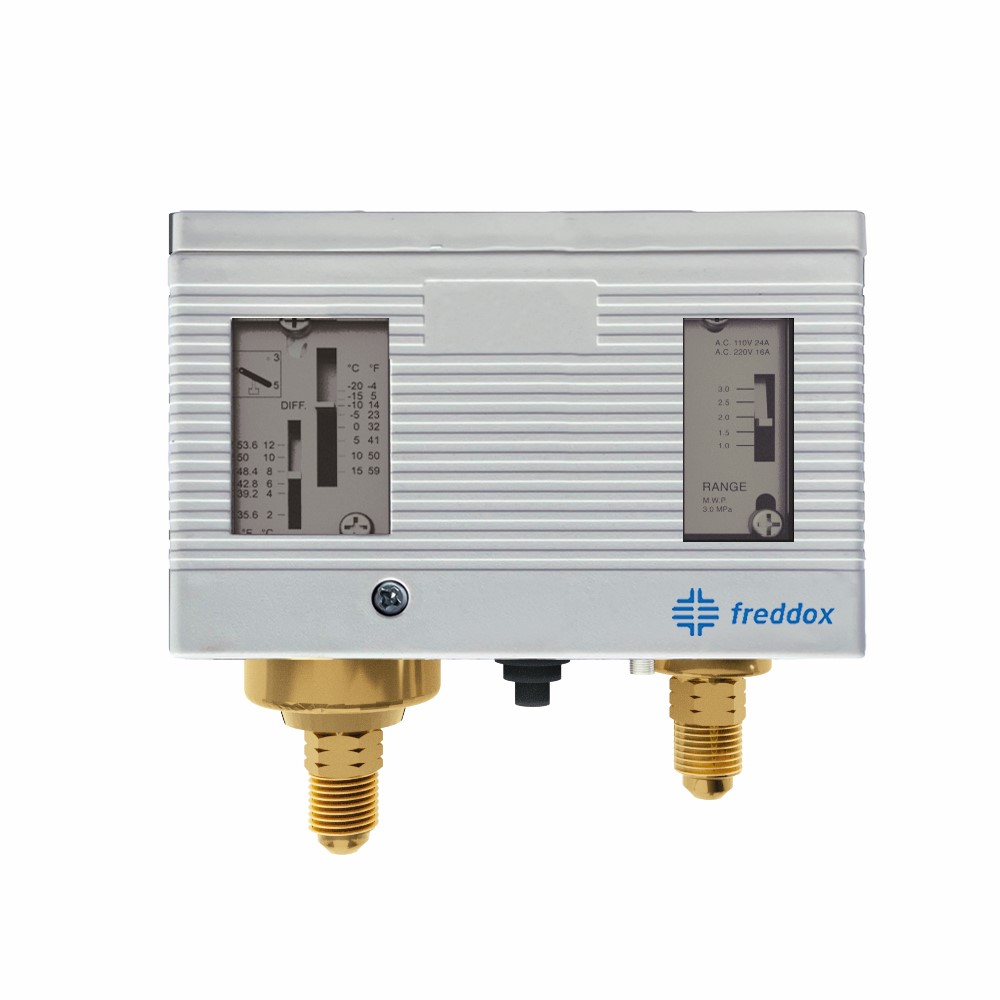

Pressure Control Switch HP/LP Manual/Auto Reset
Product code:
FDG0055
Manufacturer code
D17P30AM1MS2R1
| Product Group : | Mechanical |
|---|
General
| Product Group : | Mechanical |
|---|
Additional Info
| Family : | Dual Pressure Contol |
|---|
Connections
| Connection Size : | 1/4 in |
|---|---|
| Connection Type : | Male 7/16-20 UNF |
Electrical
| Contact Function : | SPDT |
|---|---|
| Contact Rating : | 16A |
| IP Class : | IP30 |
General Information
| Reset : | Auto/Manual |
|---|---|
| Reset Left Side : | Auto |
| Reset Right Side : | Manual |
Measurements
| Depth : | 53 mm |
|---|---|
| Height : | 106 mm |
| Width : | 108 mm |
Pressure
| Diff Left Side : | 0.6-4 Bar |
|---|---|
| Diff Right Side : | 2 Bar |
| Regulating Left Side : | -0.3 - 7 Bar |
| Regulating Right Side : | 7 - 31 Bar |
Temperature
| Max Ambient Temperature : | 55 °C |
|---|---|
| Min Ambient Temperature : | -40 °C |
Product information
Freddox Pressure switch offer a reliable compact electro-mechanical solution to operate safety as control functions on Refrigeration installation up to 3HP. They can be use for any pressure management, as for Fan control, Solenoid valves management or Compressor management , The Freddox pressure switches are equipped with SPDT contacts for an easier wiring and with standard male fittings for a faster connection.
| File name | Extension | Size |
|---|---|---|
| Brochures | 720.64 KB |
