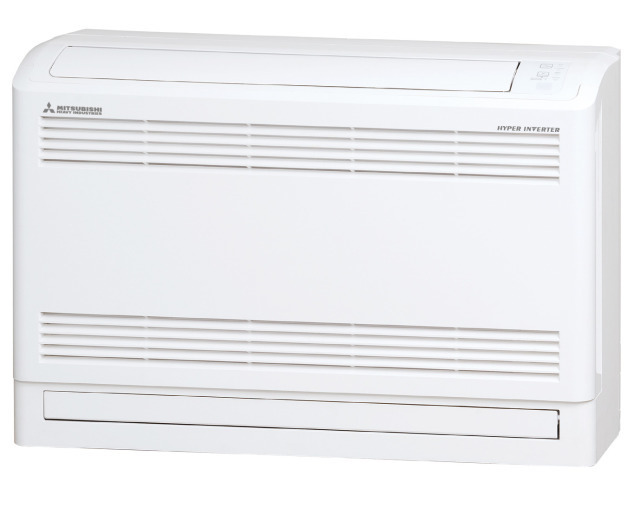

SRF50ZSXW Floor Standing Console 5.0kw R32 Hyper Inverter - 1ph.
Product code:
AC3215/I
Manufacturer code
SRF50ZSX-W
This product contains refrigerant.
General Information
| Product Group : | Floor Console |
|---|---|
| Colour : | White |
| Model Number : | SRF50ZSXW |
| Mounting Details : | Floor |
| Remote Control Provided : | Yes |
Air Volume/Air Flow
| Air Flow : | 12 m³/min |
|---|
Capacity
| Cooling Capacity : | 5 kW |
|---|---|
| Heating Capacity : | 6 kW |
| Nominal Cooling Capacity : | 5 kW |
| Nominal Heating Capacity : | 5.8 kW |
Connections
| Connection Size : | 1/4 in |
|---|---|
| Connection Size 2 : | 1/2 in |
Electrical
| Fuse Protection : | 16 A |
|---|---|
| Power Supply : | 220-240/1/50-60 V/Ph/Hz |
Energy Efficiency/Performance
| Energy Label : | A++ |
|---|---|
| Energy Label (Cooling) : | A++ |
| Energy Label (Heating) : | A++ |
| SCOP : | 4.6 |
| SEER : | 7.5 |
Measurements
| Depth : | 238 mm |
|---|---|
| Dimension : | 600x860x238 mm |
| Height : | 600 mm |
| Weight : | 19 kg |
| Width : | 860 mm |
Pipes
| Max Piping Length : | 30 m |
|---|---|
| Pipe Diameter : | 1/4-1/2 in |
Refrigerant
| Refrigerant : | R32, R410A |
|---|---|
| Refrigerant Charge : | 1.3 kg |
Sound Power/Pressure
| Sound Power Level : | 58 dB(A) |
|---|---|
| Sound Pressure Level : | 46 dB(A) |
Product information
SRF floor console provides a quiet and comfortable air comfort with both underfloor heating in winter and coolness in summer thanks to two selectable exhausts, along the floor and diagonally upwards. The upper air deflector can be set right/left and via remote control up/down in different steps or automatically oscillating In addition, the SRF has intelligent regulation for optimal comfort with indication of active air deflector on the unit's display.
Wireless remote control included for setting the timer, quiet operation, maintenance heat, etc.
Wireless remote control included for setting the timer, quiet operation, maintenance heat, etc.
