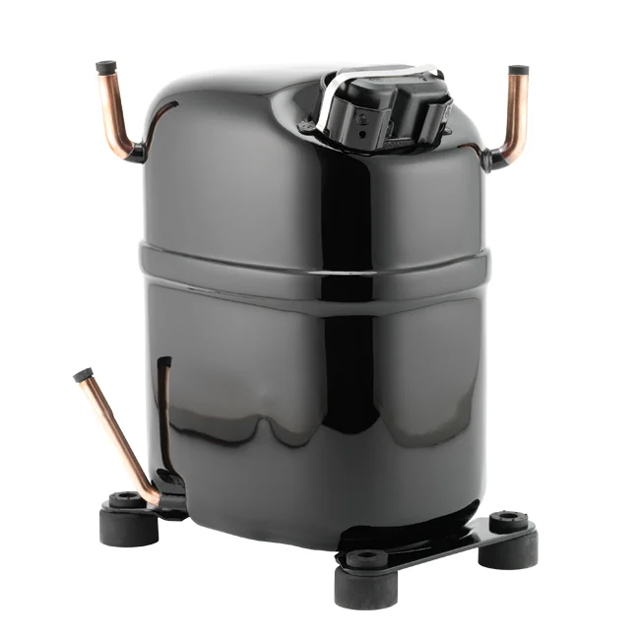

CAJ4461Y Compressor R134A 1PHV/T CSIR
Product code:
C0550
Manufacturer code
AJ4YB2JF700A06
General Information
| Product Group : | Hermetic |
|---|---|
| Application : | MBP |
| Cylinder Volume : | 18.3 cm³ |
| Mounting Details : | 203.2x122.2 |
Additional Info
| Additional Info : | supplied with valve (not mounted) on suction and solder tube on discharge |
|---|---|
| Crankcase Heater Provided : | No |
| Suction Valve Provided : | Yes |
Capacity R134a
| R134a Capacity -5°C : | 0.92 kW |
|---|---|
| R134a Capacity -10°C : | 0.7 kW |
| R134a Capacity 0°C : | 1.2 kW |
Capacity R513A
| R513A Capacity -5°C : | 0.96 kW |
|---|---|
| R513A Capacity -10°C : | 0.74 kW |
| R513A Capacity 0°C : | 1.23 kW |
Compressor
| Direct Expansion Mode : | Capillary/Thermostatic |
|---|---|
| Displacement : | 18.3 m³/h |
| Power Supply Compressor : | 240/1/50 V/Ph/Hz |
Connections
| Connection Type : | Tube |
|---|---|
| Discharge Connection Size : | 1/4 in |
| Discharge Line Connection Type : | Tube |
| Suction Connection Size : | 1/2 in |
| Suction Line Connection : | 1/2 in |
| Suction Line Connection Type : | Rotolock |
Cooling Capacity R134a
| R134a Cooling Capacity Rated -10°C : | 0.70 kW |
|---|
Electrical
| Max Current : | 5.8 A |
|---|---|
| Power Supply : | 240/1/50 V/Ph/Hz |
Measurements
| Height : | 249 mm |
|---|---|
| Length : | 275 mm |
| Net Weight : | 18.4 kg |
| Weight : | 18.4 kg |
| Width : | 195 mm |
Motor
| Motor Type : | CSIR |
|---|
Oil
| Oil Charge : | 0.48 dm³ |
|---|---|
| Oil Quantity : | 0.48 dm³ |
Power Input R134a
| R134a Power Input -10°C : | 0.40 kW |
|---|
Power Input R513A
| R513A Power Input -10°C : | 0.50 kW |
|---|
Refrigerant
| Refrigerant : | R134a, R513A |
|---|
Starting Device
| Starting Device Mode : | CSIR |
|---|---|
| Starting Device Provided : | Yes |
Valves
| Expansion Device : | C-V |
|---|
Product information
Compressor CAJ4461Y
