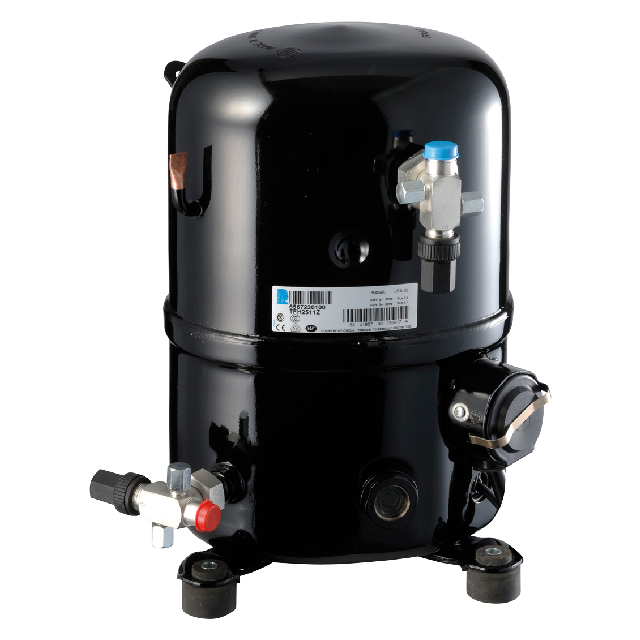

Tecumseh TFH4525Y R134a 3 Phase Compressor 2 HP
Product code:
C0596
Manufacturer code
2566830126
General Information
| Product Group : | Hermetic |
|---|---|
| Application : | HBP |
| Model Number : | 2566830126 |
Additional Info
| Family : | TFH |
|---|
Capacity R134a
| R134a Capacity -5°C : | 3828 W |
|---|
Capacity R513A
| R513A Capacity -5°C : | 4.021 kW |
|---|
Compressor
| Displacement : | 74.25 cm³ |
|---|---|
| Power Supply Compressor : | 400/3/50 V/Ph/Hz |
Connections
| Discharge Connection Height : | 12.7 mm |
|---|---|
| Discharge Line Connection : | 1/2 in, 12.7 mm |
| Suction Connection Height : | 15.9 mm |
| Suction Line Connection : | 5/8 in, 15.9 mm |
Electrical
| LRA : | 25 A |
|---|---|
| Max Current : | 6.7 A |
| Phase : | 3 |
| Power Supply : | 380-400/3/50 |
| RLA : | 6.7 A |
| Voltage : | 380 V |
Measurements
| Height : | 354 mm |
|---|---|
| Weight : | 31.032 kg |
| Width : | 246 mm |
Oil
| Oil : | POE 32 |
|---|---|
| Oil Charge : | 1330 cm³ |
| Oil Type : | POE |
Refrigerant
| Refrigerant : | R134a |
|---|
