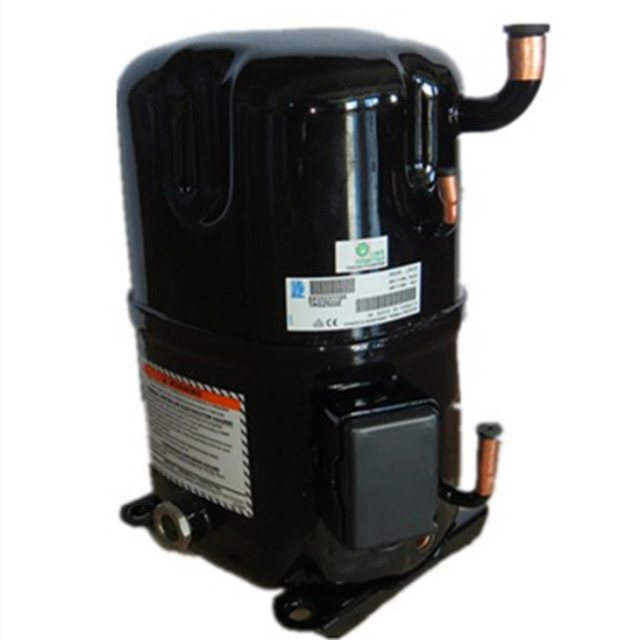

Tecumseh TFH4540Z R404a 3 Phase Compressor 3 HP
Product code:
C7058
Manufacturer code
2565630126
General Information
| Product Group : | Hermetic |
|---|---|
| Application : | HBP |
| Model Number : | 2565630126 |
Additional Info
| Family : | TFH |
|---|
Capacity R404A
| R404A Capacity -5°C : | 6437 W |
|---|
Capacity R448A/449A
| R448A/449A Capacity -5°C : | 6086 W |
|---|
Compressor
| Displacement : | 74.25 cm³ |
|---|---|
| Power Supply Compressor : | 400/3/50 V/Ph/Hz |
Connections
| Discharge Connection Height : | 12.7 mm |
|---|---|
| Discharge Connection Size : | 1/2 in |
| Discharge Line Connection : | 1/2 in, 19.7 mm |
| Suction Connection Height : | 22.2 mm |
| Suction Line Connection : | 7/8 in, 22.2 mm |
Electrical
| LRA : | 46 A |
|---|---|
| Max Current : | 9.20 A |
| Power Supply : | 380-400/3/50 |
| RLA : | 9.2 A |
| Voltage : | 380 V |
Measurements
| Height : | 370 mm |
|---|---|
| Weight : | 32.65 kg |
| Width : | 246 mm |
Oil
| Oil : | POE 32 |
|---|---|
| Oil Charge : | 1330 cm³ |
| Oil Type : | POE |
Refrigerant
| Refrigerant : | R404A |
|---|
