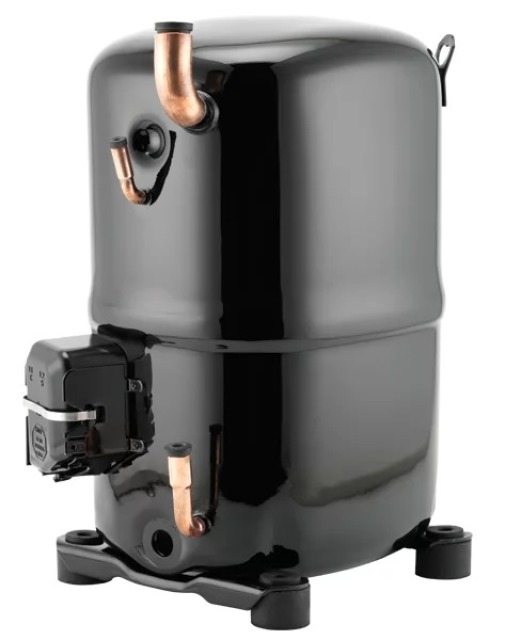

TAG4573Z Compressor R404A 3PH Valve / Valve HBP
Product code:
C7082
Manufacturer code
2836230102
| Product Group : | Hermetic |
|---|
General Information
| Product Group : | Hermetic |
|---|---|
| Application : | HBP |
| Model Number : | 2836230102 |
Capacity R404A
| R404A Capacity -5°C : | 11.508 kW |
|---|
Capacity R448A/449A
| R448A/449A Capacity -5°C : | 10.879 kW |
|---|
Compressor
| Displacement : | 135 cm³ |
|---|---|
| Power Supply Compressor : | 400/3/50 V/Ph/Hz |
Connections
| Discharge Connection Height : | 159 mm |
|---|---|
| Discharge Line Connection : | 5/8 in, 19.9 mm |
| Suction Connection Height : | 28.6 mm |
| Suction Line Connection : | 1 1/8 in, 28.6 mm |
Electrical
| LRA : | 61 A |
|---|---|
| Max Current : | 19.0 A |
| Power Supply : | 380-400/3/50 |
| RLA : | 24.5 A |
| Voltage : | 380 V |
Measurements
| Height : | 393 mm |
|---|---|
| Net Weight : | 49 kg |
| Weight : | 48.5 kg |
| Width : | 261 mm |
Oil
| Oil Charge : | 1760 cm³ |
|---|---|
| Oil Type : | POE |
Refrigerant
| Refrigerant : | R404A |
|---|
