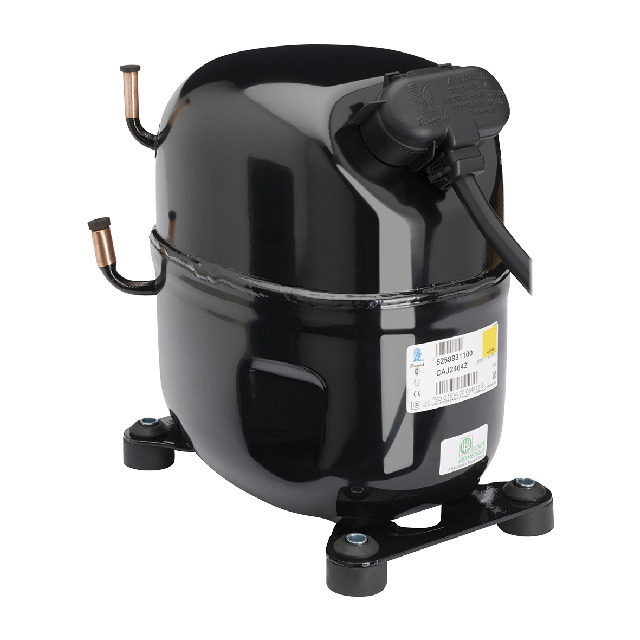

UNITE CAJ4517Z MT R404A COMPRESSOR
Product code:
C7036
Manufacturer code
2266830170
| Product Group : | Hermetic |
|---|
General Information
| Product Group : | Hermetic |
|---|---|
| Application : | R404a Medium Back Pressure |
Additional Info
| Family : | CAJ |
|---|
Capacity R404A
| R404A Capacity -5°C : | 2552 W |
|---|
Capacity R448A/449A
| R448A/449A Capacity -5°C : | 2412 W |
|---|
Compressor
| Auxiliary Winding Resistance (Start winding) For Single Phase Compressors : | 6.1 Ohm |
|---|---|
| Displacement : | 25.9 cc |
| Main Winding Resistance For Single Phase Compressors : | 1.1 Ohm |
| Technique : | CSR |
Connections
| Discharge Connection Size : | 3/8 in |
|---|---|
| Suction Connection Size : | 5/8 in |
Electrical
| LRA : | 51 A |
|---|---|
| Phase : | 1 |
| Power Supply : | 240 V |
| RLA : | 12.7 A |
Measurements
| Height : | 280 mm |
|---|---|
| Net Weight : | 24 kg |
Oil
| Oil : | POE 32 |
|---|---|
| Oil Charge : | 782 cc |
Performance
| Nominal HP : | 1-1/4 HP |
|---|
