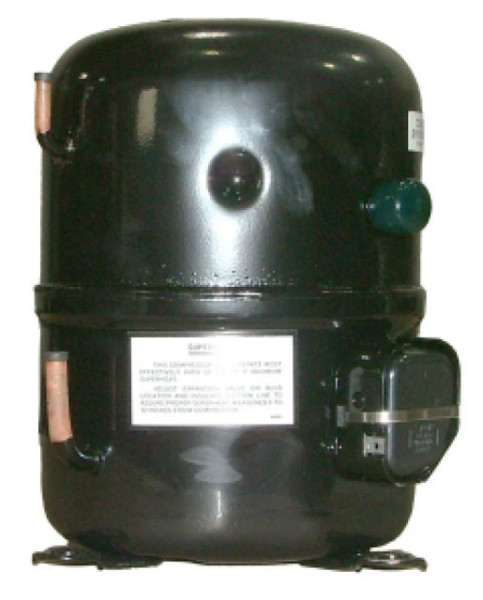

TFH2480Z Low Temp Commercial Compressor 3 Ph
Product code:
C7120
Manufacturer code
2567030126
| Product Group : | Hermetic |
|---|
General Information
| Product Group : | Hermetic |
|---|---|
| Application : | LBP |
| Model Number : | 2567030126 |
Capacity R404A
| R404A Capacity -10°C : | 3725 W |
|---|---|
| R404A Capacity -25°C : | 1865 W |
Capacity R449A
| R449A Capacity -10°C : | 3547 kW |
|---|
Compressor
| Displacement : | 53.2 cm³ |
|---|---|
| Power Supply Compressor : | 400/3/50 V/Ph/Hz |
Connections
| Discharge Line Connection : | 1/2 in, 12.7 mm |
|---|---|
| Suction Line Connection : | 5/8 in, 15.9 mm |
Cooling Capacity R449A
| R449A Cooling Capacity Rated -10°C : | 3547 W |
|---|
Electrical
| LRA : | 25 A |
|---|---|
| Power Supply : | 380-400/3/50 |
Measurements
| Height : | 354 mm |
|---|---|
| Weight : | 32.542 kg |
Oil
| Oil Charge : | 1760 cm³ |
|---|---|
| Oil Type : | POE |
Refrigerant
| Refrigerant : | R404A, R449A |
|---|
