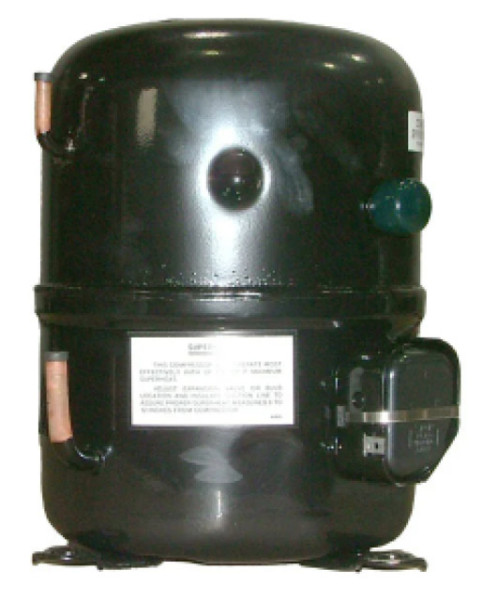

Tecumseh TFH4531Z Compressor R404A 3PH Valve / Valve HBP 2.1/2HP 56.65cm3
Product code:
C7054
Manufacturer code
2565430126
| Product Group : | Hermetic |
|---|
General Information
| Product Group : | Hermetic |
|---|---|
| Application : | HBP |
| Model Number : | 2565430126 |
Compressor
| Displacement : | 56.65 cm³ |
|---|---|
| Power Supply Compressor : | 400/3/50 V/Ph/Hz |
Connections
| Discharge Connection Height : | 12.7 mm |
|---|---|
| Discharge Line Connection : | 1/2 in, 12.7 mm |
| Suction Connection Height : | 22.2 mm |
| Suction Line Connection : | 7/8 in, 22.2 mm |
Electrical
| LRA : | 32 A |
|---|---|
| Max Current : | 8.20 A |
| Power Supply : | 380-400/3/50 |
| Voltage : | 380 V |
Measurements
| Height : | 370 mm |
|---|---|
| Weight : | 31.55 kg |
| Width : | 246 mm |
Oil
| Oil Charge : | 1760 cm³ |
|---|---|
| Oil Type : | POE |
Refrigerant
| Refrigerant : | R404A |
|---|
Product information
