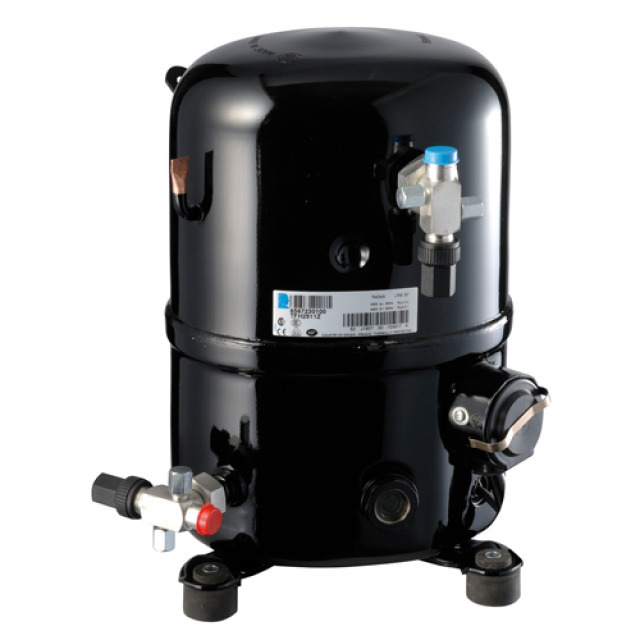

FH2480Z Compressor R404A/R452A 1PH Valve / Valve CSIR LBP
Product code:
C0599
Manufacturer code
2527030128
| Product Group : | Hermetic |
|---|
General Information
| Product Group : | Hermetic |
|---|---|
| Application : | LBP |
| Model Number : | 2527030128 |
| Motor Type : | 3PH |
Additional Info
| Family : | FH |
|---|
Capacity
| Capacity at -10°C : | 4.42 kW |
|---|---|
| Capacity at -35°C : | 0.74 kW |
Compressor
| Displacement : | 53.2 cm³ |
|---|---|
| Power Supply Compressor : | 220-240/1/50 V/Ph/Hz |
Connections
| Discharge Line Connection : | 1/2 in, 12.7 mm |
|---|---|
| Suction Line Connection : | 5/8 in, 15.9 mm |
Cooling Capacity R404A
| R404A Cooling Capacity Rated -10°C : | 3.939 kW |
|---|
Electrical
| LRA : | 68 A |
|---|---|
| Max Current : | 16.0 A |
| Max Power Input : | 1.7 kW |
| Phase : | 3 |
| Power Supply : | 380-420/3/50 V/Ph/Hz |
| Voltage : | 380-420 V |
Measurements
| Height : | 354 mm |
|---|---|
| Length : | 246 mm |
| Weight : | 37.241 kg |
| Width : | 200 mm |
Nominal Capacity R404A
| R404A Nominal Capacity -25°C : | 1912 W |
|---|
Oil
| Oil Charge : | 1330 cm³ |
|---|---|
| Oil Type : | POE |
Performance
| Horsepower : | 2-1/2 HP |
|---|
Refrigerant
| Refrigerant : | R404A, R452A |
|---|
Temperature
| Temperature Range : | -40 °C ~-12.2 °C |
|---|
Product information
FH2480ZFZ
