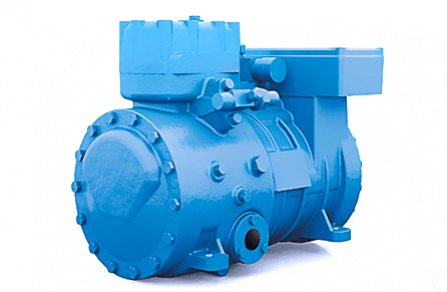

D3-13.1Y Compressor 3HP 3Ph
Product code:
C5061
Manufacturer code
D3-13.1Y 3PH
General Information
| Product Group : | Semi Hermetic |
|---|
Capacity R404A
| R404A Capacity -5°C : | 7.94 kW |
|---|
Compressor
| Displacement : | 13.2 m³/h |
|---|
Connections
| Discharge Line Connection : | 5/8 in |
|---|---|
| Suction Line Connection : | 1 1/8 in |
Electrical
| Max Current : | 15.3 A |
|---|
Measurements
| Height : | 317 mm |
|---|---|
| Length : | 374 mm |
| Weight : | 49 kg |
| Width : | 242 mm |
Nominal Capacity R134a
| R134a Nominal Capacity -5°C : | 4750 W |
|---|
Nominal Capacity R404A
| R404A Nominal Capacity -25°C : | 3180 W |
|---|
Oil
| Oil Charge : | 1.2 L |
|---|---|
| Oil Type : | POE32 |
Performance
| Nominal HP : | 3 HP |
|---|
Product information
| File name | Extension | Size |
|---|---|---|
| Brochures | 7.01 MB |
