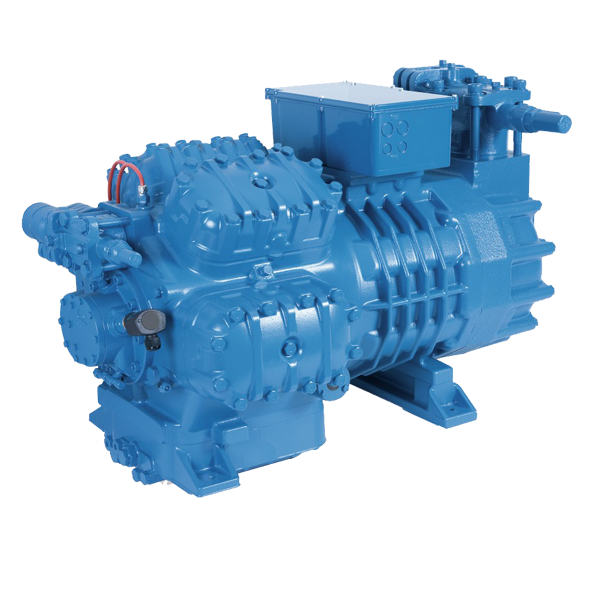

W75-240Y PWS 400V-3-50Hz
![Frascold](https://www.realcold.co.nz/media/ce/52/d2/1709142246/LOGO-Frascold.jpg)
Product code:
C5239
Manufacturer code
W75-240Y
General Information
Product Group : | Semi Hermetic |
---|---|
Number Of Cylinders : | 8 |
Compressor
Displacement : | 239.0 m³/h |
---|
Connections
Discharge Line Connection : | 2 1/8 in |
---|---|
Suction Line Connection : | 3 1/8 in |
Electrical
LRA : | 417 A |
---|---|
Max Current : | 115.3 A |
Voltage : | 380-420/3/50 V/Ph/Hz |
Logistical Information
Country Of Origin : | ITA |
---|
Measurements
Height : | 588 mm |
---|---|
Length : | 864 mm |
Weight : | 328 kg |
Width : | 519 mm |
Nominal Capacity R134a
R134a Nominal Capacity -5°C : | 88940 W |
---|
Nominal Capacity R404A
R404A Nominal Capacity -25°C : | 58610 W |
---|
Oil
Oil Charge : | 7.7 L |
---|---|
Oil Type : | POE68 |
Performance
Nominal HP : | 75 HP |
---|
Product information
File name | Extension | Size |
---|---|---|
Brochures | 7.01 MB |
