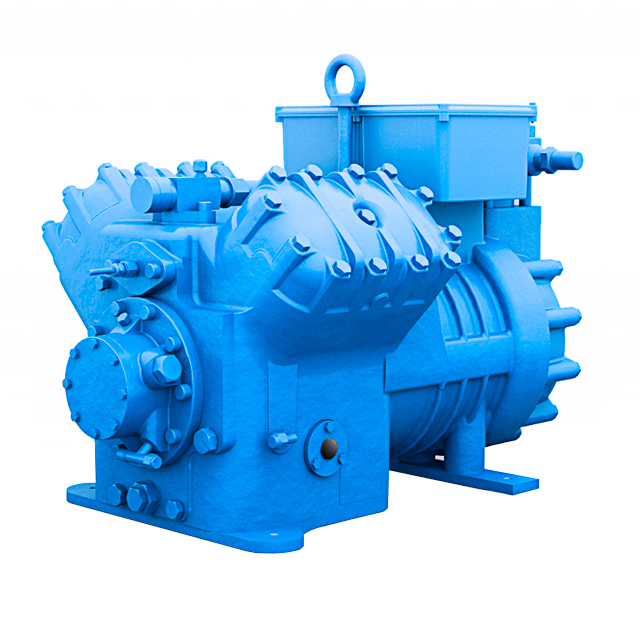

V15-59 COMPRESSOR 15HP
Product code:
C5155
Manufacturer code
V15-59Y
General Information
| Product Group : | Semi Hermetic |
|---|---|
| Cylinder Volume : | 58.5 m3/h L |
Connections
| Discharge Line Connection : | 1 1/8 in |
|---|---|
| Suction Line Connection : | 1 5/8 in |
Electrical
| Max Current : | 31.1 A |
|---|---|
| Voltage : | 380-420/3/50 V/Ph/Hz |
Measurements
| Height : | 463 mm |
|---|---|
| Length : | 672 mm |
| Weight : | 170 kg |
| Width : | 460 mm |
Nominal Capacity R134a
| R134a Nominal Capacity -5°C : | 22890 W |
|---|
Nominal Capacity R404A
| R404A Nominal Capacity -25°C : | 15660 W |
|---|
Oil
| Oil Charge : | 4 L |
|---|---|
| Oil Type : | POE68 |
Performance
| Nominal HP : | 15 HP |
|---|
